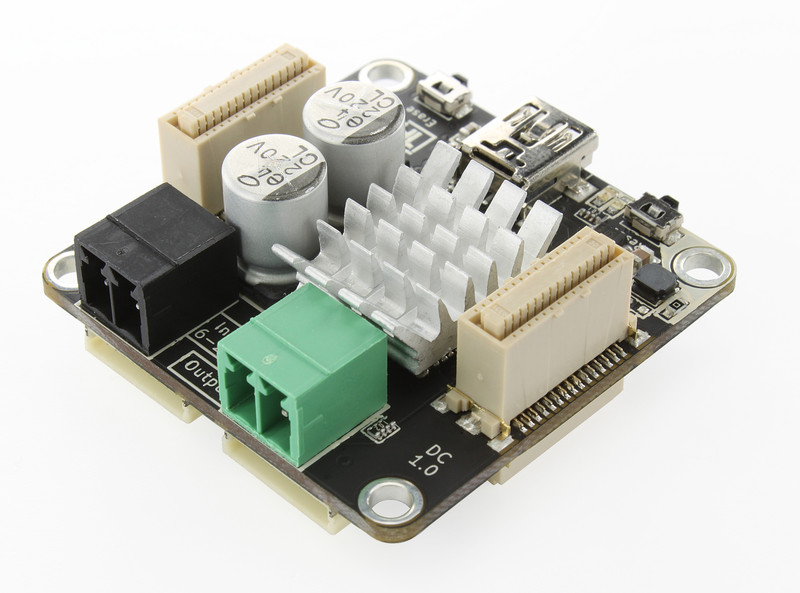

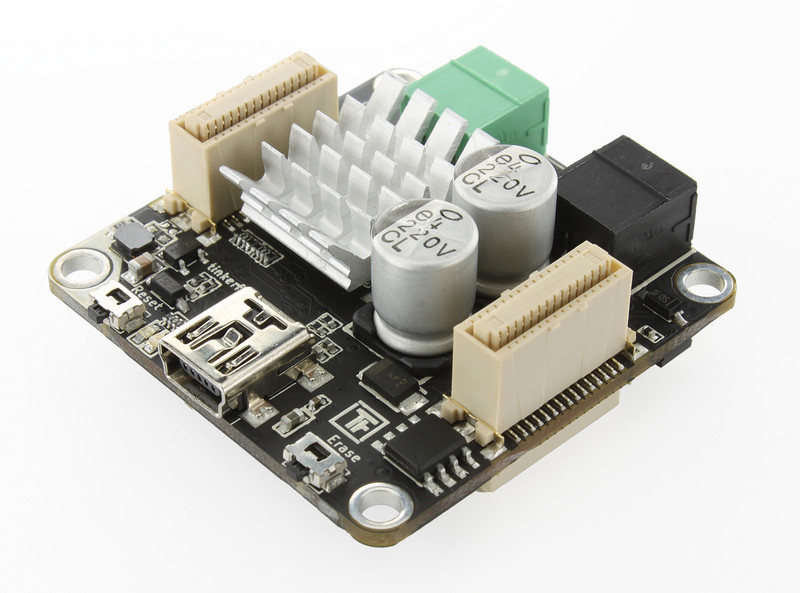

The DC Brick is equipped with a 32-bit ARM microcontroller and is able to control one DC brushed motor bidirectional with max. 28V and 5A (peak). The current consumption and power supply voltage can be measured, velocity and acceleration of the motor can be controlled. In case of overtemperature and overcurrent callbacks are triggered. For battery driven applications an undervoltage callback is user configurable. Additionally, the drive mode can be switched between Drive/Brake and Drive/Coast (see Drive Modes).
It is compatible to other Tinkerforge Bricks and can be used within a stack. Two Bricklet ports can be used to extend the features of this device.
The DC motor can be powered by an external power supply connected directly to the Brick or by the stack internal power supply. If an external power supply is connected the Brick switches automatically to this power supply.
Controlling the device is possible in several ways. You can control it via a PC connection. This connection can be established directly with a USB cable or by other cable based (RS485, Ethernet) or wireless (WIFI) connections via an additional Master Brick with corresponding Master Extension (High Level Concept).
Since the firmware is open source it is possible to program the device directly (On Device Programming). Currently we are not offering an On Device API.
| Property | Value |
|---|---|
| Microcontroller | ATSAM3S2B (128kB Flash, 32kB RAM) |
| Current Consumption | 53mA |
| Maximum Motor Current | Peak: 5A
Continous: > 3A (depends on cooling)
|
| Minimum/Maximum Input Voltage | 6V/28V |
| PWM Frequency | Configurable, 1-20kHz, default 15kHz |
| Velocity | -32767 to 32767, full reverse to full forward, 0=stop |
| Acceleration | 0 to 65535, velocity/s, increment for velocity/s |
| Bricklet Ports | 2 |

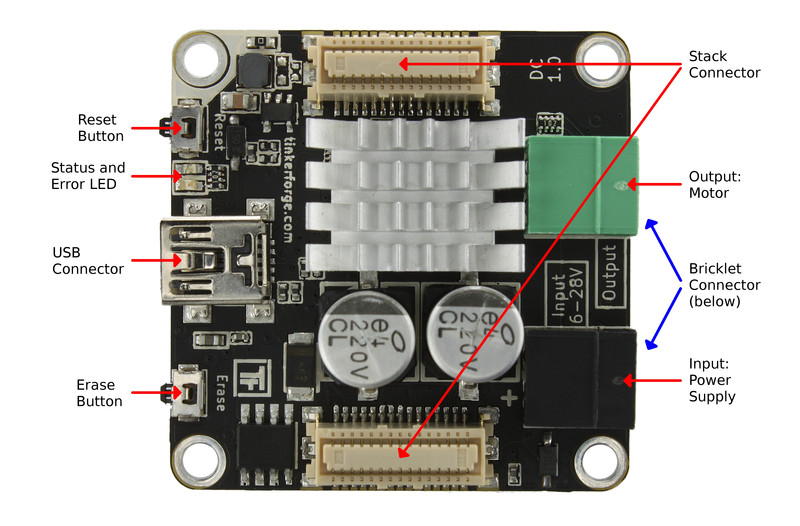

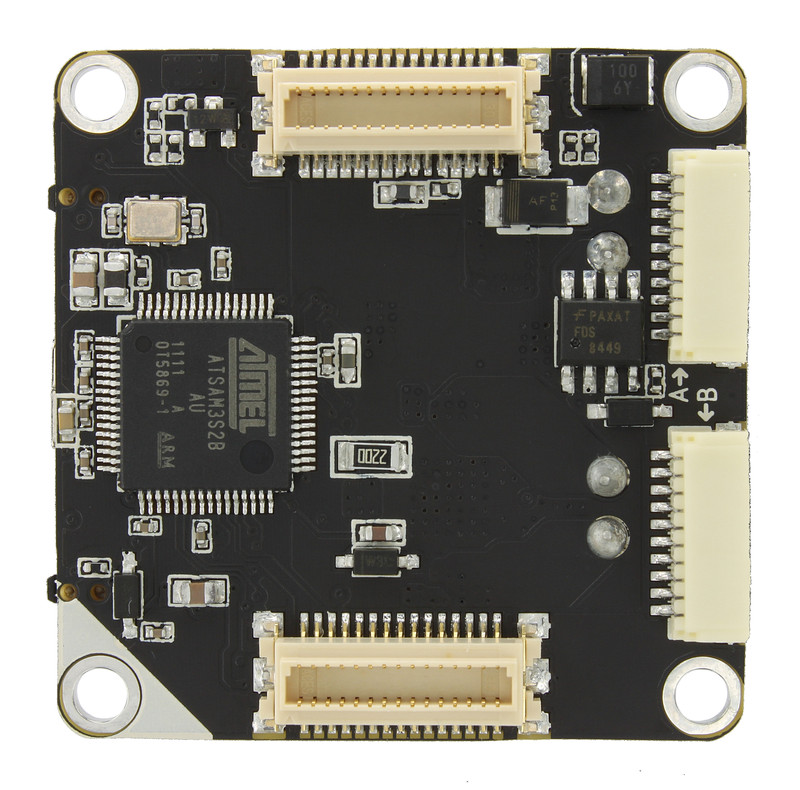

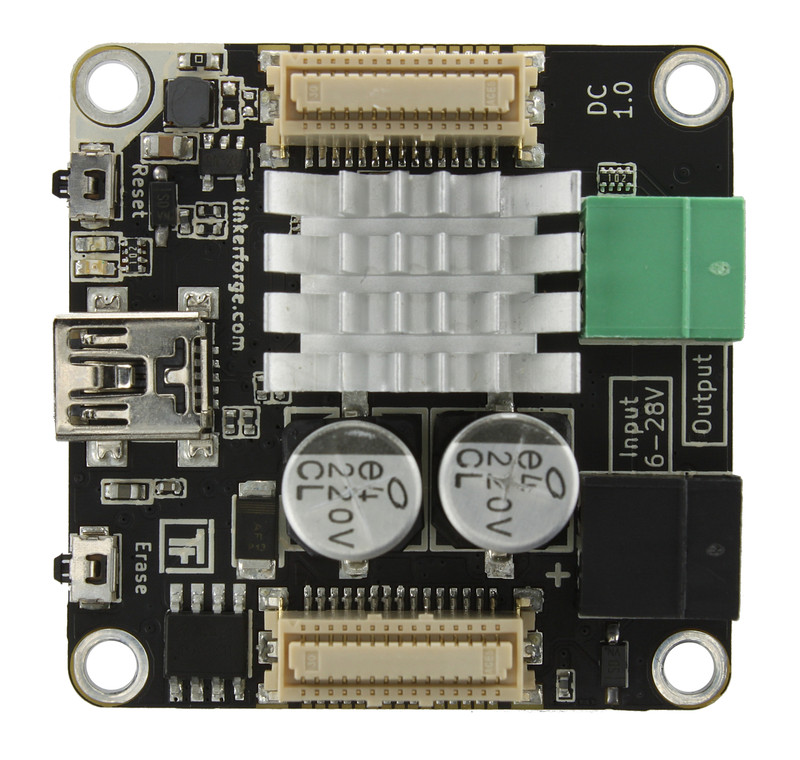

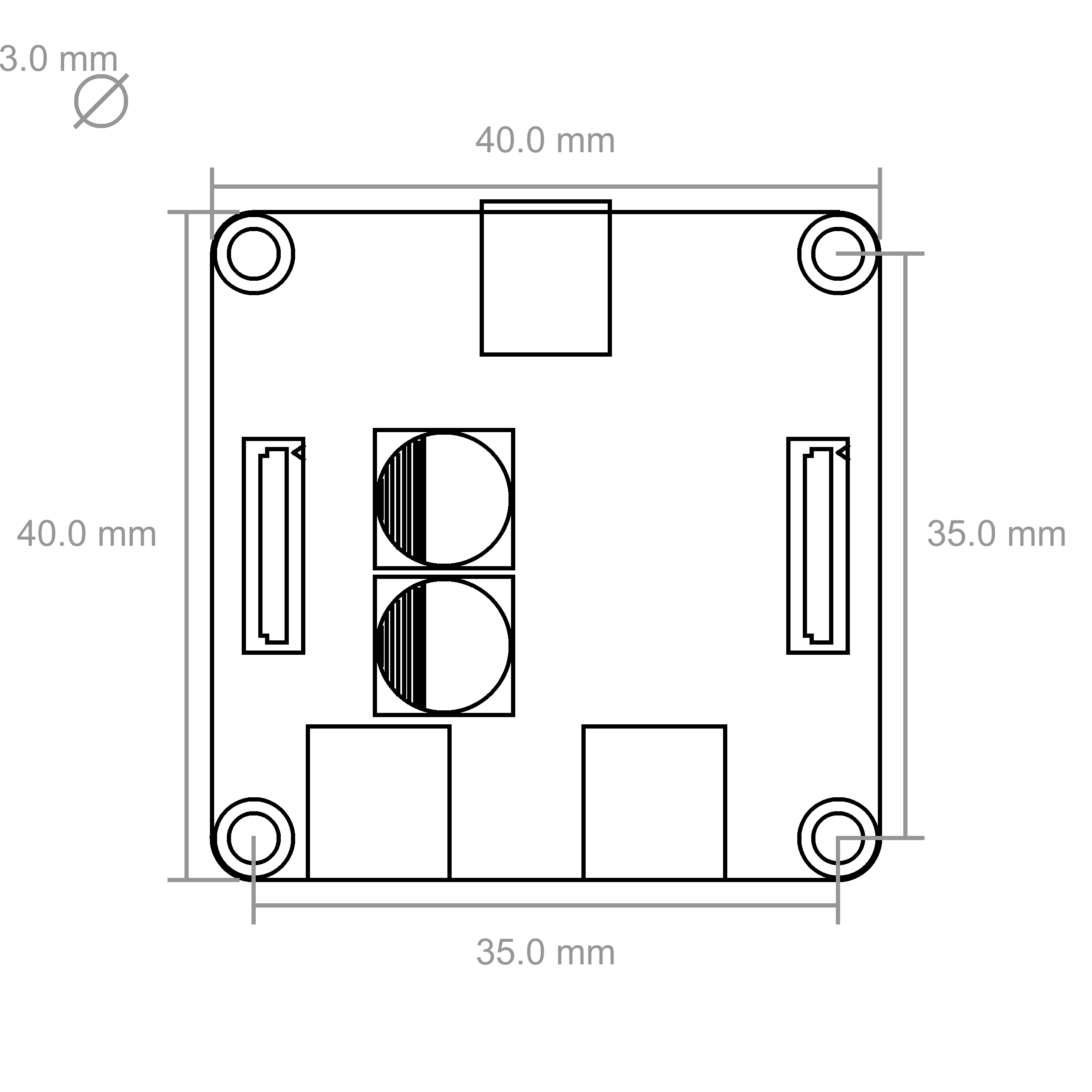

| Dimensions (W x D x H) | 40 x 40 x 17mm (1.57 x 1.57 x 0.67”) |
| Weight | 18g |
To test the DC Brick you need to have the Brick Daemon and the Brick Viewer installed (for installation guides click here and here) and the Brick Viewer has to be connected to the Brick Daemon.

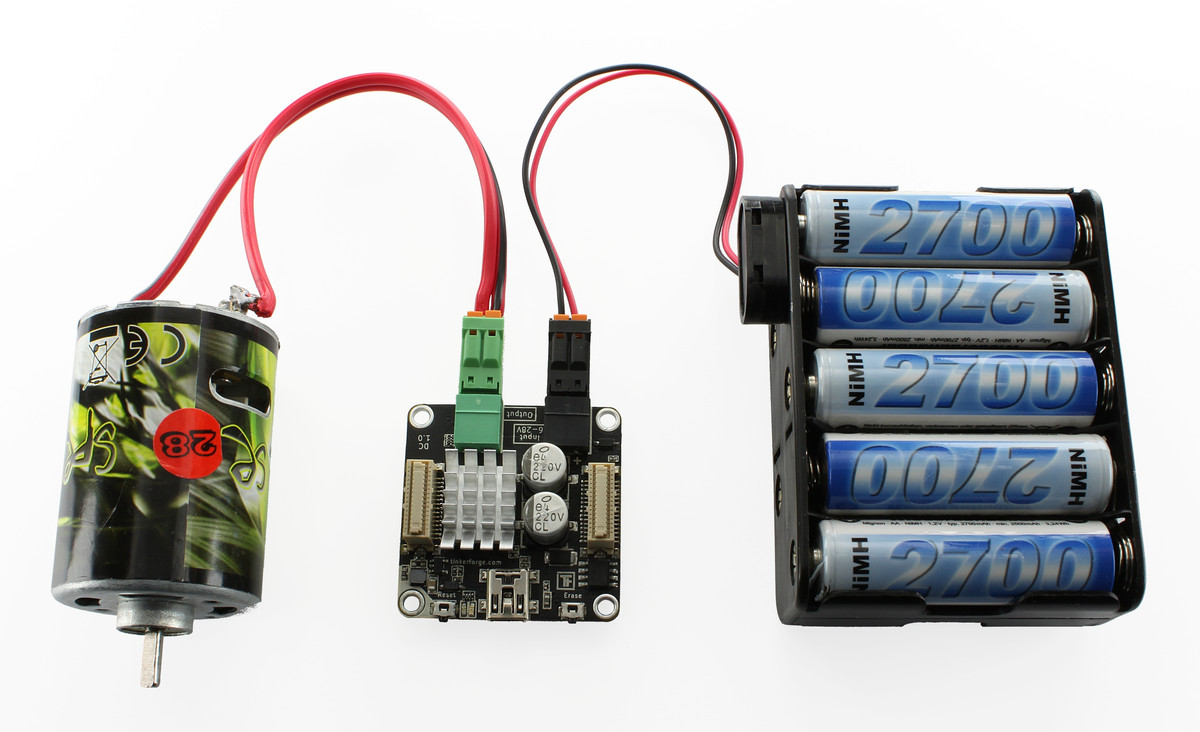

Connect a DC brushed motor to the Brick and a suitable power supply. Your setup should look as shown below.

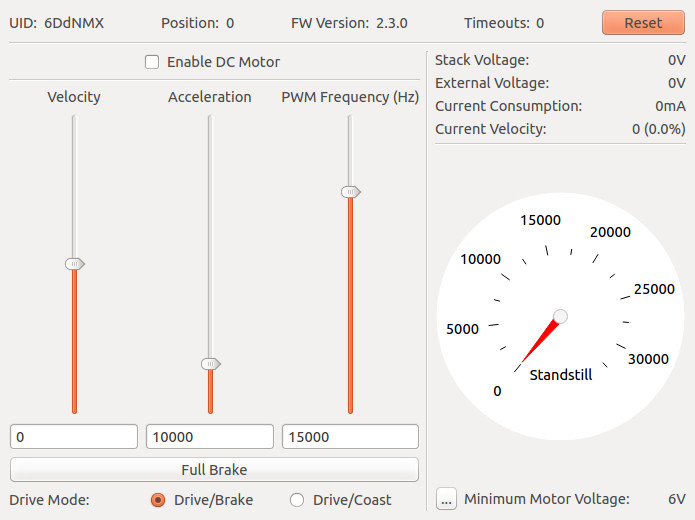

Now connect the Brick to the PC over USB, you should see a new tab named “DC Brick” in the Brick Viewer after a moment. Select this tab.
Before you can test your Brick you need to enable the driver chip by ticking the “Enable” checkbox. You have three sliders to control the velocity (forward and backward), the acceleration and the PWM frequency which is used by the driver chip to control the connected motor.
On the right you see the voltages of the two power sources and the current consumption. Below you find a graphical representation of the velocity of the motor. At the bottom you can configure the minimum motor voltage, which allows for undervoltage callbacks if the voltage is too low.
Below the sliders you can test the “Full Brake” and change the driving modes (see here for more information).
After this test you can go on with writing your own application. See the Programming Interface section for the API of the DC Brick and examples in different programming languages.
The connected motor can be powered through the black on-board power-connector or through a Power Supply in a stack. The Brick switches automatically to the on-board power-connector when a voltage above 1V is measured there.
Warning
Keep in mind that the Brick switches automatically. So e.g. if you have a stack and remove your external battery connected to the Brick it will use the stack power supply. If you then enable the motor it is driver with the voltage supplied by the stack which might be higher then your battery voltage
There are two possible modes of motor controls:
Drive/Brake
In this mode the motor is always either driving or braking, there is no freewheeling possible. A more linear correlation between PWM and velocity is an advantage of this mode. Therefore it is possible to accelerate more precise. Typically motors can be driven with slower velocities in this mode. Disadvantageous is a higher current consumption and a resulting faster heat-up of the driver chip.
Drive/Coast
In this mode the motor is either driving or freewheeling. Advantageous is a lower current consumption and a resulting slower heat-up. The control of the velocity and acceleration is less precise, it can “lag behind”.
The red LED is enabled if the supply voltage is below the minimum voltage (configurable) or the driver chip is in emergency shutdown state.
An emergency shutdown is triggered if either the current consumption is too high (above 5A) or the temperature of the driver chip is too high (above 175°C). These two possibilities are essentially the same, since the temperature will reach this threshold immediately if the motor consumes too much current.
To get the Brick operational again you have to increase the voltage or in the latter case you have to let the driver chip cool down and enable it again.
See High Level Programming Interface for a detailed description.
| Language | API | Examples | Installation |
|---|---|---|---|
| Modbus | API | ||
| TCP/IP | API | ||
| C/C++ | API | Examples | Installation |
| C# | API | Examples | Installation |
| Delphi | API | Examples | Installation |
| Java | API | Examples | Installation |
| PHP | API | Examples | Installation |
| Python | API | Examples | Installation |
| Ruby | API | Examples | Installation |
| VB.NET | API | Examples | Installation |
Note
Coming soon!
An API and documentation for direct on device programming (comparable to Arduino) is planned. You can however already use our firmware as a starting point for your own modifications (C knowledge required).
