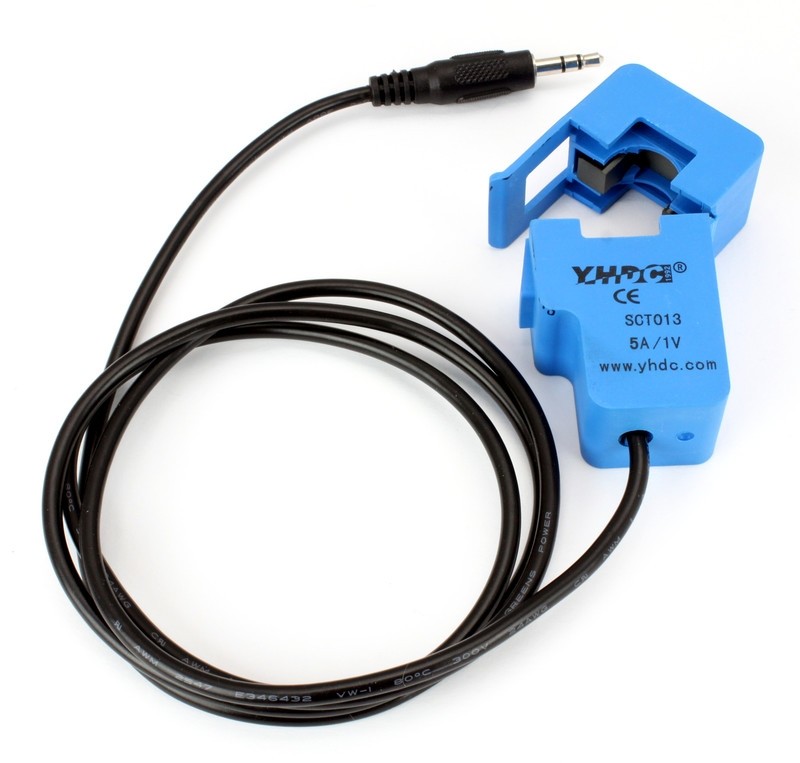

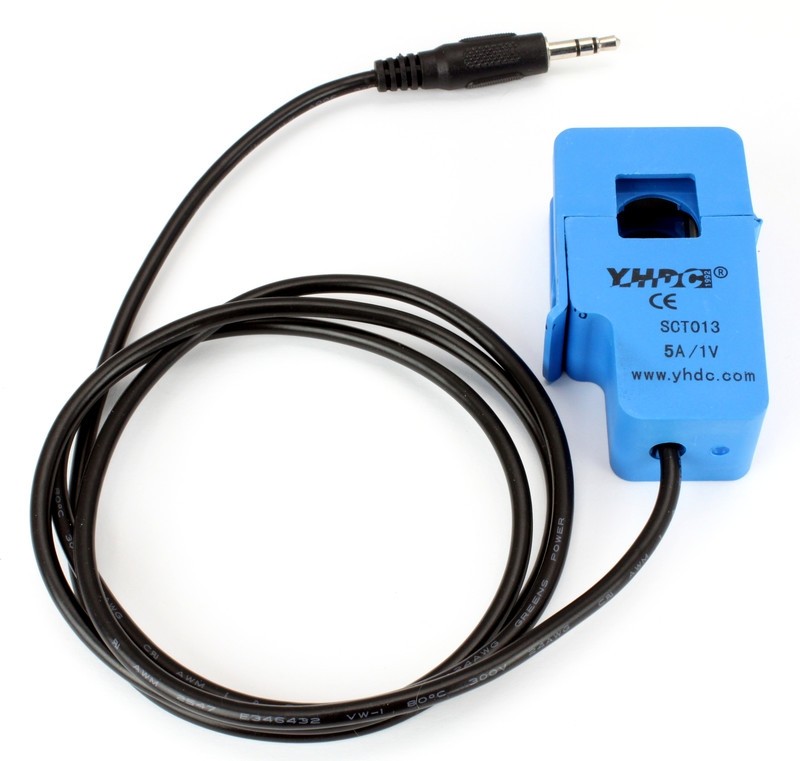

5A:1V current transformer clamp (hinged)

More Views

5A:1V current transformer clamp (hinged)
€9.99
Incl. 19% Tax, excl. Shipping Cost

Availability: In stock

OR
Description

Details

Current transformer clamp with a measuring range of 0A - 5A (AC) and output voltage of 0-1V.

This current transformer is compatible to the Energy Monitor Bricklet.

Technical Specifications

PropertyValue
Model SCT-013-005
Connector 3.5mm audio plug
Max Input Current 5A
Output Voltage 0-1V
Size of Opening 13mm x 13mm
Non-Linearity +- 3%
Working Temperature -25°C - 70°C
