Stepper Motor, Nema 17, 0.43Nm

Stepper Motor, Nema 17, 0.43Nm

More Views

Stepper Motor, Nema 17, 0.43Nm
€24.99
Incl. 19% Tax, excl. Shipping Cost

Availability: In stock

OR
Description

Details

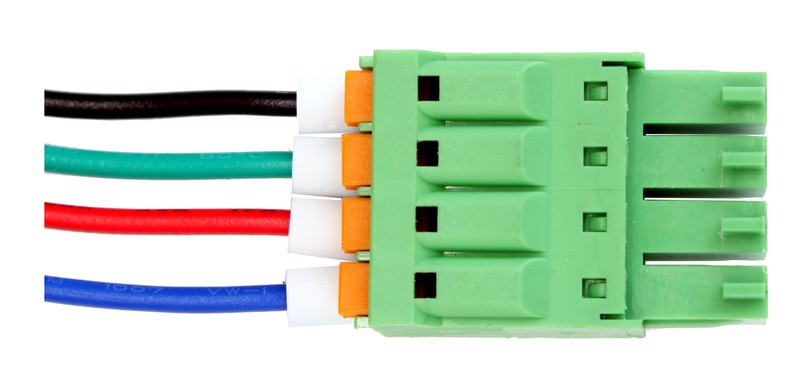

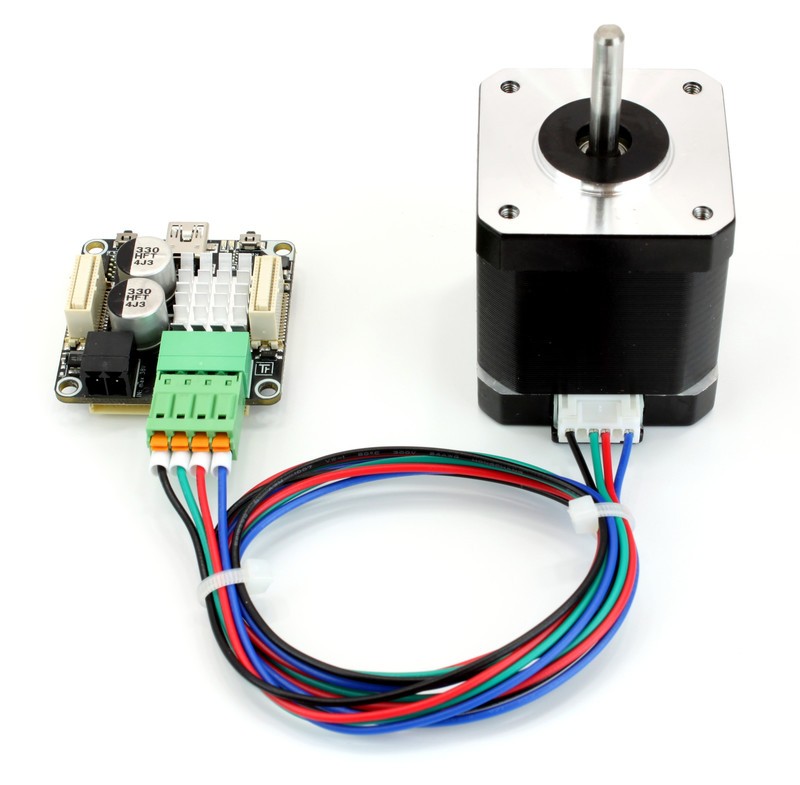

Nema 17 stepper motor with 0.43Nm torque. It can be controlled by the Stepper Brick and Silent Stepper Brick. The detachable cable is included and can be directly connected to the Stepper Brick. The correct way to connect the cable to the Stepper Brick connector can be found in one of the product photos.

The stepper motor is from Osmtec and has the model number 17HS19-0854SX (Datasheet).

Technical Specifications

Property Value
Torque 0.43Nm
Step Angle 1.8°
Voltage 5.3V
Current 0.85A
Resistance per Phase 6.2Ω
Inductance per Phase 11mH
Inertia 82gcm²
Type Bipolar
Shaft diameter 5mm
Size Nema 17
Weight 350g

Comes Packaged With

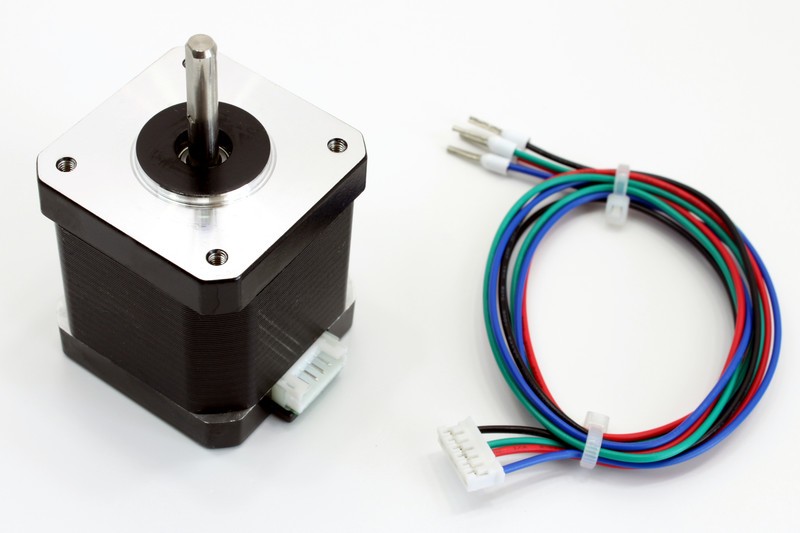

  • Stepper Motor
  • Detachable Cable
