Multi Touch Bricklet

Multi Touch Bricklet


Incl. 19% Tax, excl. Shipping Cost

Availability: In stock

  • Capacitive Touch Sensor
  • Can handle up to 12 electrodes used as touch locations
  • Touch can be detected through a thin layer of glass/plastic/paper
  • Size and placement of touch area can be user defined
  • Can be used to build custom touch panel
Multi Touch Bricklet   +€9.98

* Required Fields



This Bricklet is deprecated. Is has been replaced by the Multi Touch Bricklet 2.0. It is currently sold off with a large discount, but only as long as stock lasts.

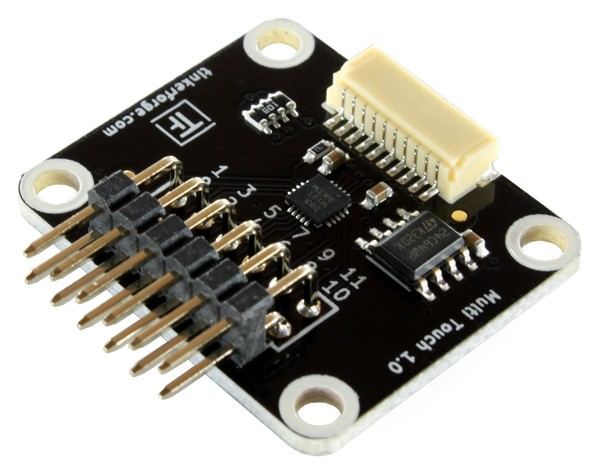

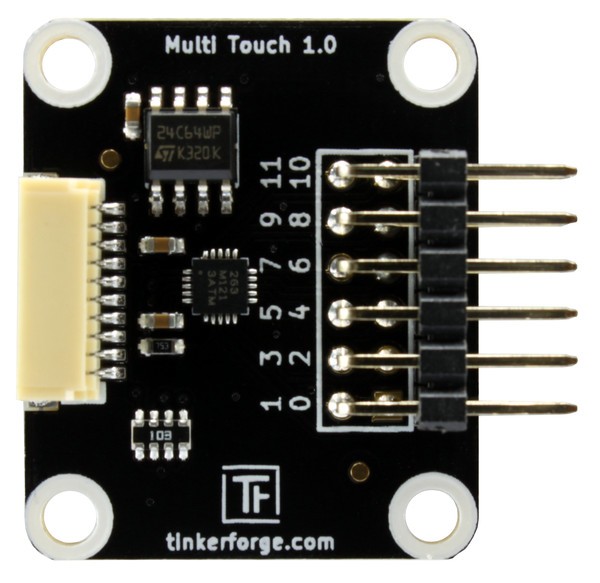

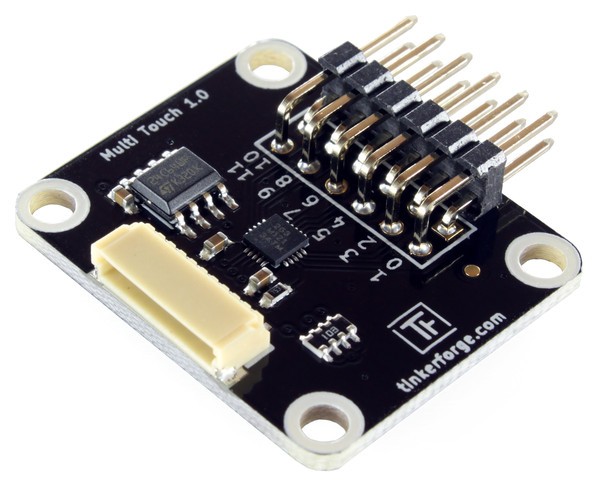

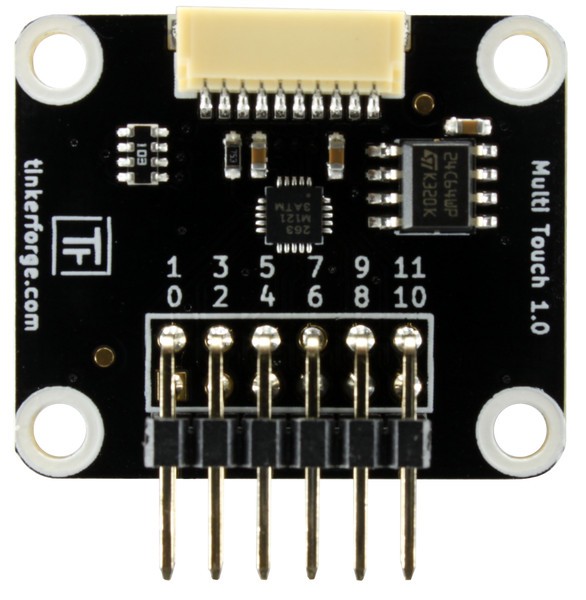

The Multi Touch Bricklet is equipped with the MPR121 capacitive touch sensor. It can be used to extend Bricks to sense touch at 12 different locations.

The thing that is actually touched is called an "electrode". The electrode can be a cable, electrically conductive tape or a copper surface of a circuit board. Electrodes can sense touch through a thin layer of glass, plastic, paper or similar.

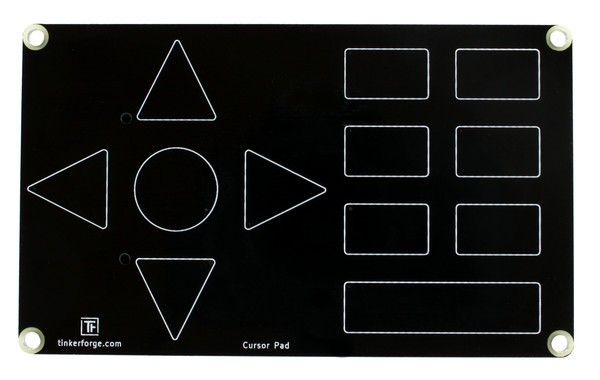

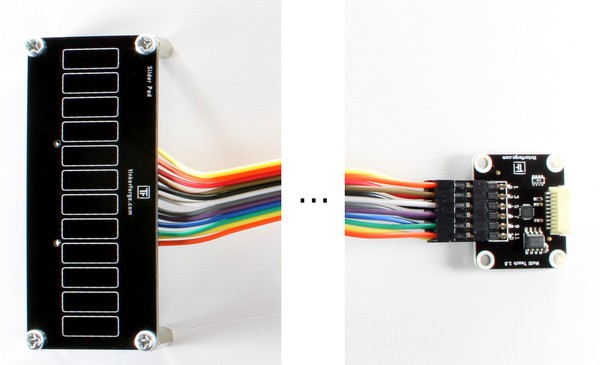

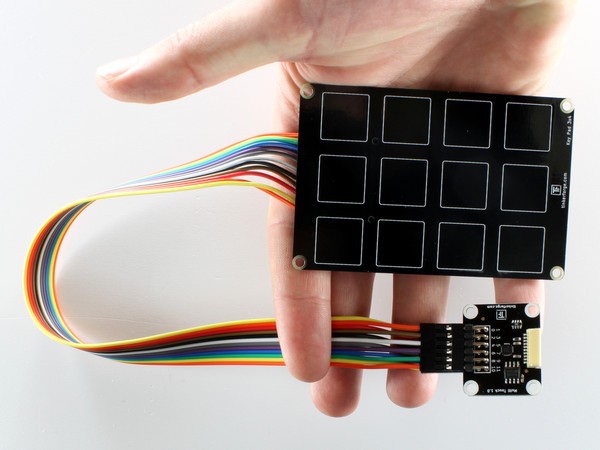

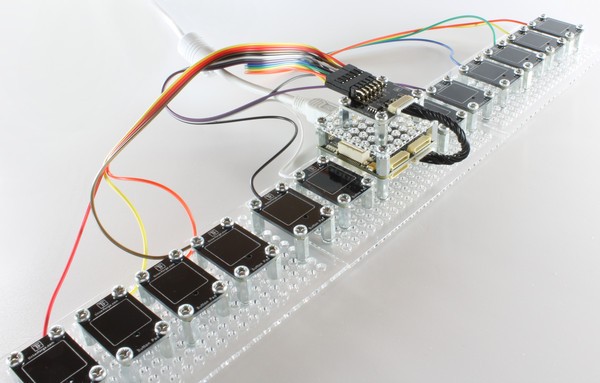

With the Multi Touch Bricklet it is possible to build custom touch panels by gluing a cover onto the electrodes.

Technical Specifications

Sensor MPR121
Current Consumption 1mA
Number of Electrodes 12 + simulated 13th electrode for proximity

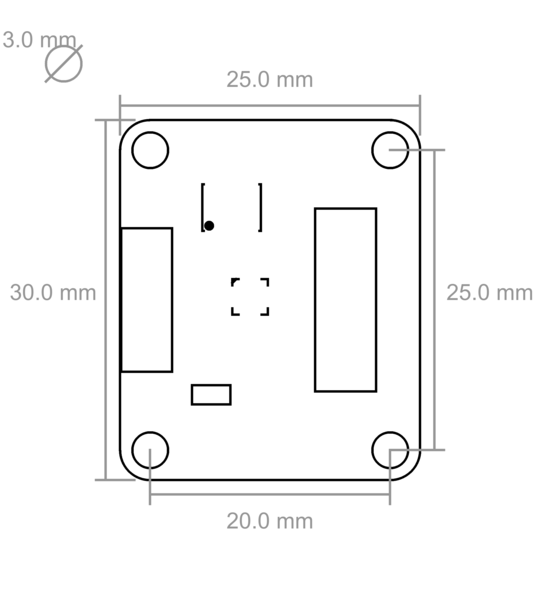

Dimensions (W x D x H) 30 x 25 x 7mm (1.18 x 0.98 x 0.28")
Weight 4g
