Distance IR 10-80cm Bricklet

Distance IR 10-80cm Bricklet


Incl. 19% Tax, excl. Shipping Cost

Availability: In stock

  • Measures distances from 10cm to 80cm with IR light
  • Sensor can be changed
  • Output in 1mm steps (12bit resolution)
Distance IR 10-80cm Bricklet   +€14.99

* Required Fields



This Bricklet is deprecated. Is has been replaced by the Distance IR 10-80 Bricklet 2.0. It is currently sold off with a large discount, but only as long as stock lasts.

The Distance IR Bricklet can be used to extend the features of Bricks by the capability to measure distances. Sharp analog infrared proximity sensors can be attached to the Bricklet. After configuring the attached sensor you can read out the measured distance in millimeters. With configurable events it is possible to react on changing distances without polling.

Infrared sensors with different distance ranges are available in the shop:

Typically these types of sensors are used in robotics to measure distances for mapping or localization purposes. But you can also use this sensors in other applications, such as a finding out if a door is opened or closed.

Technical Specification

Sensor GP2Y0A21YK0F
Current Consumption See sensor datasheet

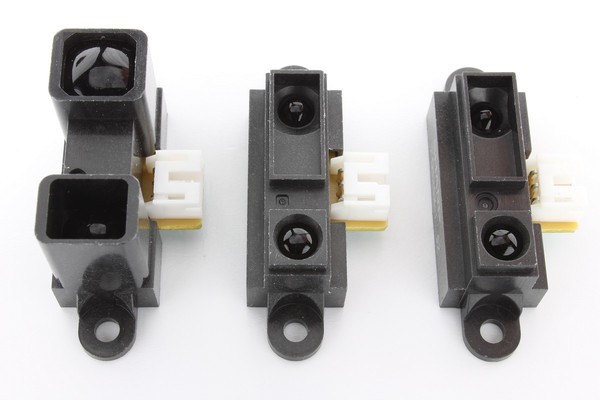

Distance Depends on attached Sharp IR Sensor:
  • GP2Y0A41SK0F: 4cm - 30cm (1.57” - 11.81”)
  • GP2Y0A21YK0F: 10cm - 80cm (3.94” - 31.50”)
  • GP2Y0A02YK0F: 20cm - 150cm (7.87” - 59.06”)
in 1mm steps, 12bit resolution

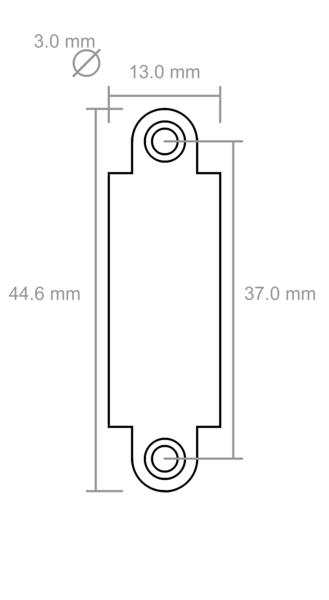

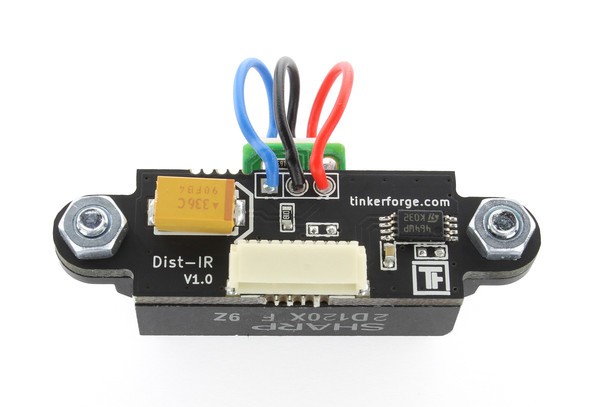

Dimensions (W x D x H) 45 x 13 x 5mm (1.76 x 0.51 x 0.19”)*, fits on backside of sensor
Weight 2g*

* without cable and sensor

Comes Packaged With

  • Distance IR Bricklet
  • GP2Y0A21YK0F Sensor
  • Chosen Bricklet Cable

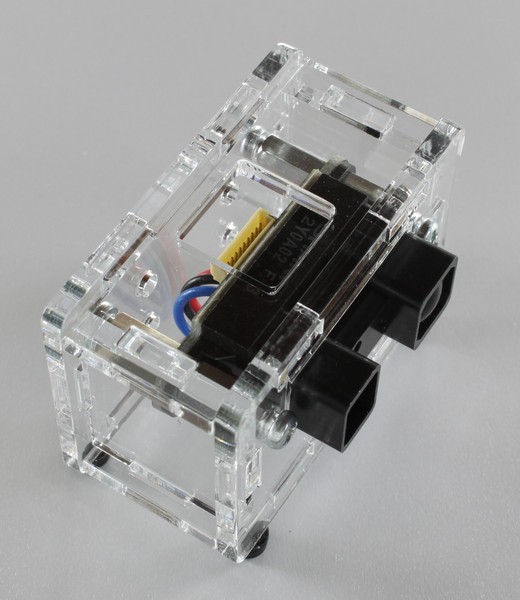

  • Chosen Mounting Kit / Case
