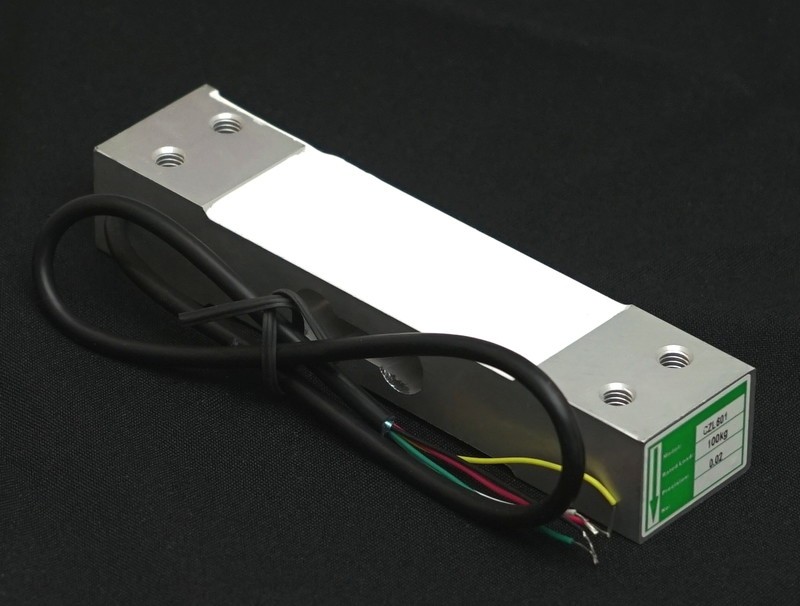

Load Cell 100kg CZL601

More Views

Load Cell 100kg CZL601
€13.98
Incl. 19% Tax, excl. Shipping Cost

Availability: In stock

  • Load Cell
  • 0-100kg Range
  • 0.02%FS Precision
  • Compatible to Load Cell Bricklet
OR
Description

Details

This load cell is compatible to the Load Cell Bricklet 2.0.

Technical Specifications

PropertyValue
Model CZL601-100kg
Measurement Range 0kg to 100kg
Rated Output 2.0±0.2mV/V
Non-Linearity 0.013%FS
Hysteresis 0.016%FS
Repeatability 0.013%FS
Creep 0.02%FS/30min
Temperature Effect on Zero 0.02%FS/10°C
Temperature Effect on Span 0.03%FS/10°C
Zero Balance ±1.5%FS
Input Impedance 405±10Ω
Output Impedance 350±3Ω
Insulation Resistance ≥ 5000MΩ at 50V (DC)
Recommended Excitation Voltage 9V to 12V (DC)
Allowed Excitation Voltage 5V to 18V (DC)
Compensated Temperature Range -10°C to +40°C
Operating Temperature Range -20°C to +55°C
Safe Overload 120%FS
Ultimate Overload 150%FS
Connection
  • Excitation +: red
  • Excitation -: black
  • Signal +: green
  • Signal -: white

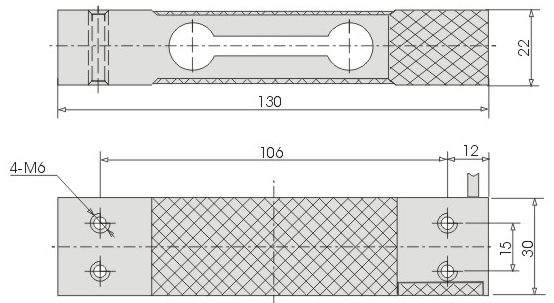

Dimensions (W x D x H) 130 x 30 x 22mm (5.12 x 1.18 x 0.87")
Weight 200g
Mounting 4x M6

%FS = Percent of Full Scale
