30A:1V current transformer clamp (hinged)

More Views

30A:1V current transformer clamp (hinged)
Incl. 19% Tax, excl. Shipping Cost

Availability: In stock

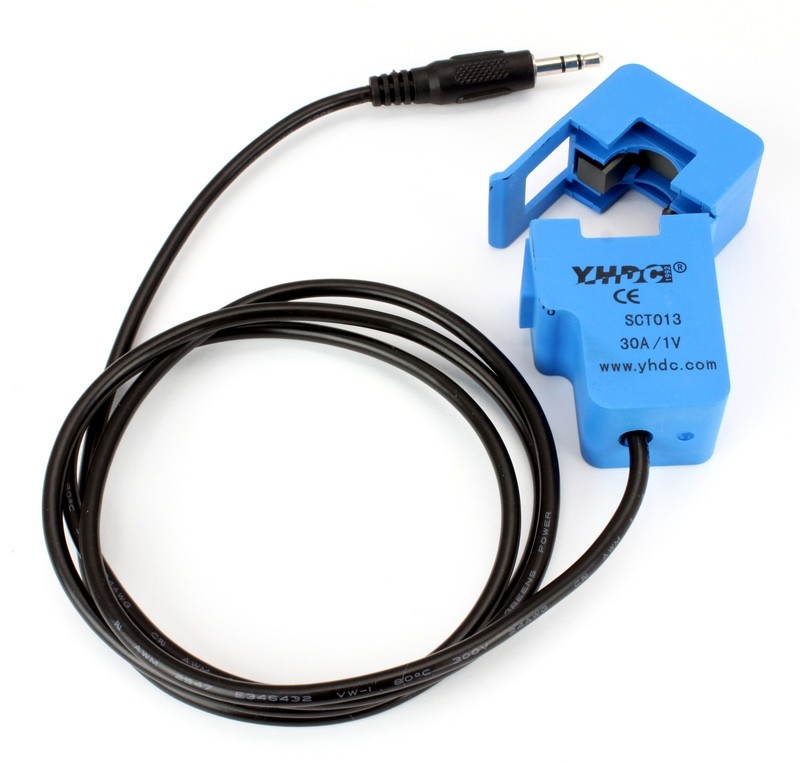

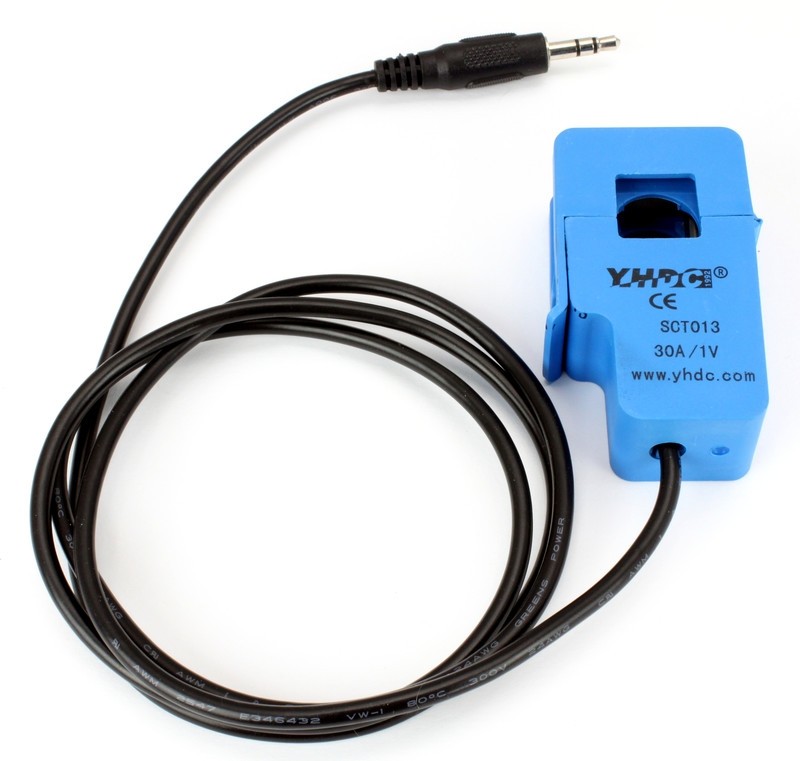

Current transformer clamp with a measuring range of 0A - 30A (AC) and output voltage of 0-1V.

This current transformer is compatible to the Energy Monitor Bricklet.

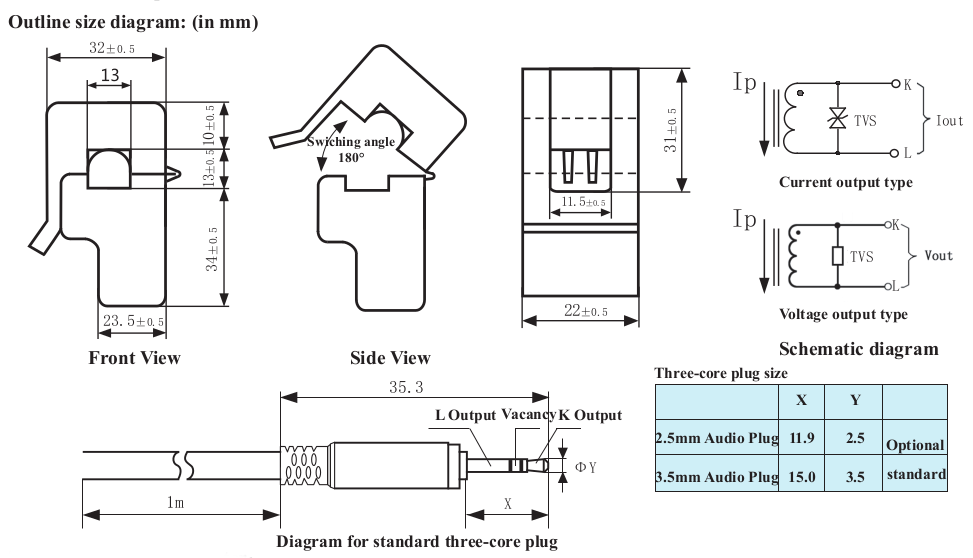

Technical Specifications

Model SCT-013-030
Connector 3.5mm audio plug
Max Input Current 30A
Output Voltage 0-1V
Size of Opening 13mm x 13mm
Non-Linearity +- 3%
Working Temperature -25°C - 70°C
