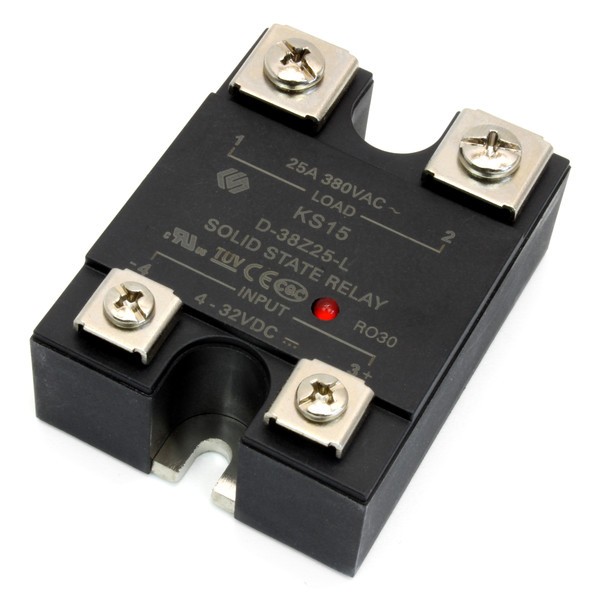

Solid State Relay AC 380V/25A

More Views

Solid State Relay AC 380V/25A
€13.99
Incl. 19% Tax, excl. Shipping Cost

Availability: In stock

OR
Description

Details

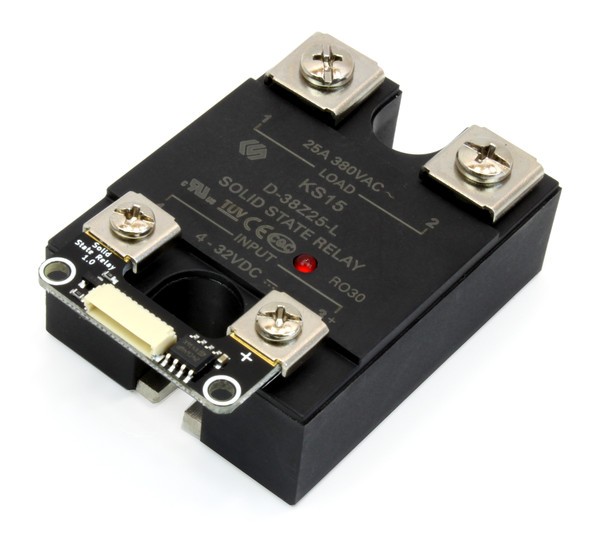

With this solid state relay you can galvanically isolated switch loads up to 380VAC and 25A with a small DC voltage. Embedded zero cross turn-on automatically prevents load switching while current is flowing. An integrated status LED shows the state of the relay. Together with the Solid State Relay Bricklet it is an ideal combination to switch large AC loads noise free.

If the relay is frequently switched with loads above 9A an additional heatsink might be necessary.

You can find a datasheet of the SSR here.

Technical Specification

Property Value
Manufacturer Item Number KS15/D-38Z25-L
Rated Input Voltage 4VDC to 32VDC
Rated Load Voltage up to 380VAC
Rated Load Current up to 25A (> 9A heatsink necessary)
Isolation between input and load (opto-isolation) 4000VAC
Dimensions (W x D x H) 45.7 x 58.6 x 26.5mm (1.8 x 2.31 x 1.04”)
Weight 70g
