- Description
-
Details

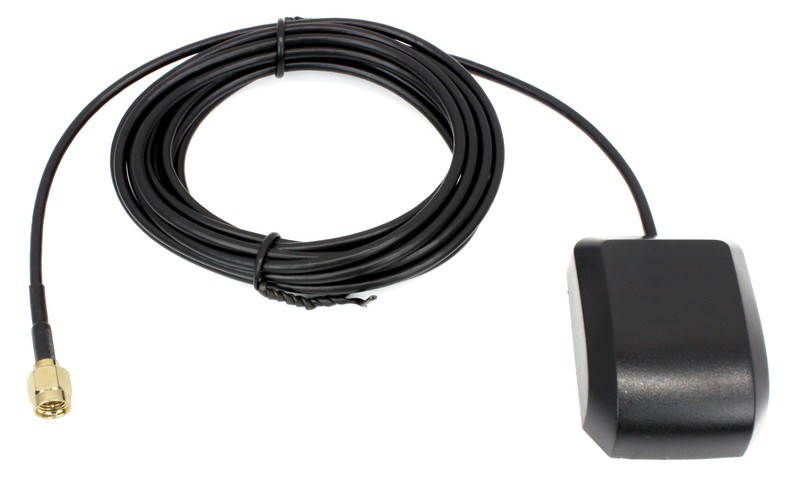

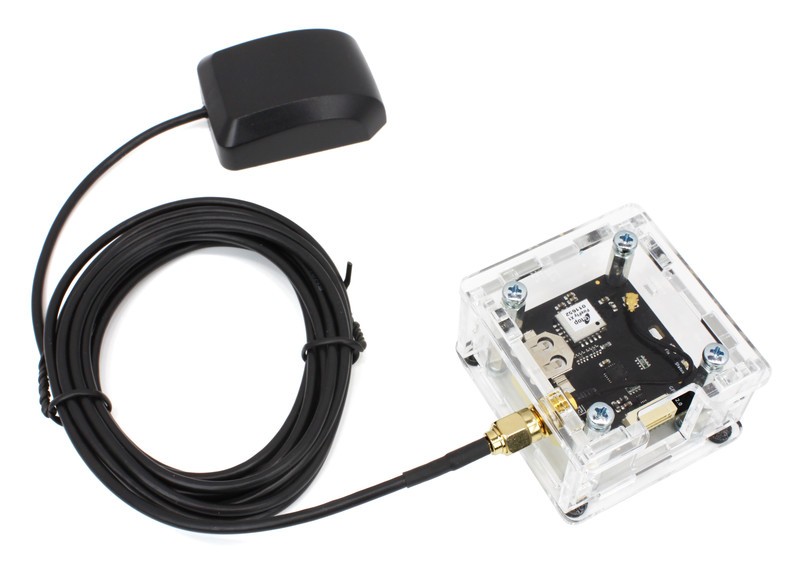

External GPS Antenna with SMA connector and 300cm cable, compatible to the GPS Bricklet and GPS Bricklet 2.0 with U.FL to SMA pigtail cable. The antenna has a magnetic base and can be mounted to any magnetic material.
Technical Specifications
Property Value Frequency Range 1575.5±3 MHz Band Width ±5 MHz Gain 3dBi VSWR ≤1.5 Polarization RHCP Maximum Power 50W Impedance 50Ω Connector SMA Cable RG174 Cable Length 300cm Dimensions (W x D x H) 38 x 34 x 12.5mm Weight 85g
