The Tinkerforge Workbench is perfect for everybody that wants to experiment with Tinkerforge components and wants to present the project in a tidy way.

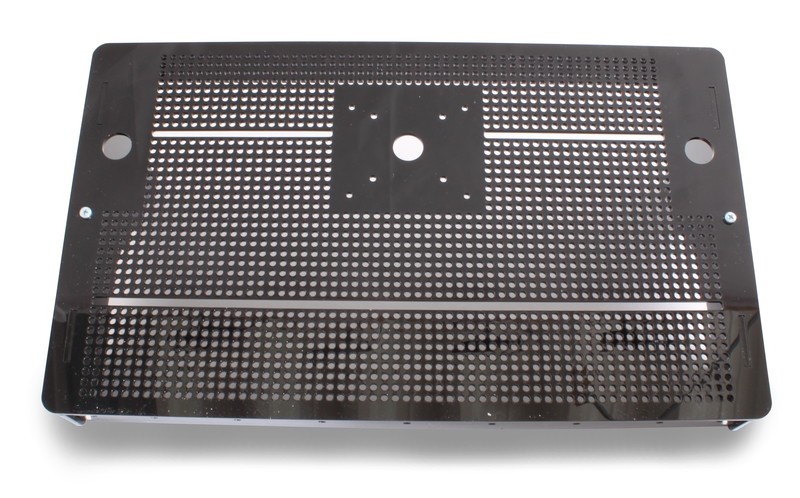

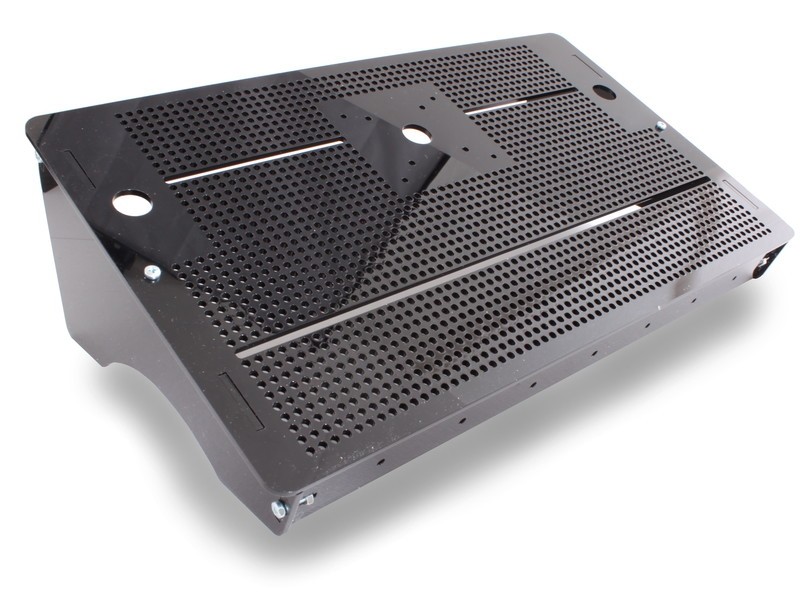

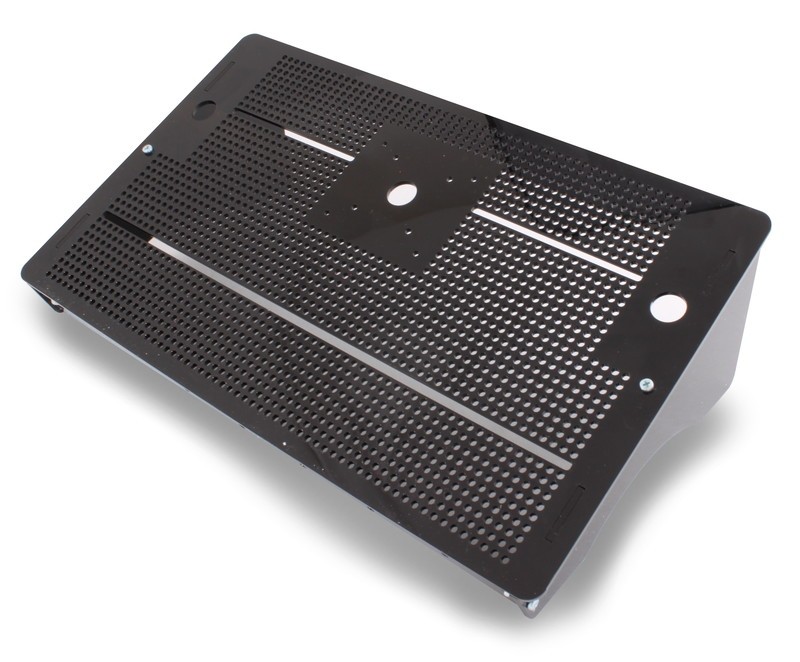

It is a plastic case with a size of 340x200mm and a slightly tilted front panel. The front panel has a grid of 3mm drill holes, that have a distance of 5mm to each other. You can mount all of the Tinkerforge modules on this grid, as well as other circuit boards or other hardware projects. Cables can be put through slots and guided unobtrusively at the bottom site of the case. The resulting projects are thus always clean and tidy, even if they have complex wiring. In the middle of the front panel is enough space to either mount a stack of Bricks or a Raspberry Pi (which unfortunately does not have a 5mm compatible grid). If you use a Raspberry Pi, you can still put up to four Bricks at the bottom side of the front panel (inside of the case).

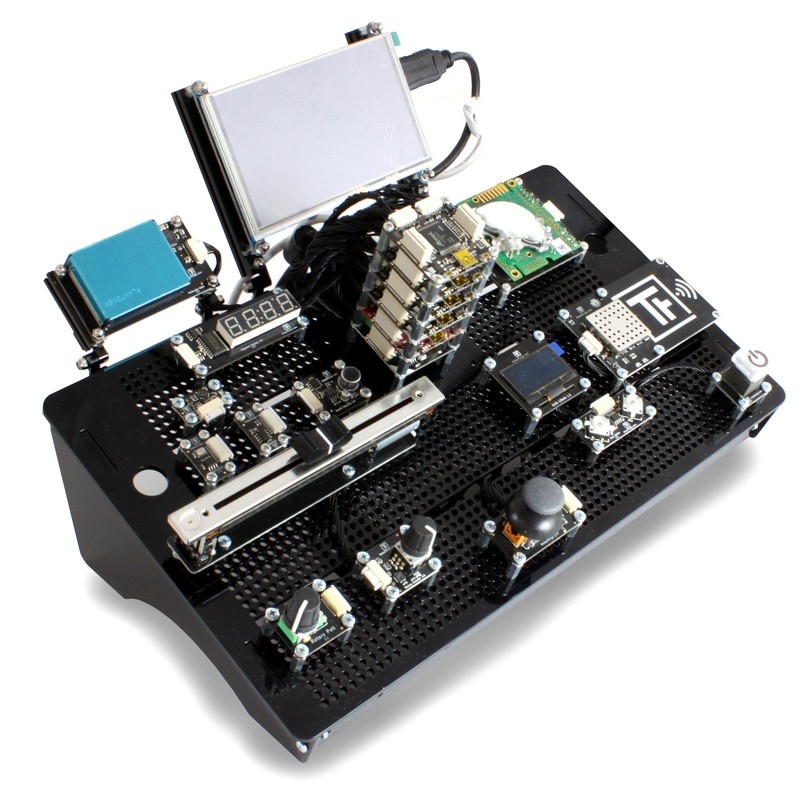

If that is not enough, you can of course also mount Bricks at any other position of the case. The struts at the front and at the back also have 3mm drill holes. These can be used to mount other construction. As an example we attached a simple HDMI display mount made with MakerBeams. If you miss a mounting option somewhere, you can easily drill new holes into the acrylic plastic.

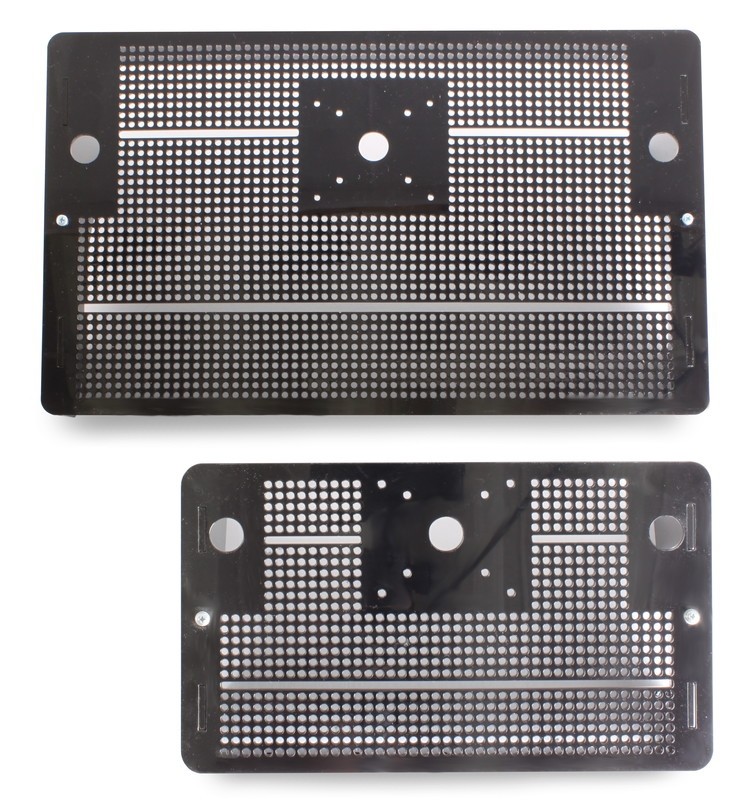

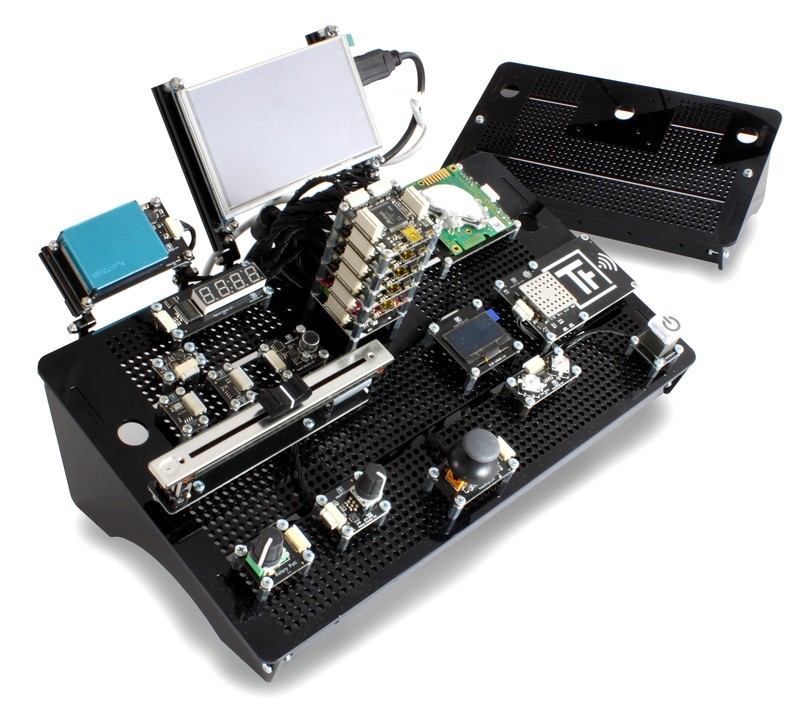

A smaller version of the workbench (20x14cm) is also available. The video below shows the big version.
Dimensions (W x D x H): 340 x 200 x 110mm

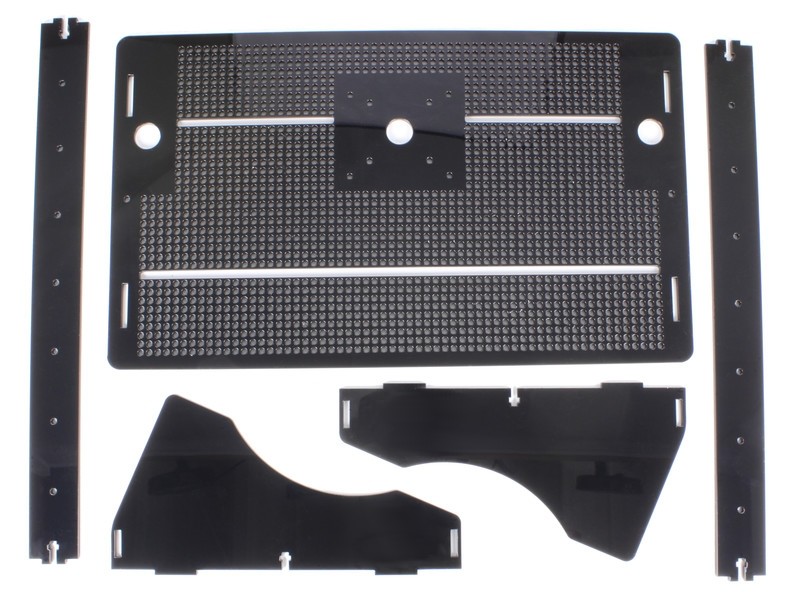

The kit contains:
- 1x Frontpanel
- 2x Sidepanel
- 2x Struts (front and rear)
- 6x M3 12mm screws
- 6x M3 nuts
For the HDMI display mount as displayed in the image the following additional parts are needed (not included):
- 1x Makerbeam 150mm
- 2x Makerbeam 100mm
- 2x Hinges
- 10x M3 square headed bolts 12mm
- 1x Mounting Kit 12mm
Additionally we have fixed the cables with two T-Brackets on the rear of the panel.
