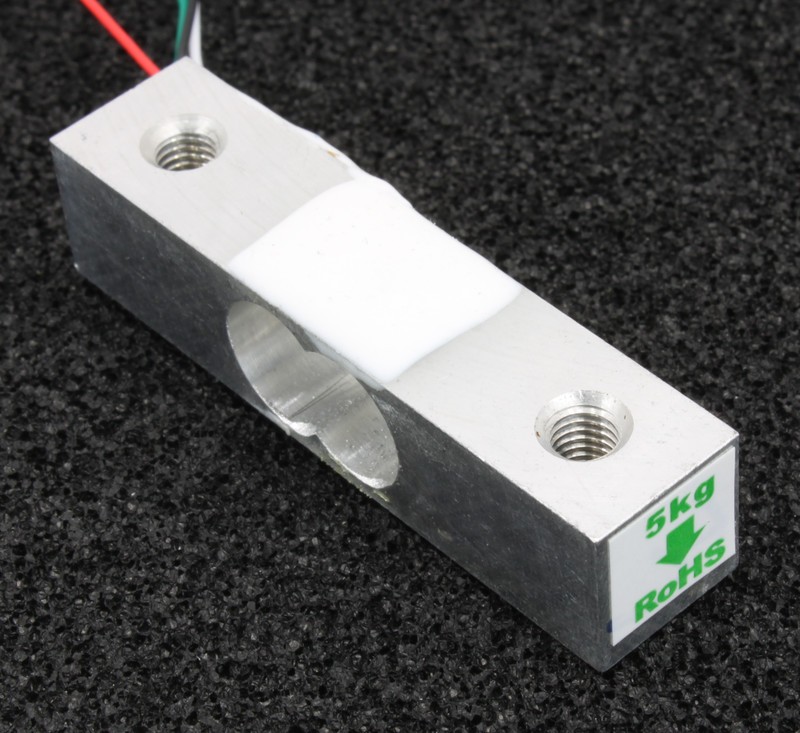

Load Cell 5kg CZL635

More Views

€10.00

Incl. 19% Tax, excl. Shipping Cost

Availability: In stock

Qty:

Description

This micro load cell is compatible to the Load Cell Bricklet 2.0.

Property	Value
Model	CZL635-5kg
Measurement Range	0kg to 5kg
Rated Output	1.0±0.15mV/V
Non-Linearity	0.05%FS
Hysteresis	0.03%FS
Repeatability	0.05%FS
Creep	0.05%FS/10min
Temperature Effect on Zero	0.03%FS/10°C
Temperature Effect on Span	0.02%FS/10°C
Zero Balance	±1.0%FS
Input Impedance	1000±10Ω
Output Impedance	1000±3Ω
Insulation Resistance	≥ 2000MΩ at 100V (DC)
Recommended Excitation Voltage	3V to 10V (DC)
Allowed Excitation Voltage	3V to 18V (DC)
Compensated Temperature Range	-10°C to +40°C
Operating Temperature Range	-20°C to +60°C
Safe Overload	120%FS
Ultimate Overload	150%FS
Connection	Excitation +: red Excitation -: black Signal +: green Signal -: white

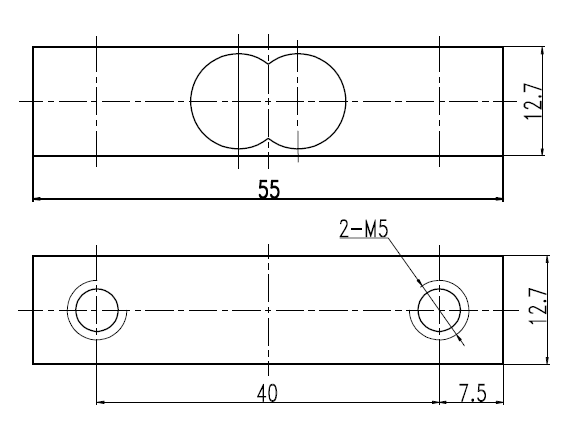

Dimensions (W x D x H)	55 x 12.7 x 12.7mm (2.17 x 0.5 x 0.5")
Weight	20g
Mounting	2x M5
