Barometer Bricklet

More Views

Barometer Bricklet

€0.00

Incl. 19% Tax, excl. Shipping Cost

Availability: In stock

  • Measures air pressure and altitude changes
  • Resolution 0.012mbar / 0.1m
  • Range 10 to 1200mbar
Barometer Bricklet   +€21.99

* Required Fields

Description

Details

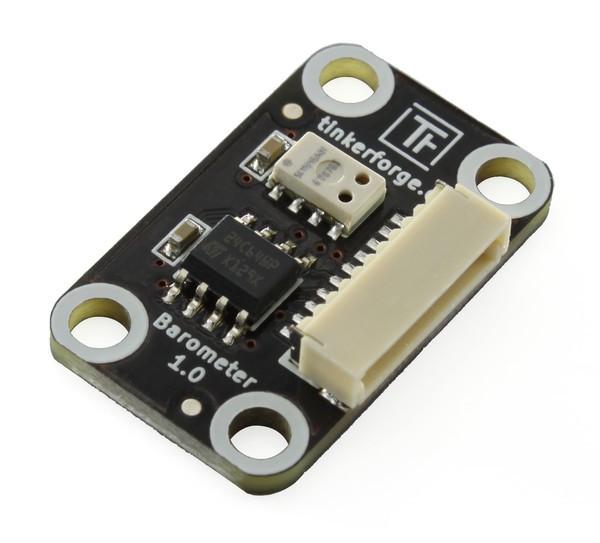

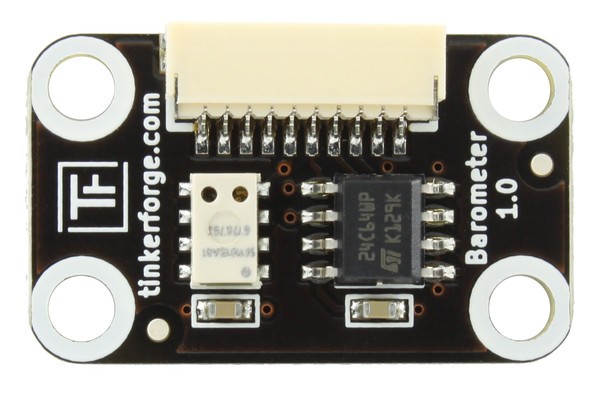

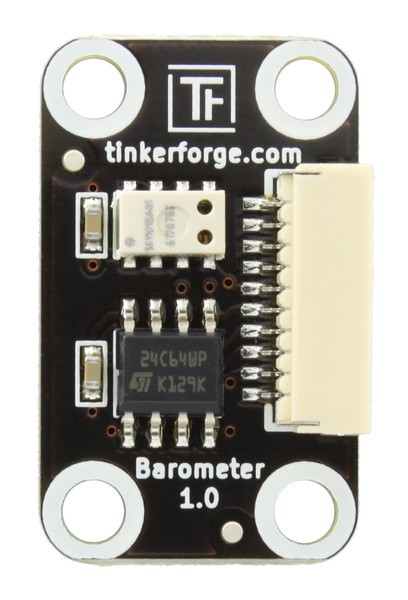

The Barometer Bricklet can be used to extend the features of Bricks by the capability to measure air pressure in range of 10 to 1200mbar with a resolution of 0.012mbar. The measurement is temperature compensated internally. The Bricklet is equipped with a MS5611-01BA01 sensor which is designed to be used as an altimeter, too. But since the air pressure is changing significantly even over a short period time the achievable accuracy is limited. One possible solution to achieve higher accuracy and stability of the altitude measurement is to perform sensor fusion with the sensor data of an IMU Brick (see Youtube video).

For more information click here.

Technical Specifications

Property Value
Sensor MS5611-01BA01
Current Consumption 1mA

Pressure Range
10 - 1200mbar
Resolution 0.012mbar / 0.1m
Accuracy (25°C, 750mbar) ±1.5mbar

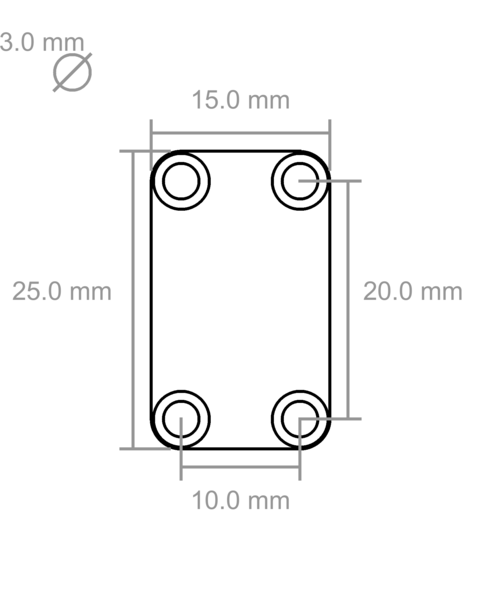

Dimensions (W x D x H) 25 x 15 x 5mm (0.98 x 0.59 x 0.19”)
Weight 2g

Comes Packaged With
