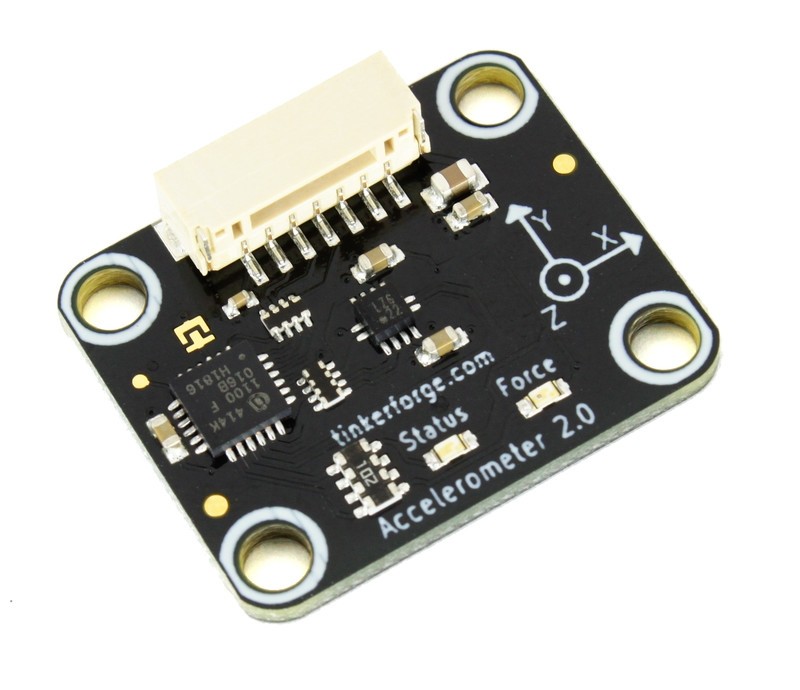

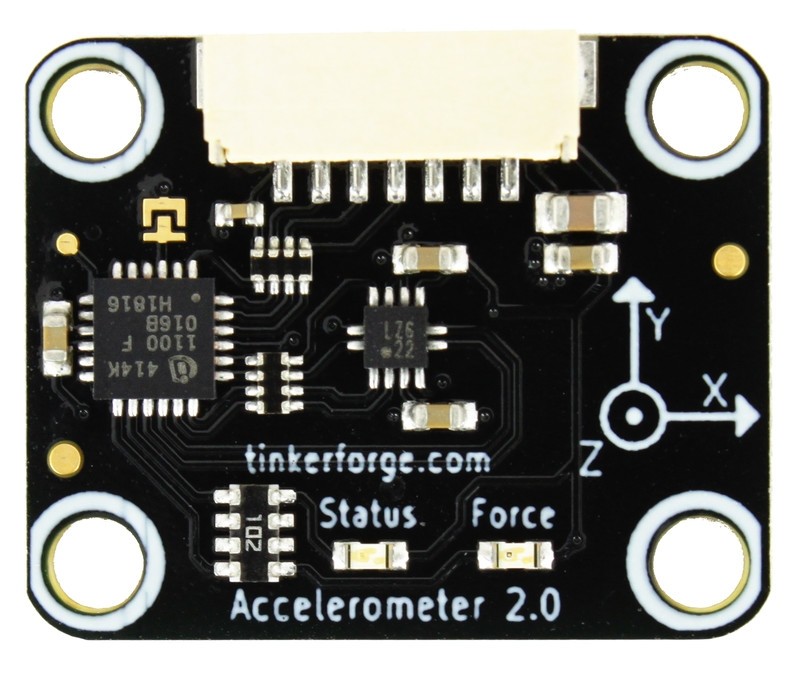

Accelerometer Bricklet 2.0


Incl. 19% Tax, excl. Shipping Cost

Availability: In stock

  • 3-axis accelerometer
  • 0.001g steps with 16bit resolution
  • Up to ±8g full-scale range
  • Date rate of up to 25.6kHz
Accelerometer Bricklet 2.0   +€16.99

* Required Fields



The Accelerometer Bricklet can be used to extend the features of Bricks with the capability to measure acceleration in x-, y- and z-axis. The measured acceleration can be read out in g. With configurable events it is possible to react on changing acceleration without polling.

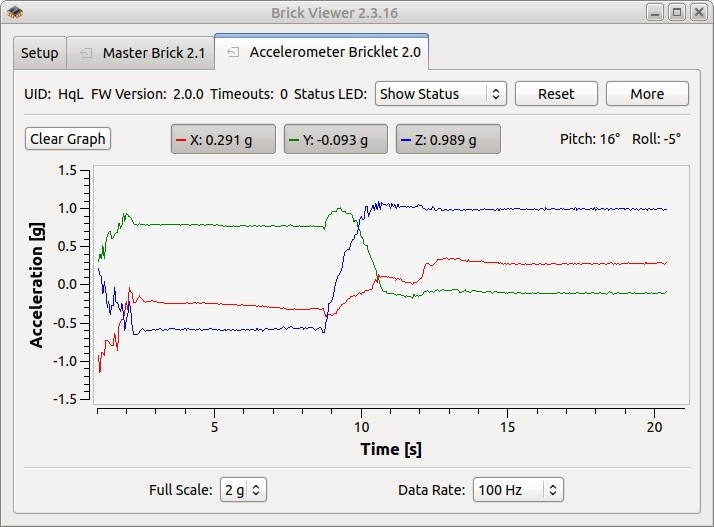

A continuous acceleration callback can be used to transfer the acceleration data with the full rate of up to 25.6kHz. This high data rate is well suited for predictive maintenance applications.

The Bricklet has an LED that can be turned on trough the API, e.g. to show that a specific acceleration was reached.

Technical Specifications

Sensor KX122
Current Consumption 30mW (6mA at 5V)
Acceleration 0.001g steps, 16bit resolution
Shock survivability 5000g for 0.5ms / 10000g for 0.2ms
Full-scale range ±2g / ±4g / ±8g (selectable with API)
Data Rate 0.781Hz - 25.6kHz (selectable with API)
Dimensions (W x D x H) 25 x 20 x 5mm (0.98 x 0.79 x 0.19")
Weight 2g

Comes Packaged With

  • Accelerometer Bricklet 2.0
  • Chosen Bricklet Cable
  • Chosen Mounting Kit / Case
