Piezo Speaker Bricklet

More Views

Piezo Speaker Bricklet

€0.00

Incl. 19% Tax, excl. Shipping Cost

Availability: In stock

  • Creates beeps with configurable frequency of 585Hz to 7100Hz
  • Configurable beep duration
  • Morse code output supported
Piezo Speaker Bricklet   +€10.99

* Required Fields

Description

Details

This Bricklet is deprecated. Is has been replaced by the Piezo Speaker Bricklet 2.0. It is currently sold off with a large discount, but only as long as stock lasts.

The Piezo Speaker Bricklet can be used to extend Bricks by the possibility to generate beeps with different frequencies. The available frequency range is 585Hz to 7100Hz. A beep has a configurable length and it is possible to transmit a Morse Code string.

A typical application is to beep on specific events (e.g. "email received").

Technical Specifications

PropertyValue
Buzzer PS1420P02CT
Current Consumption 1mA (idle), 4mA (active)

Frequency Range 585 - 7100Hz (configurable)
Sound Pressure 60 - 82dB/10cm (depends on frequency)

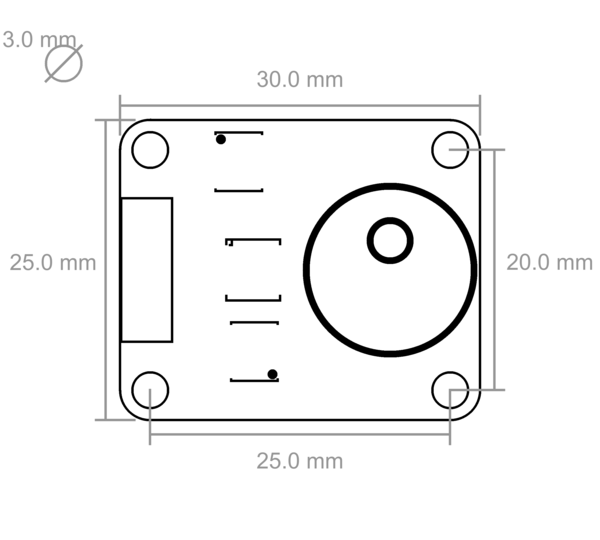

Dimensions (W x D x H) 25 x 30 x 13mm (0.98 x 1.18 x 0.51")
Weight 5g

Comes Packaged With
