Piezo Speaker Bricklet 2.0

More Views

Piezo Speaker Bricklet 2.0

€0.00

Incl. 19% Tax, excl. Shipping Cost

Availability: In stock

  • Can beep with configurable frequency of 50Hz to 15000Hz
  • Can output fully configurable alarm/siren sound
  • Loudness configurable between 85dB(A) and 110dB(A)
Piezo Speaker Bricklet 2.0   +€16.99

* Required Fields

Description

Details

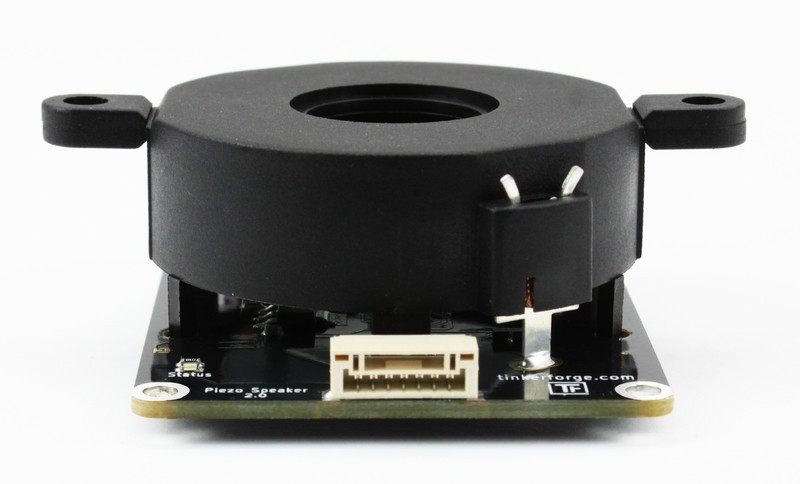

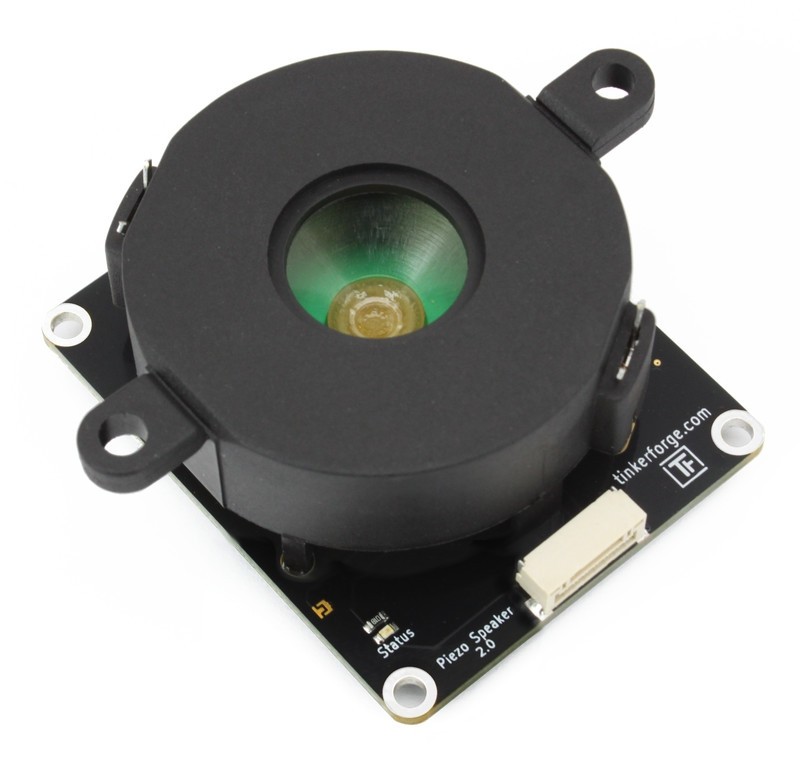

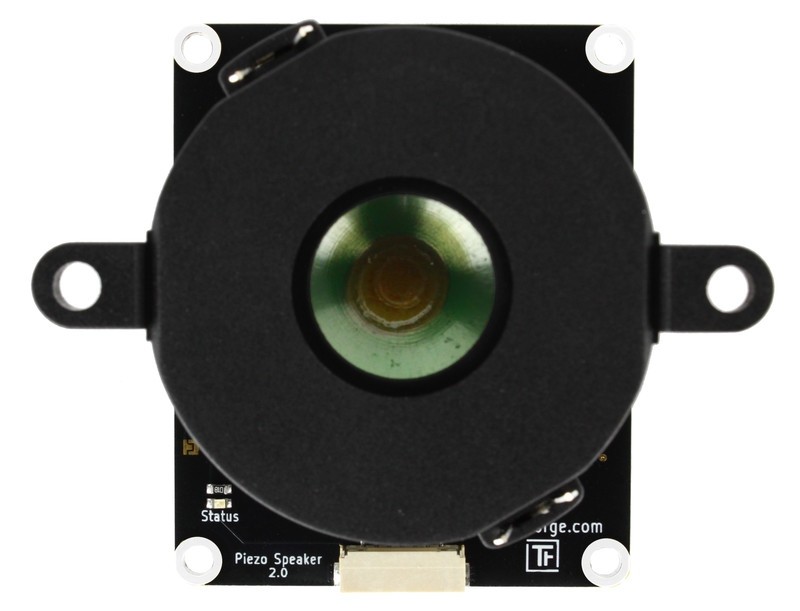

The Piezo Speaker Bricklet can be used to extend Bricks by the possibility to generate beeps with different frequencies and volume.

The available frequency range is 50Hz to 15000Hz. You can control the volume with a sound pressure level range of 85dB(A) to 110dB(A).

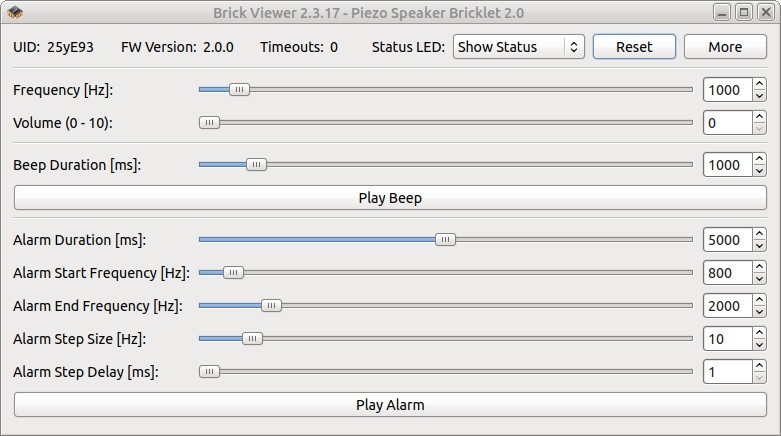

Additionally the Bricklet has support for alarm/siren sounds. In this mode it will sweep through a frequency range with configurable range, step size and duration.

The Piezo Speaker Bricklet 2.0 has a 7 pole Bricklet connector and is connected to a Brick with a 7p-10p Bricklet cable.

Below you can find an audio file with samples of different sounds and alarams that have been generated with a Piezo Speaker Bricklet 2.0:

Technical Specifications

PropertyValue
Buzzer PT-4532PLQ
Current Consumption 55mW (11mA at 5V)

Frequency Range 50Hz - 15000Hz (configurable)
Sound Pressure 85dB(A) - 110dB(A) @50cm/1kHz (configurable)

Dimensions (W x D x H) 55 x 45 x 20mm (2.2 x 1.8 x 0.8")
Weight 20g
