  1. DC Brick

    €49.99

    Incl. 19% Tax, excl. Shipping Cost
    • Controls one brushed DC motor with max. 28V and 5A (peak) over USB
    • API for many programming languages available
    • Direction, velocity and acceleration controllable
    • Extendable via two Bricklets ports
    • Configurable overtemperature and overcurrent callbacks
    Learn More

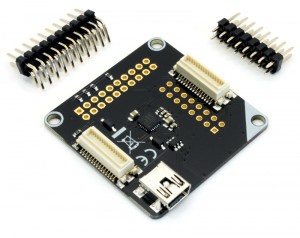

  2. Debug Brick 1.2

    €14.99

    Incl. 19% Tax, excl. Shipping Cost
    • For Firmware Developers
    • JTAG and serial console
    Learn More

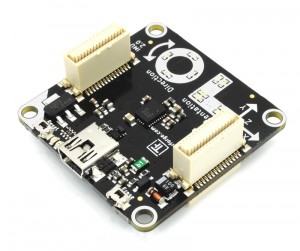

  3. IMU Brick 2.0

    €59.99

    Incl. 19% Tax, excl. Shipping Cost
    • Full fledged IMU/AHRS with 9 degrees of freedom (3-axis each: accelerometer, compass, gyroscope)
    • No accumulating errors, no gimbal lock!
    • Factory calibrated, automatic continuous self-calibration during operation
    • Calculates quaternions, linear acceleration, gravity vector as well as independant heading, roll and pitch angles
    • Directly readable by USB, extendable by two Bricklet ports
    Learn More

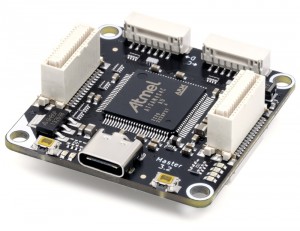

  4. Master Brick 2.1

    €29.99

    Incl. 19% Tax, excl. Shipping Cost
    • Up to four Bricklets usable over USB
    • Is the basis to build stacks
    • Usable with cable based and wireless Master Extensions
    Learn More
  5. RED Brick

    €69.99

    Incl. 19% Tax, excl. Shipping Cost
    • Controls other Bricks and Bricklets
    • Executes your program directly on the Brick
    • Supports nearly all programming languages
    Learn More
  6. Servo Brick

    €49.99

    Incl. 19% Tax, excl. Shipping Cost
    • Controls up to 7 RC Servos with max. 3A over USB
    • Brushless motors with external ESC also controllable
    • API for many programming languages available
    • Supports TurboPWM
    • With API adjustable servo voltage, period and pulse width
    • Position, velocity and acceleration controllable
    • Extendable via two Bricklets ports
    Learn More

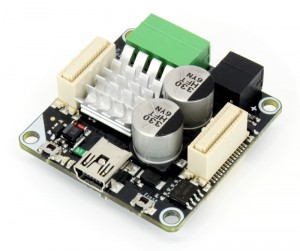

  7. Silent Stepper Brick

    €59.99

    Incl. 19% Tax, excl. Shipping Cost
    • Drives one bipolar stepper motor over USB (max. 46V, 1.6A per phase)
    • Noiseless operation of stepper motors
    • Position, velocity and acceleration controllable
    • Stepper resolution from full-step to 1/256-step
    • Configurable decay mode
    • Extendable via two Bricklets ports
    Learn More
  8. Stepper Brick

    €49.99

    Incl. 19% Tax, excl. Shipping Cost
    • Drives one bipolar stepper motor over USB (max. 38V, 2.5A per phase)
    • API for many programming languages available
    • Position, velocity and acceleration controllable
    • Full, half, quarter and eighth step modes
    • Configurable decay mode
    • Extendable via two Bricklets ports
    Learn More
