LCD 20x4 Bricklet 1.2

More Views

LCD 20x4 Bricklet 1.2


Incl. 19% Tax, excl. Shipping Cost

Availability: In stock

  • 20x4 character alphanumeric display
  • Switchable blue backlight
  • 4 push-buttons
LCD 20x4 Bricklet 1.2   +€22.99

* Required Fields

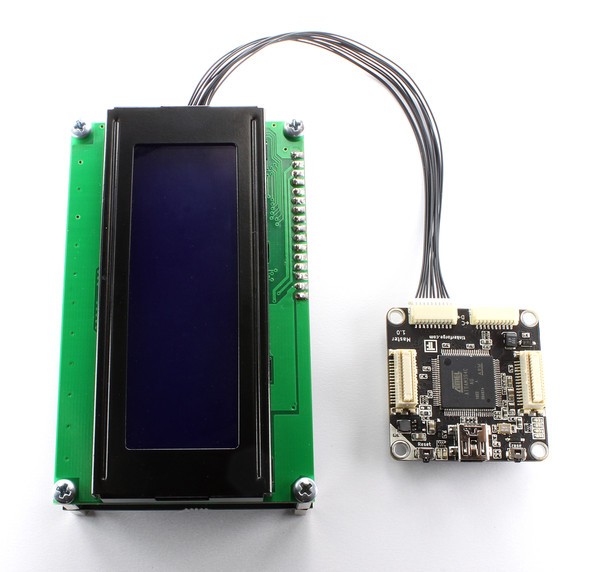

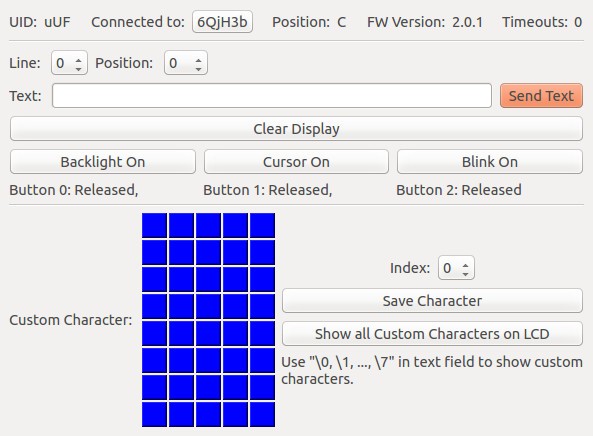

This LCD Bricklet is equipped with a 20x4 character alphanumeric display with blue backlight and four push-buttons. It can be controlled with Bricks. The API allows to write characters to the LCD, get the state of the buttons, switch the backlight on or off and configure events for the buttons.

You can use this Bricklet to display text, for example a name of a song that is played on your PC or measurements from other Bricklets.

Technical Specifications

Property Value

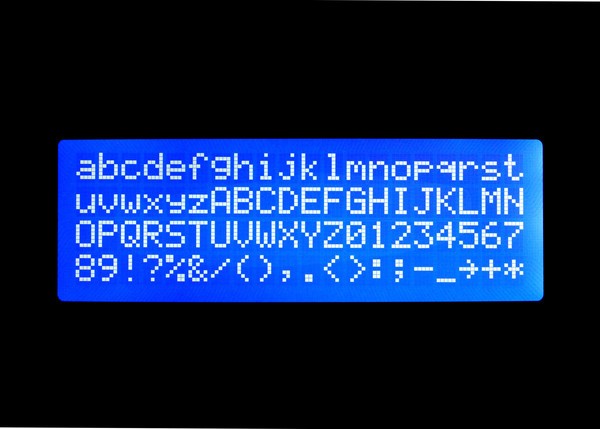

LCD Alphanumeric, 20 chars per line, 4 lines
Current Consumption 36mA (with Backlight)
Backlight Blue, software switchable
Contrast Adjustable with potentiometer

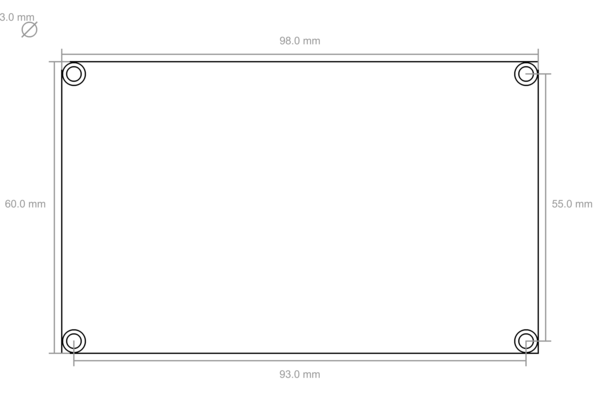

Dimensions (W x D x H) 60 x 98 x 22mm (2.36 x 3.86 x 0.86”)*
Weight 96g*

* without screws

Comes Packaged With
