Segment Display 4x7 Bricklet 2.0

More Views

Segment Display 4x7 Bricklet 2.0

€0.00

Incl. 19% Tax, excl. Shipping Cost

Availability: In stock

  • Four 7-segment digits
  • Switchable dots per digit, colon and tick mark
  • Brightness of segments configurable
  • Configurable counter functionality
Segment Display 4x7 Bricklet 2.0   +€14.99

* Required Fields

Description

Details

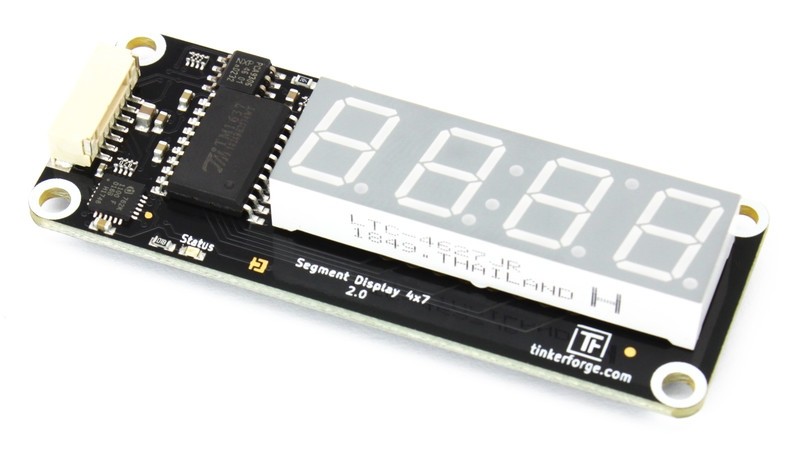

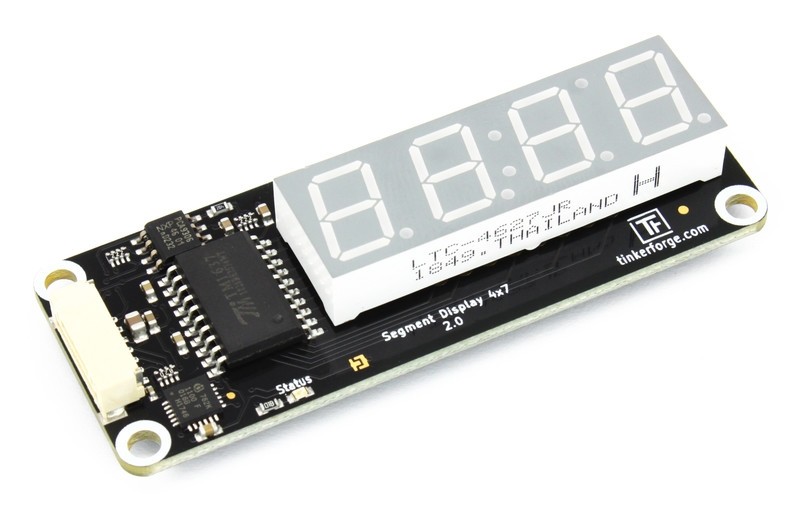

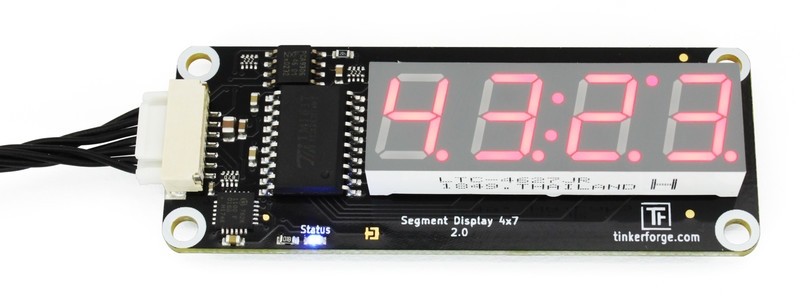

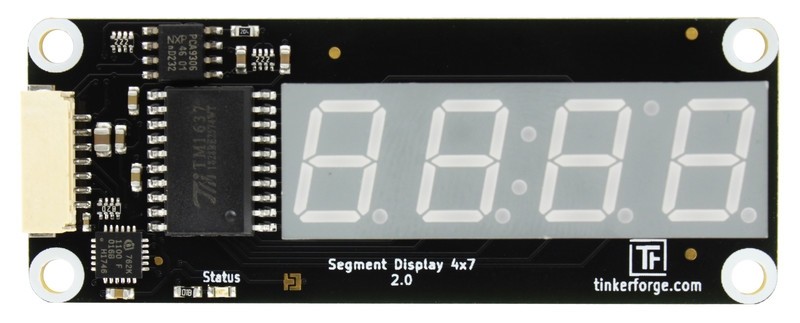

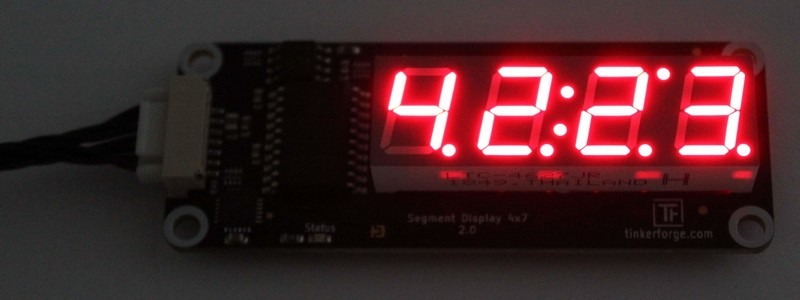

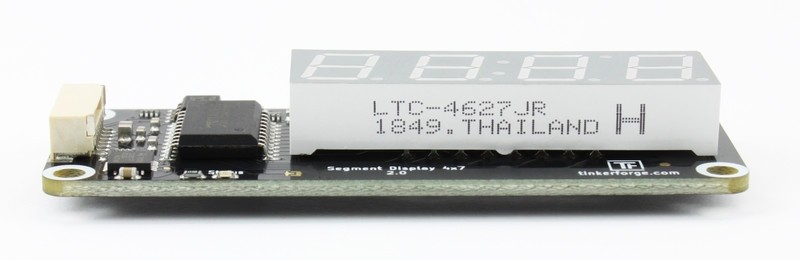

The Segment Display 4x7 Bricklet 2.0 can be used to control four 7-segment displays, four dots, two colon dots and a tick mark by a Brick. Each of the 35 segments can be controlled independently.

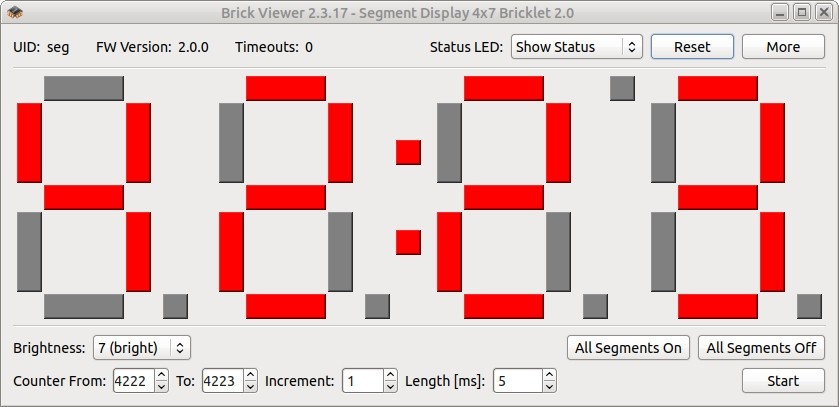

It is also possible to configure the brightness of the segments. Besides the possibility of controlling each segment independently, the API offers a user configurable counter.

The Segment Display 4x7 Bricklet 2.0 has a 7 pole Bricklet connector and is connected to a Brick with a 7p-10p Bricklet cable.

Technical Specifications

PropertyValue
Current Consumption
30mW (6mA at 5V) all segments off
60mW (12mA at 5V) all segments on at minimum brightness
400mW (80mA at 5V) all segments on at maximum brightness

Segment Width 6mm
Segment Height 10mm
Brightness of Segments Configurable in 8 steps

Dimensions (W x D x H) 25 x 65 x 9mm (0.98 x 2.56 x 0.35")
Weight 11g

Comes Packaged With

  • Segment Display 4x7 Bricklet 2.0
  • Chosen Bricklet Cable
  • Chosen Mounting Kit / Case
