Linear Poti Bricklet

Linear Poti Bricklet


Incl. 19% Tax, excl. Shipping Cost

Availability: In stock

  • 59mm linear potentiometer
  • Outputs position from 0% to 100% in 1% steps

Linear Poti Bricklet   +€7.49

* Required Fields



This Bricklet is deprecated. Is has been replaced by the Linear Poti Bricklet 2.0. It is currently sold off with a large discount, but only as long as stock lasts.

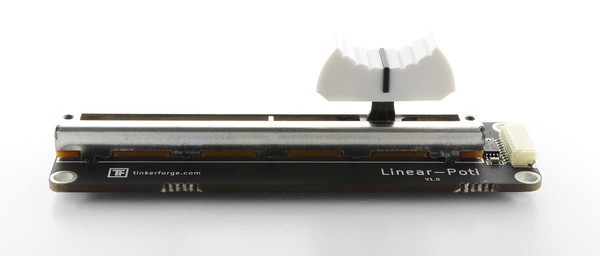

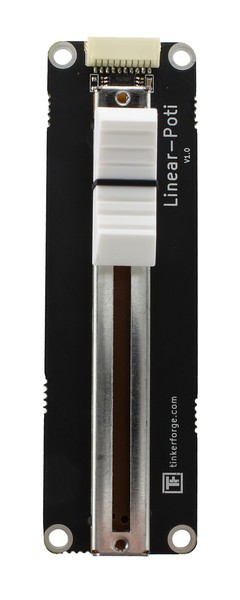

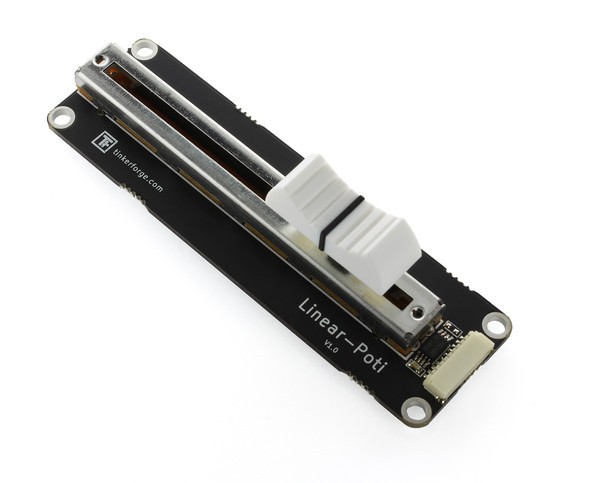

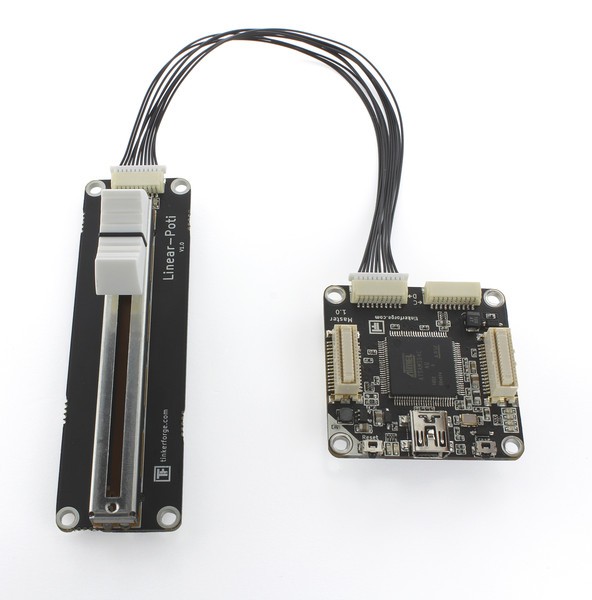

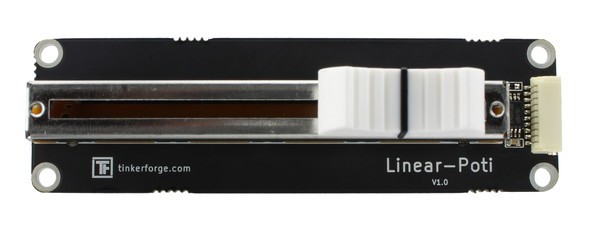

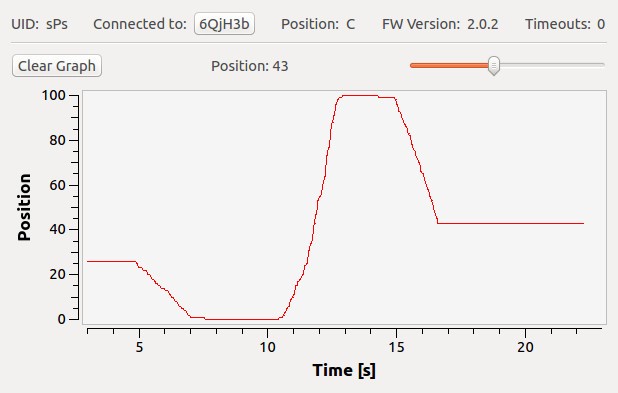

The Linear Poti Bricklet is equipped with a linear potentiometer ("fader", "slider"). It can be connected to a Brick, with which the position of the slider can be read out. With configurable events it is possible to react on changing positions without polling.

You can use this Bricklet for speed, volume control or similar purposes.

Technical Specifications

Property Value
Linear Potentiometer 59mm (2.32") adjustable length
Current Consumption 1mA
Position 0% - 100% (down - up) in 1% steps

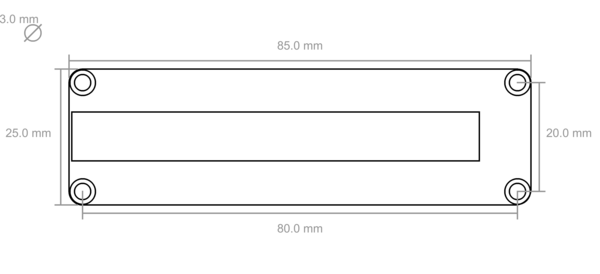

Dimensions (W x D x H) 25 x 85 x 20mm (0.98 x 3.35 x 0.78”)*
Weight 14g*

* without knob

Comes Packaged With

  • Linear Poti Bricklet

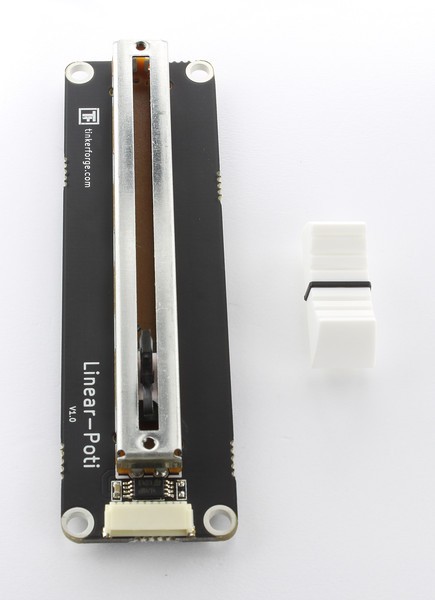

  • Black Knob
  • Chosen Bricklet Cable

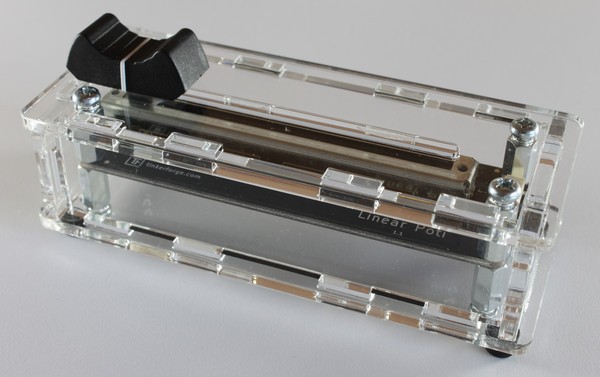

  • Chosen Mounting Kit / Case
