Rotary Poti Bricklet 2.0

More Views

Rotary Poti Bricklet 2.0

€0.00

Incl. 19% Tax, excl. Shipping Cost

Availability: In stock

  • 300° rotary potentiometer
  • Outputs position from -150° to 150° in 1° steps
Rotary Poti Bricklet 2.0   +€8.98

* Required Fields

Description

Details

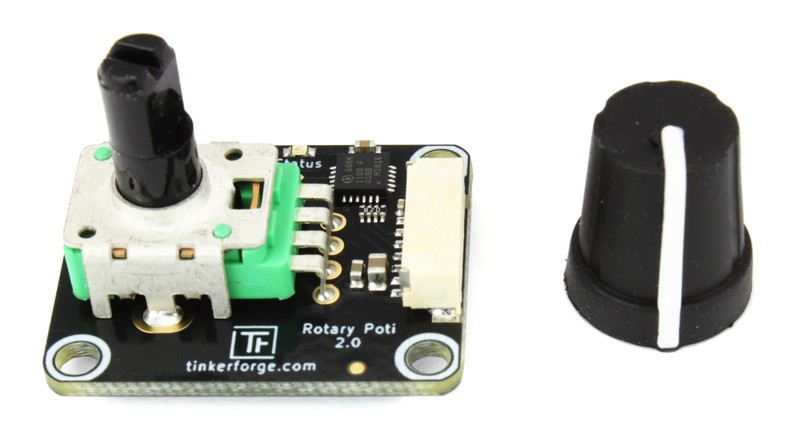

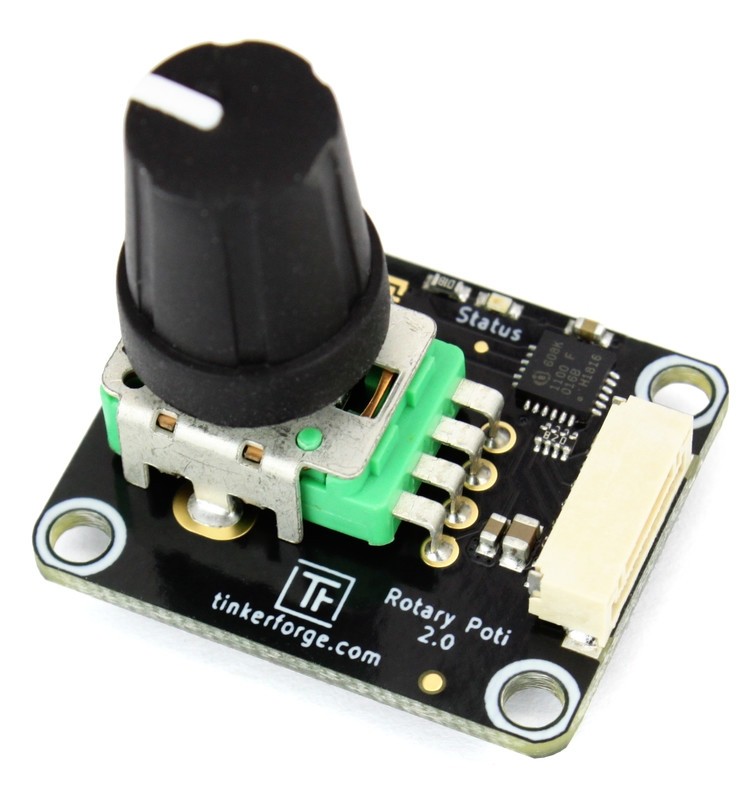

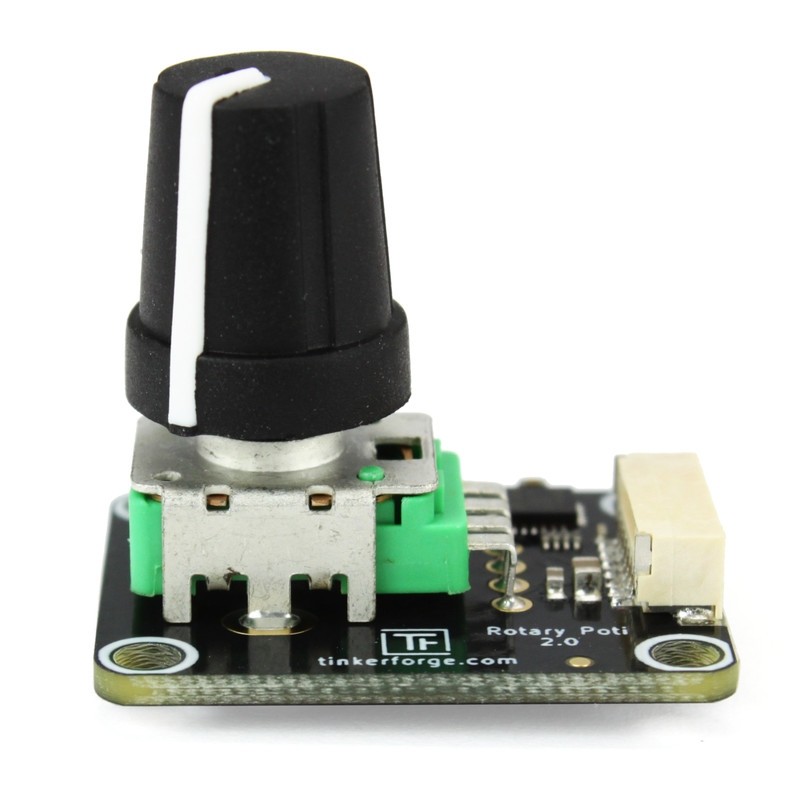

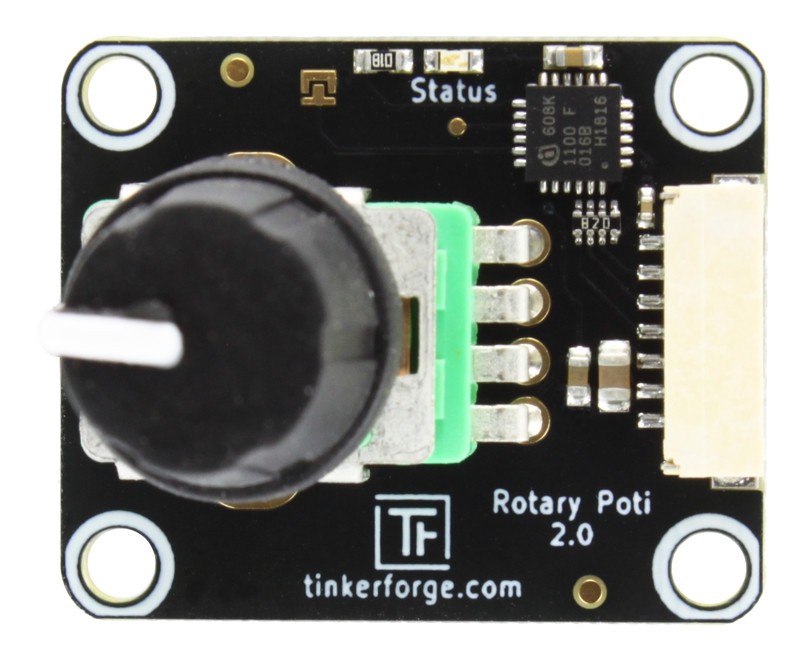

The Rotary Poti Bricklet 2.0 is equipped with a 1-turn rotary potentiometer. It can be connected to a Brick, with which the position of the slider can be read out.

With configurable events it is possible to react on changing positions without polling.

The Rotary Poti Bricklet 2.0 has a 7 pole Bricklet connector and is connected to a Brick with a 7p-10p Bricklet cable.

Technical Specifications

PropertyValue
Rotary Potentiometer 1-turn, 300°
Current Consumption 40mW (8mA at 5V)

Position -150° to 150° (left to right) in 1° steps

Dimensions (W x D x H) 30 x 25 x 23mm (1.18 x 0.98 x 0.9")*
Weight 7g

Comes Packaged With

  • Rotary Poti Bricklet 2.0
  • Black Knob
  • Chosen Bricklet Cable
  • Chosen Mounting Kit / Case
