MakerBeam NEMA 17 Bracket

More Views

MakerBeam NEMA 17 Bracket
€4.00
Incl. 19% Tax, excl. Shipping Cost

Availability: In stock

OR
Description

Details

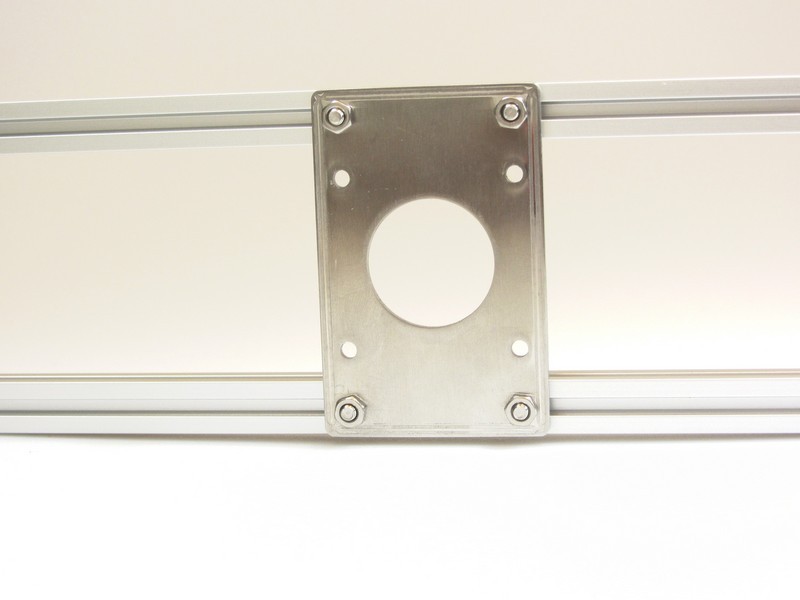

With this NEMA 17 Bracket, stepper motors with size NEMA 17 (1.7 x 1.7 inch (43.2 x 43.2 mm) faceplate) can be mounted. Please order necessary M3 square headed bolts and M3 nuts additionally..

Datasheet NEMA 17 Bracket

Property Value
Dimensions 63.3x41x1.5mm
Material Stainless Steel
Weight
24.7g

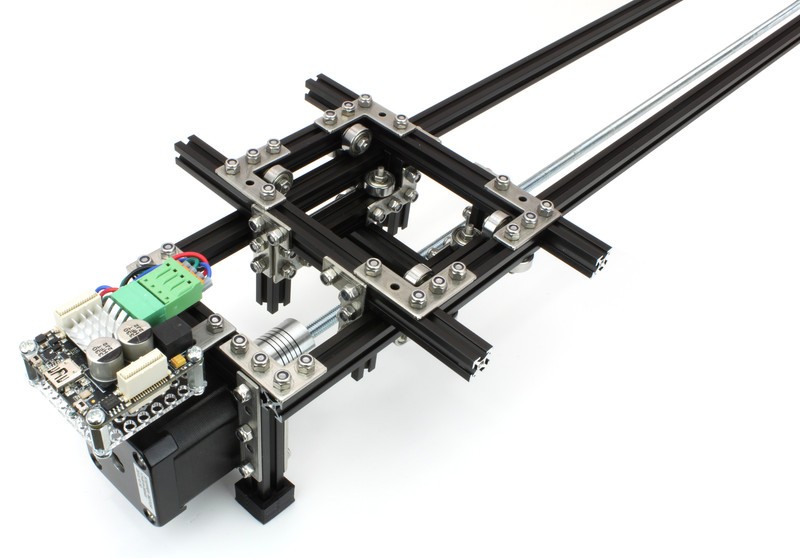

MakerBeam is a versatile and lightweight structural system with a cross section of 10x10mm. It has endless building possibilities in desktop size and uses Mini-T, which is a smaller version of the T-Slot standard that is widely used in industrial automation. Each beam has a 8mm deep 2.5mm diameter threaded hole on both ends, sized for normal M3 screws. The profile system is very light, each millimeter of beam has a weight of only 0.136g. You can use MakerBeam to build the mechanical structure for robots, CNC projects, camera sliders and other cool projects! The official MakerBeam website has a big list of example projects.
