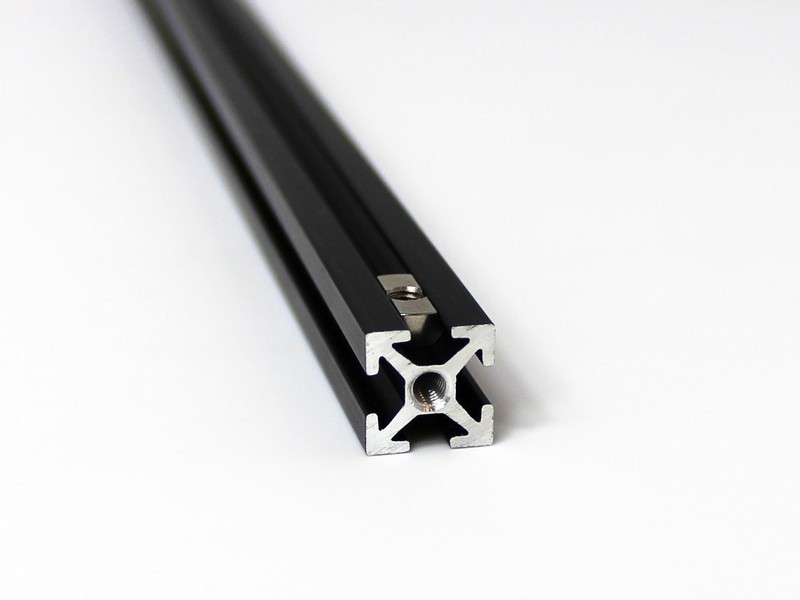

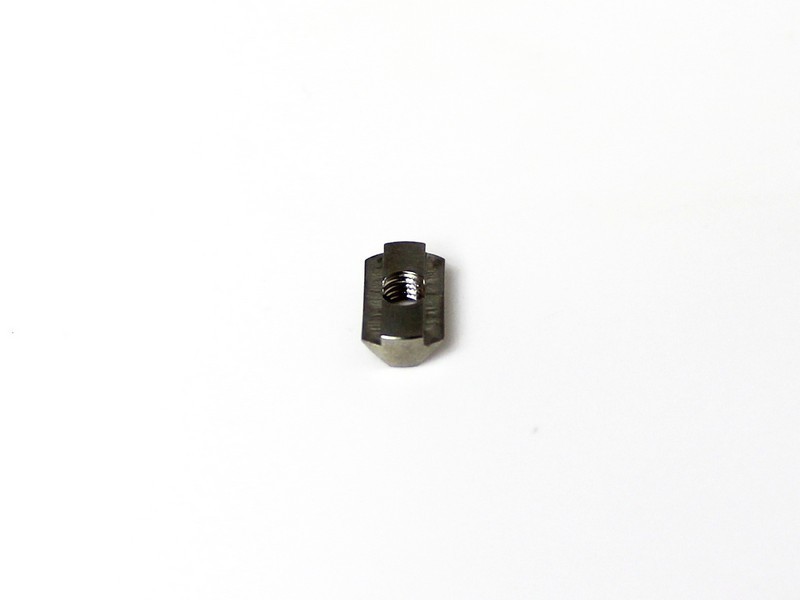

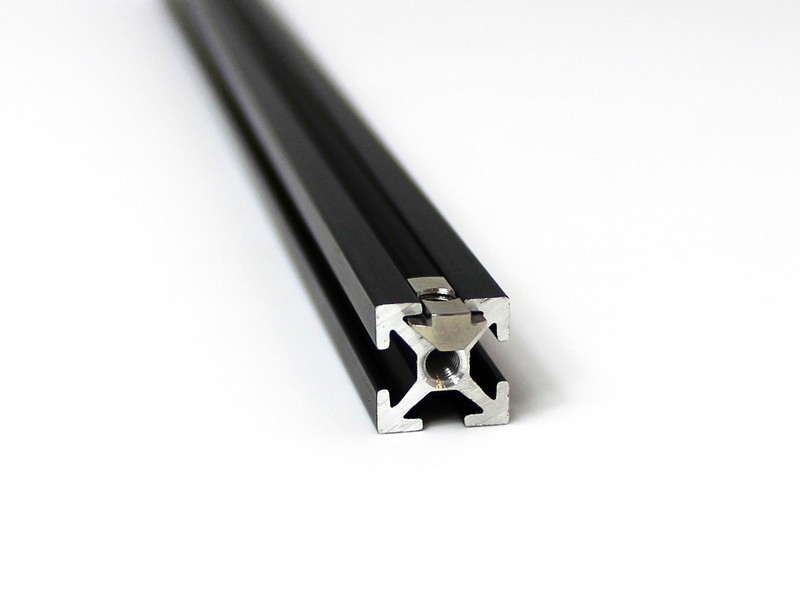

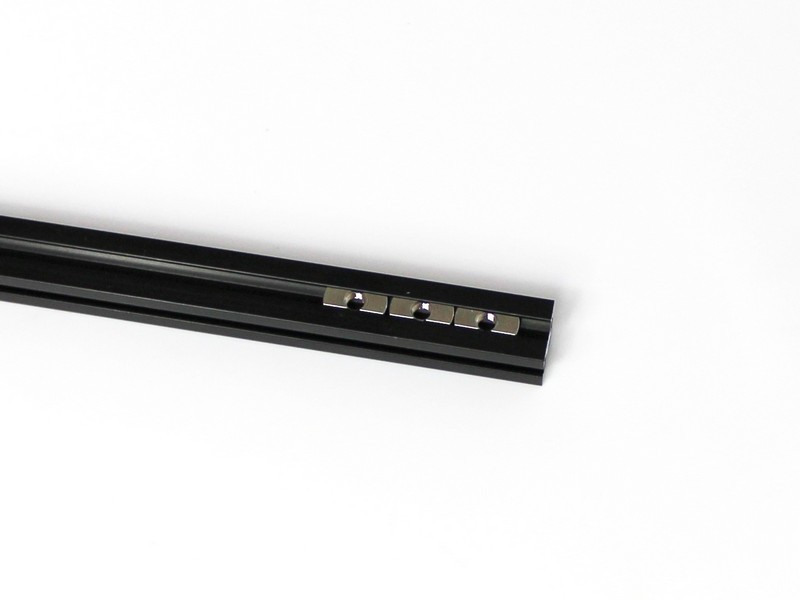

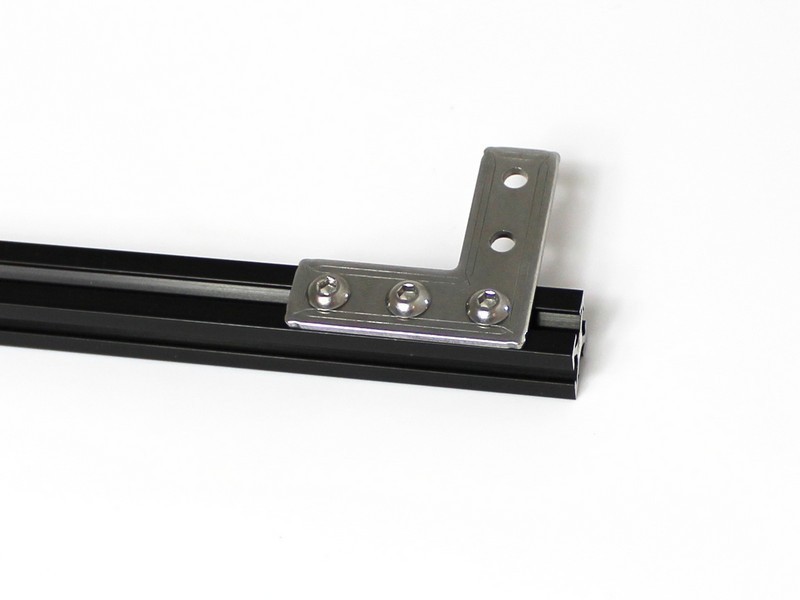

The MakerBeam T-slot nut is made of stainless steel and was specially designed to slide into the T-slot grooves of the MakerBeam aluminum profile. The T-slot nut is great to fasten brackets or corner cubes. For these two purposes the nuts come with two types of bolts.

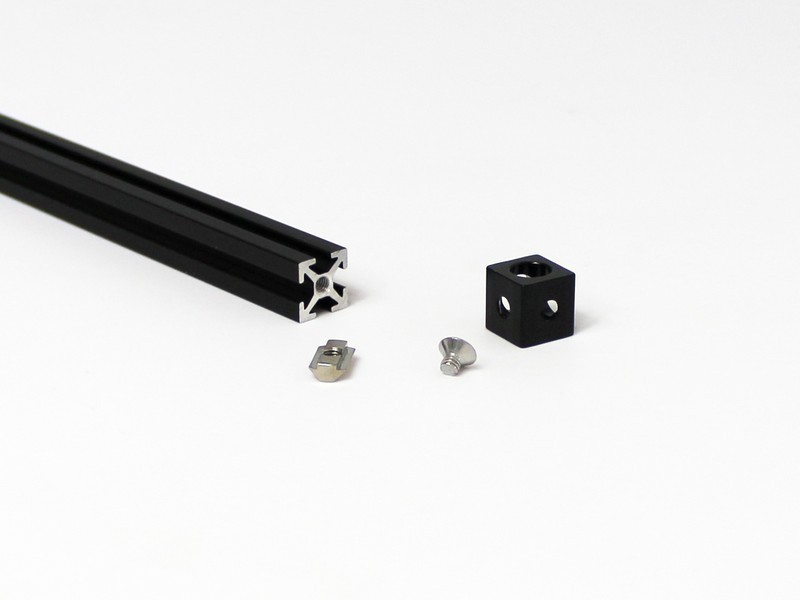

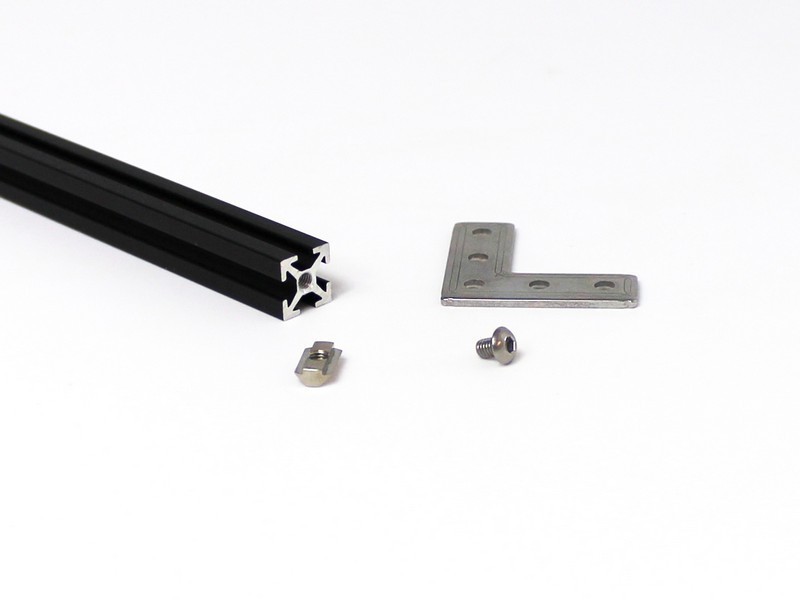

The first type is a button head socket screw (ISO7380, M3, 4mm, A2) and is meant to be used with brackets. The second is the flat head countersunk socket screw (DIN7991, M3, 4mm, A2) and is meant to be used with corner cubes. Do be careful with the bolts that come with the corner cubes. 4mm or 6mm is hard to tell apart!

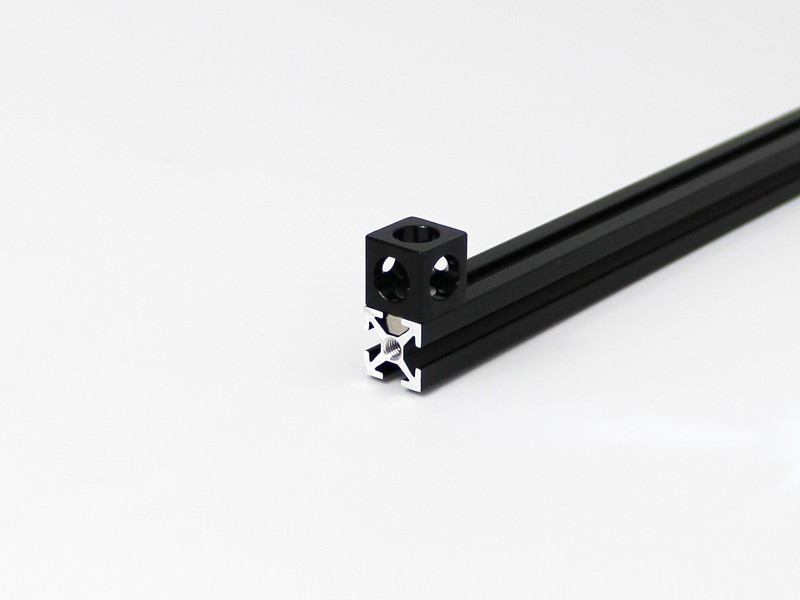

You are now able to fasten corner cubes midway. Try it yourself. Do note that because of the 4mm thread the load bearing capacity of structures will be limited.

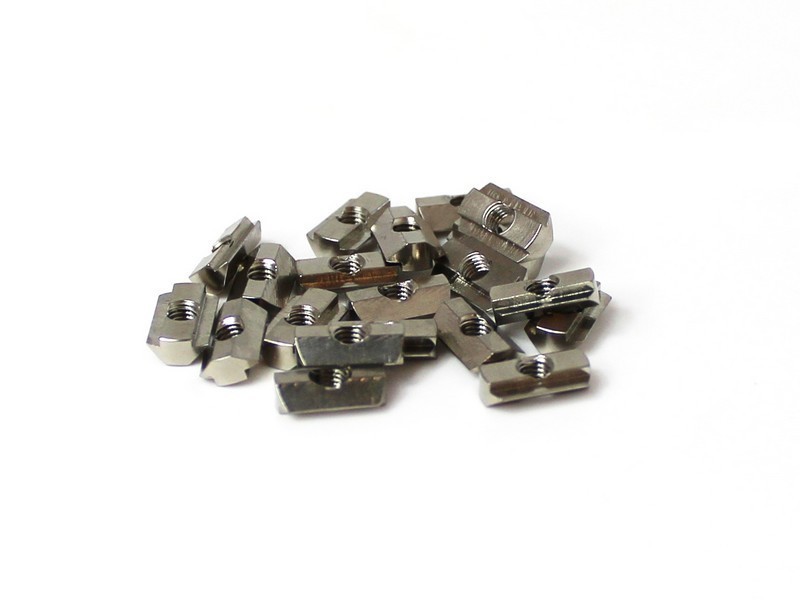

- 25 T-slot nuts for MakerBeam
- 25 bolts ISO7380, M3, 4mm, A2
- 25 bolts DIN7991, M3, 4mm, A2
MakerBeam is a versatile and lightweight structural system with a cross section of 10x10mm. It has endless building possibilities in desktop size and uses Mini-T, which is a smaller version of the T-Slot standard that is widely used in industrial automation. Each beam has a 8mm deep 2.5mm diameter threaded hole on both ends, sized for normal M3 screws. The profile system is very light, each millimeter of beam has a weight of only 0.136g. You can use MakerBeam to build the mechanical structure for robots, CNC projects, camera sliders and other cool projects! The official MakerBeam website has a big list of example projects.
