Servo Hitec HS-645MG

More Views

Servo Hitec HS-645MG
€41.98
Incl. 19% Tax, excl. Shipping Cost

Availability: In stock

OR
Description

Details

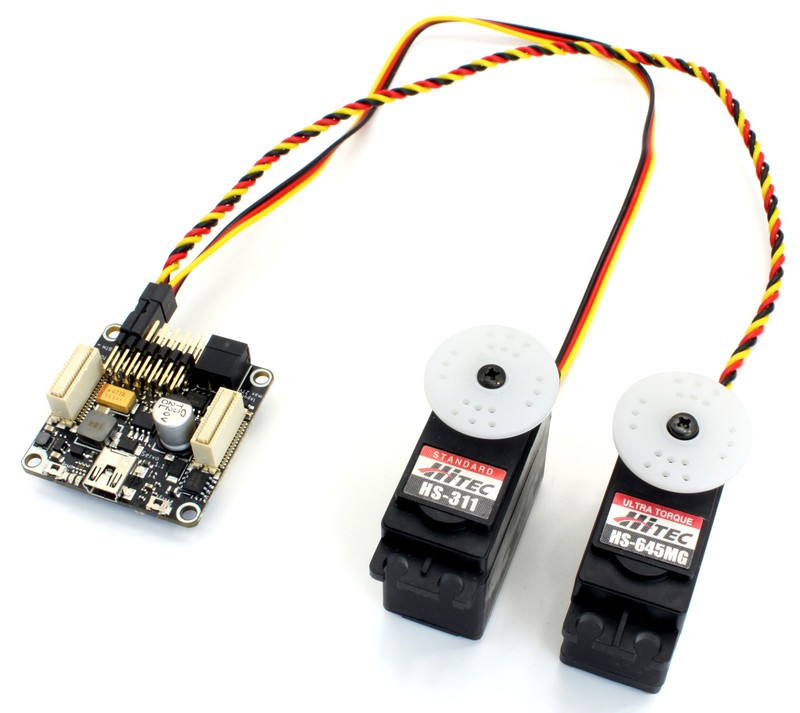

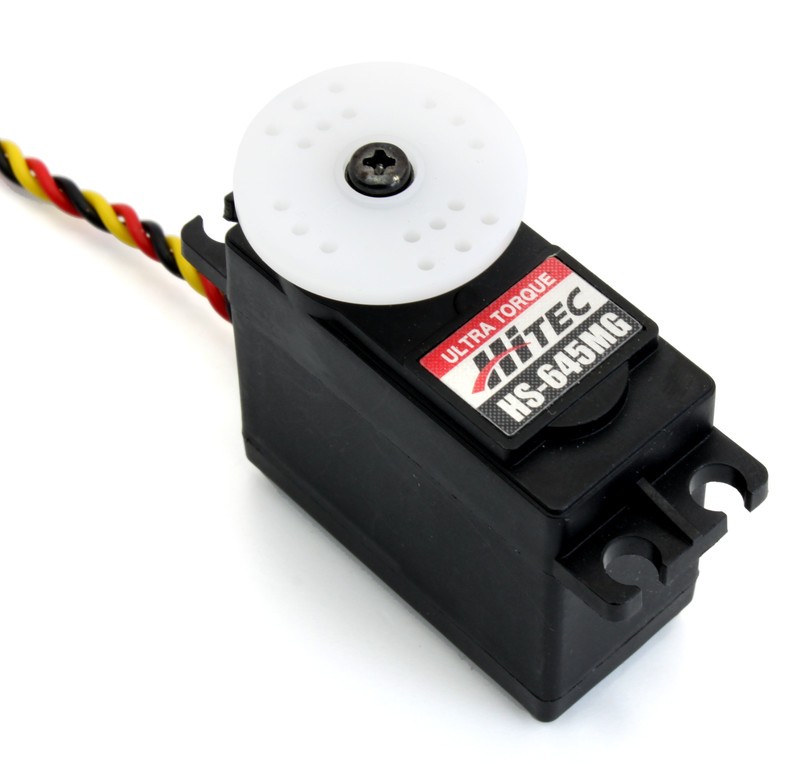

The HS-645MG is a high torque metal gear servo from Hitec with strong three-pole ferrite motor, heavy duty metal gear train and dual ball bearing-supported output shaft. It is compatible to the Servo Bricklet 2.0.

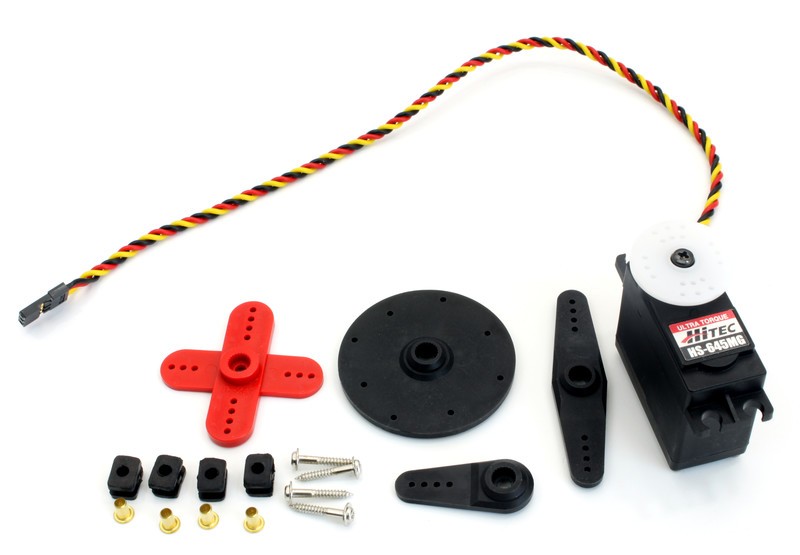

The servo comes including all of the accessories shown in the product photo.

Technical Specifications

Property Value
Speed (4.8V / 6.0V) 0.24 / 0.20sec @ 60°
Torque (4.8V / 6.0V) 77Ncm / 96Ncm
Idle Current (4.8V / 6.0V) 8.8mA / 9.1mA
Running Current (4.8V / 6.0V) 350mA / 450mA
Stall Current (4.8V / 6.0V) TBDmA / TBDmA
Direction Clockwise: 1500µsec to 1900µsec
Cable Length 30cm
Size 40 x 20 x 36.5mm
Weight 55g
