This Bricklet is deprecated. Is has been replaced by the CAN Bricklet 2.0. It is currently sold off with a large discount, but only as long as stock lasts.
The baudrate can be configured between 10kbit/s and 1Mbit/s. It is possible to apply filters to match for frames with a specific identifier.

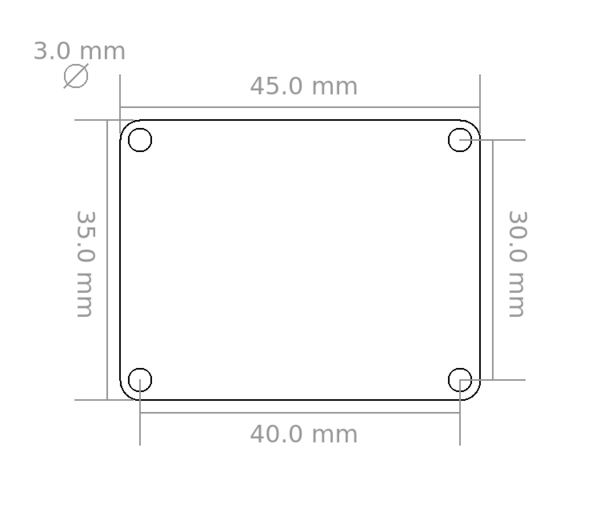

Property Value Current Consumption 30mW (6mA at 5V, idle) Baudrate 10kbit/s - 1Mbit/s Maximum Throughput 1000 frames per second * Filters Disabled / Accept All / Match / Match Data / Match Extended Dimensions (W x D x H) 45 x 35 x 14mm (1.77 x 1.38 x 0.55") Weight 9g
* 1000 frames per second equals to 44kbit/s to 128kbit/s depending on the size of the frames.
Comes Packaged With
- CAN Bricklet
- Chosen Bricklet Cable
- Chosen Mounting Kit
