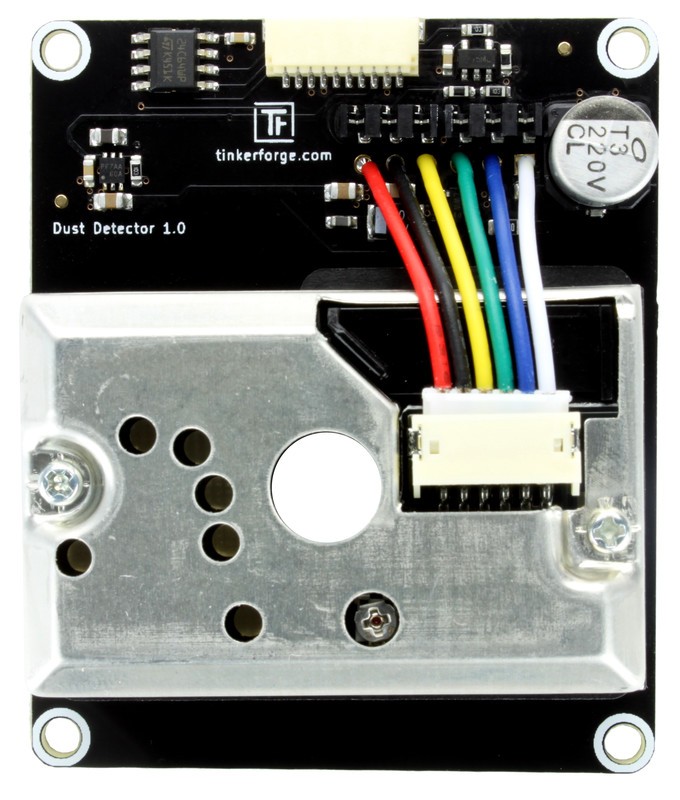

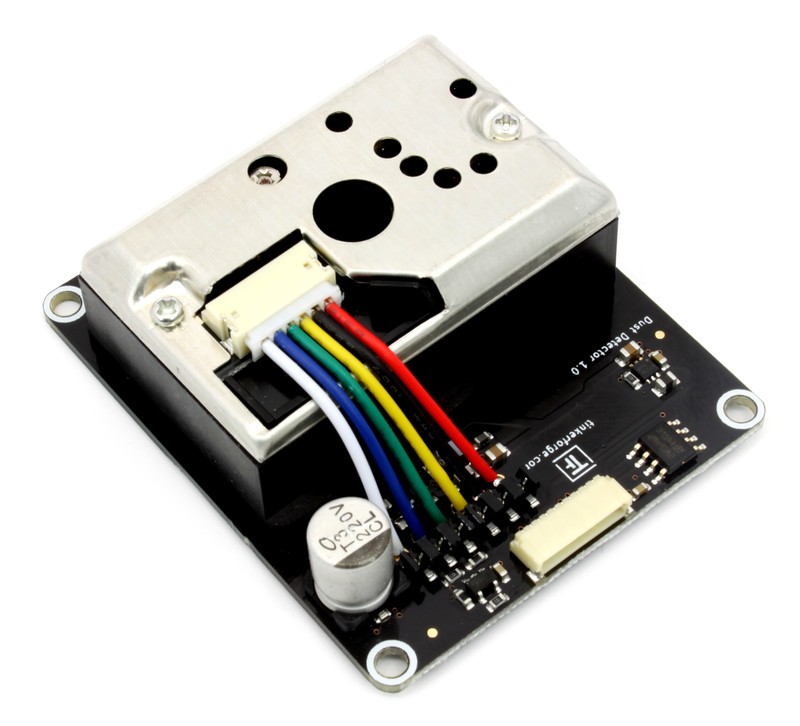

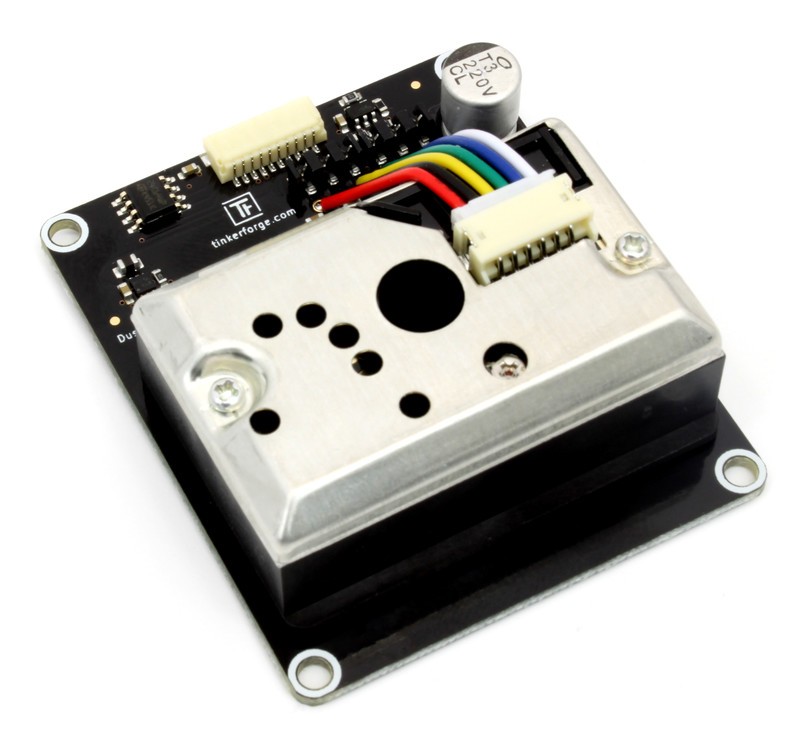

Dust Detector Bricklet

More Views

Dust Detector Bricklet

€0.00

Incl. 16% Tax, excl. Shipping Cost

Availability: In stock

  • Measures dust density between 0 and 500µg/m³
Dust Detector Bricklet   +€34.10

* Required Fields

Description

Details

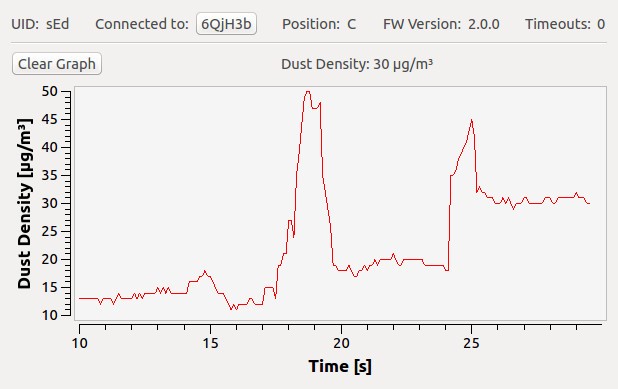

The Dust Detector Bricklet can be used to extend the features of Bricks with the capability to measure dust density. The measured dust density can be read out in µg/m³. With configurable events it is possible to react on changing dust density without polling.

Typical applications are measurements of cigarette smoke, smog, house dust, pollen, etc.

Technical Specifications

PropertyValue
Sensor GP2Y1010AU
Current Consumption 120mW (24mA at 5V)

Resolution 1µg/m³
Measurement Range 0-500µg/m³

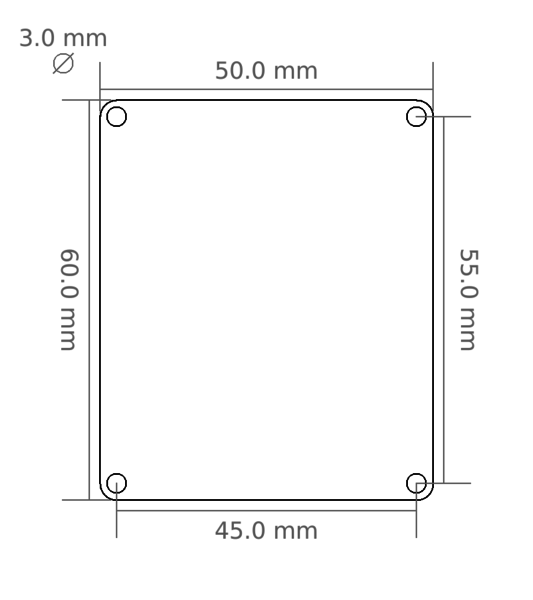

Dimensions (W x D x H) 60 x 50 x 20mm (2.36 x 1.97 x 0.79")
Weight 26g

Comes Packaged With

  • Dust Detector Bricklet
  • Dust Sensor
  • Chosen Bricklet Cable
  • Chosen Mounting Kit
