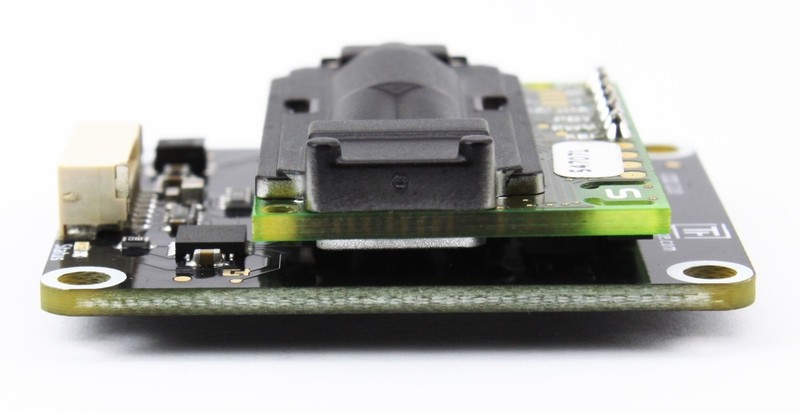

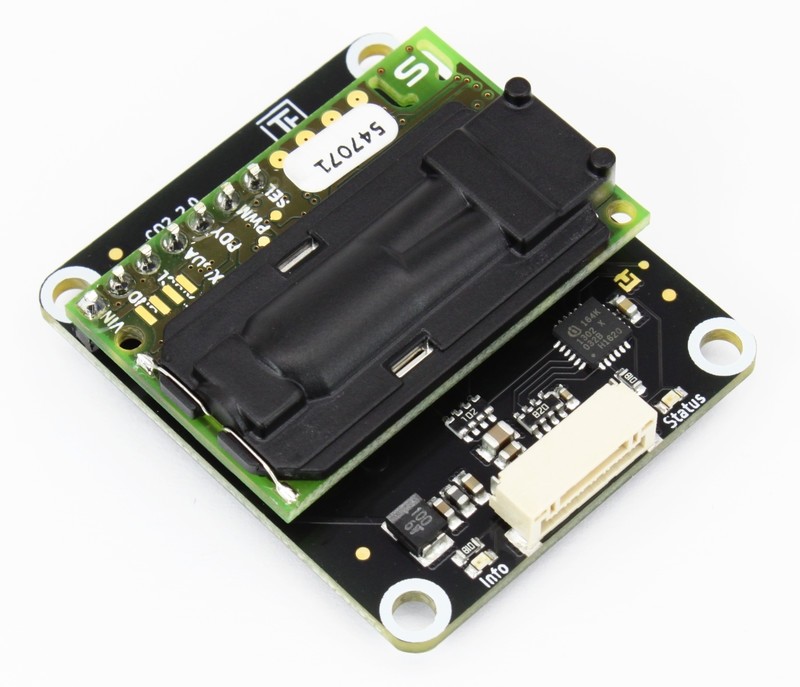

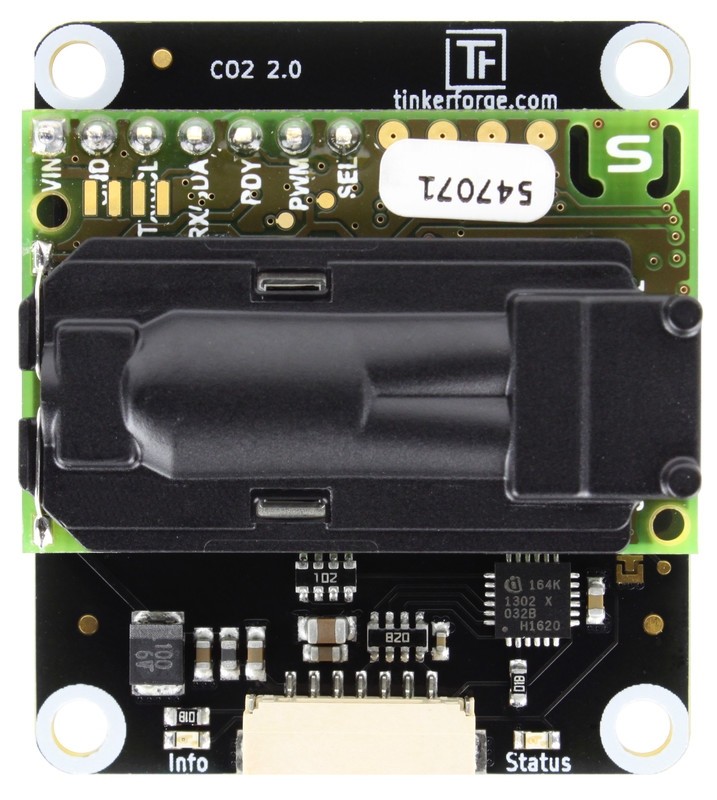

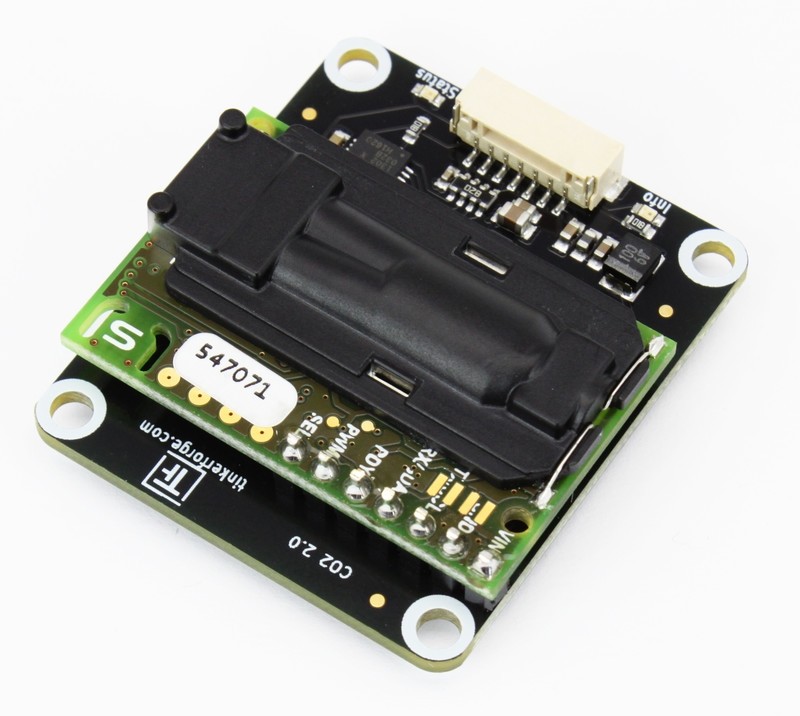

CO2 Bricklet 2.0

More Views

CO2 Bricklet 2.0

€0.00

Incl. 19% Tax, excl. Shipping Cost

Availability: In stock

  • Measures CO2 concentration from 400 to 10000ppm (parts per million)
  • High accuracy of ±30ppm (full-scale) and ±3% (of reading)
  • Measures temperature and humidity for compensation
  • Ambient air pressure can be applied for additional compensation
CO2 Bricklet 2.0   +€89.99

* Required Fields

Description

Details

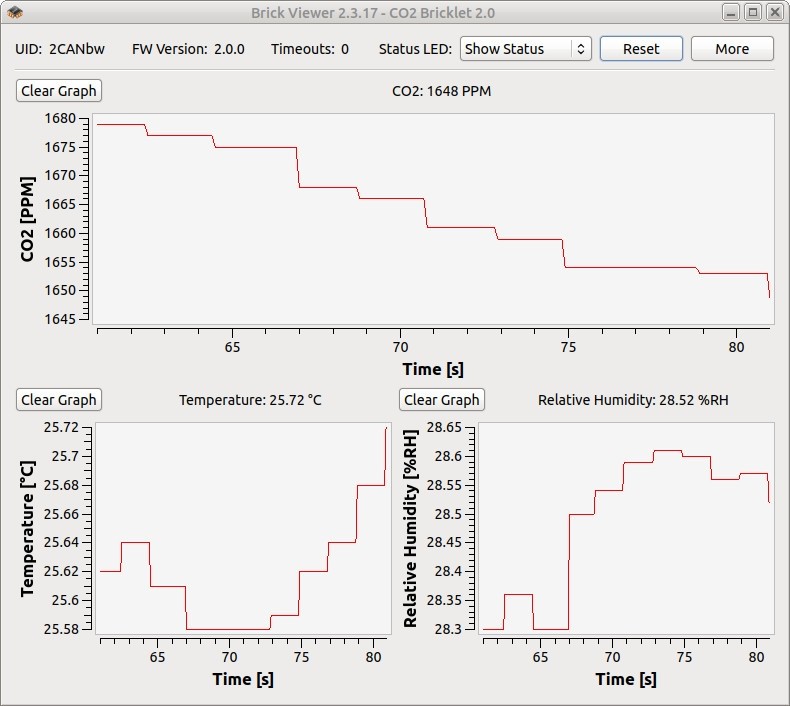

The CO2 Bricklet 2.0 can be used to extend the features of Bricks with the capability to measure CO2 concentration in the air. The measured CO2 concentration can be read out in ppm. With configurable events it is possible to react on changing CO2 concentration without polling.

The Bricklet also measures temperature and humidity. These are used internally for compensation and can additionally be read out.

It is possible to apply an ambient air pressure value to achieve further compensation and better CO2 concentration measurement.

The CO2 Bricklet 2.0 has a 7 pole Bricklet connector and is connected to a Brick with a 7p-10p Bricklet cable.

Technical Specifications

PropertyValue
Sensor Sensirion SCD30
Current Consumption (average 60mW (12mA at 5V)
Current Consumption (peak) 400mW (80mA at 5V)

CO2 Concentration Resolution 1ppm with range of 400ppm to 10000ppm
Temperature Resolution 0.01°C with range of -40°C to 70°c
Humidity Resolution 0.01%RH with range of 0%RH to 100%RH
CO2 Concentration Accuracy ±30ppm (full-scale), ±3% (of reading)
Temperature Accuracy ± (0.4°C + 0.023 × (T [°C] – 25°C))*
Humidity Accuracy ± 3 %RH
Measurement Frequency 0.5 measurements per second

Dimensions (W x D x H) 35 x 40 x 18mm (1.38 x 1.57 x 0.71")
Weight TBDg

* This is the temperature at the exact position of the sensor. If the Bricklet is used inside of an enclosure, the air around the Bricklet may heat up more than the ambient air. The Bricklet does have API to calibrate this kind of offset.

Comes Packaged With

  • CO2 Bricklet 2.0
  • Chosen Bricklet Cable
  • Chosen Mounting Kit
