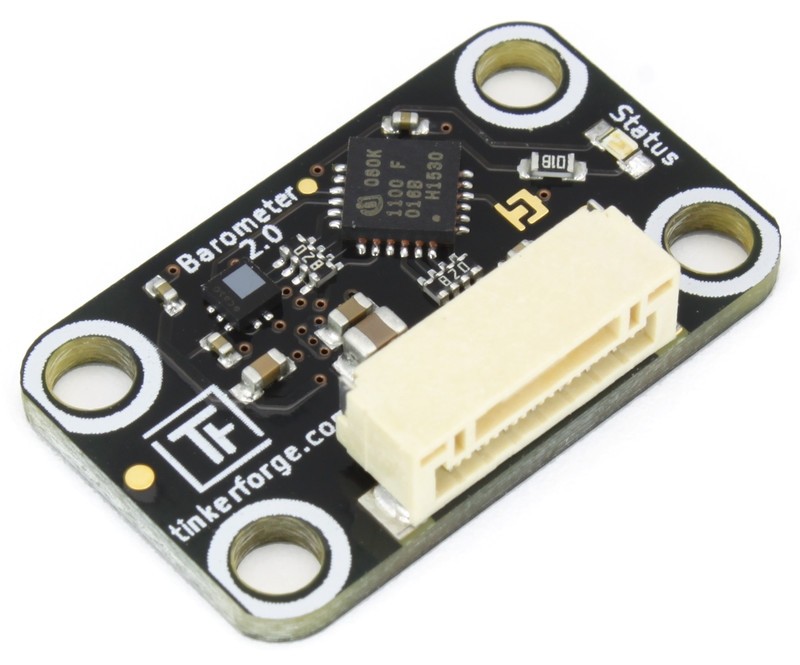

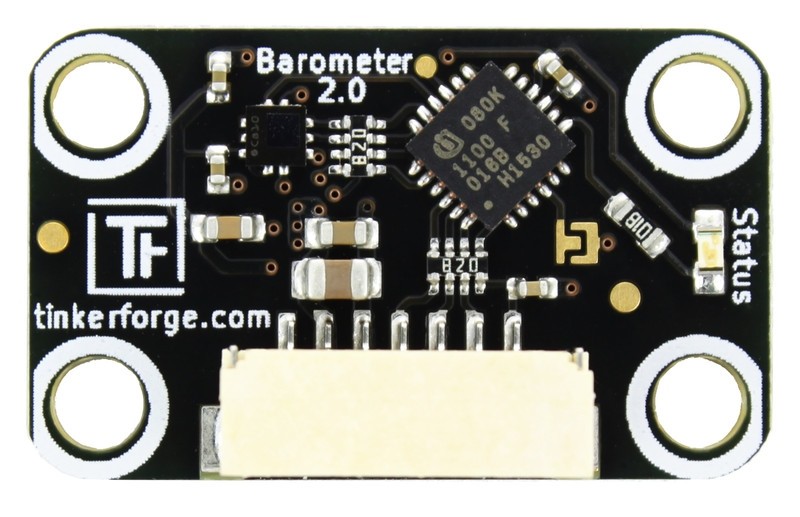

Barometer Bricklet 2.0

Barometer Bricklet 2.0

More Views

Barometer Bricklet 2.0

€0.00

Incl. 19% Tax, excl. Shipping Cost

Availability: In stock

  • Measures air pressure, temperature and altitude
  • Resolution 0.0075hPa / 6.25cm
  • Range 260 to 1260hPa
Barometer Bricklet 2.0   +€21.99

* Required Fields

Description

Details

The Barometer Bricklet 2.0 can be used to extend the features of Bricks by the capability to measure air pressure in range of 260 to 1260hPa with a resolution of 0.0075hPa. The measurement is temperature compensated internally.

The Bricklet is equipped with a LPS22HB sensor which can be used as an altimeter. Since the air pressure is changing significantly even over a short period of time the achievable accuracy is limited. One possible solution to achieve higher accuracy and stability of the altitude measurement is to perform sensor fusion with the sensor data of an IMU Brick (see Youtube video).

Technical Specifications

PropertyValue
Sensor LPS22HB
Current Consumption 30mW (6mA at 5V)

Pressure Range 260 - 1260hPa
Resolution 0.0075hPa / 6.25cm
Accuracy (0-65°C before OPC*) ±1.1hPa
Accuracy (0-65°C after OPC*) ±0.2hPa
Temperature Range -40 - +85°C
Resolution 0.01°C
Accuracy ±1.5°C

Dimensions (W x D x H) 25 x 15 x 5mm (0.98 x 0.59 x 0.19")
Weight 1.6g

* OPC = One-Point Calibration
