Remote Switch Bricklet 2.0

Remote Switch Bricklet 2.0

More Views

Remote Switch Bricklet 2.0

€0.00

Incl. 19% Tax, excl. Shipping Cost

Availability: In stock

  • Wireless house automation
  • Controls remote mains switches (supported devices)
  • Can control remote mains switches with dimming function
  • Can read out the remotes of remote mains switches
Remote Switch Bricklet 2.0   +€18.99

* Required Fields

Description

Details

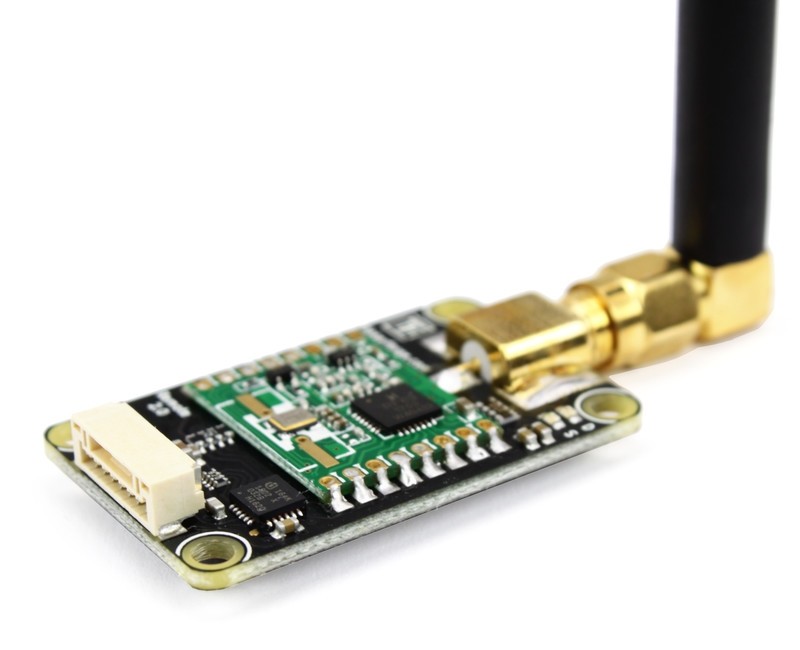

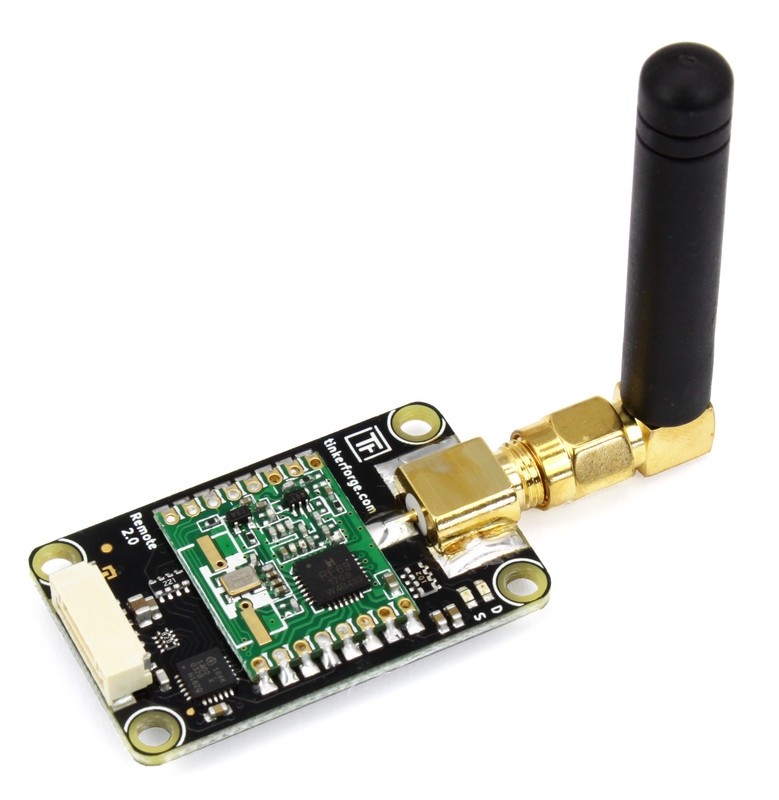

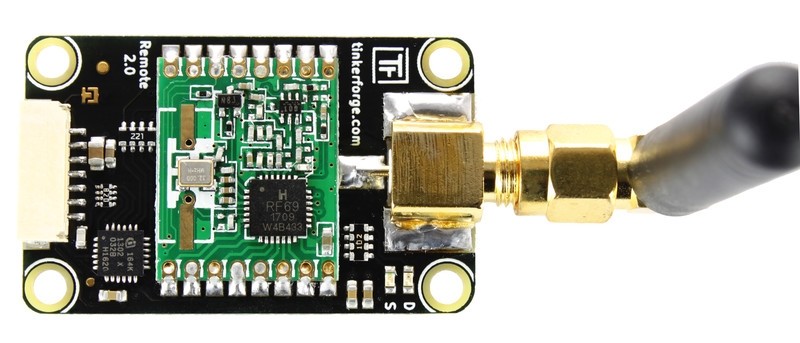

The Remote Switch Bricklet is equipped with a 433MHz radio module (433MHz SMA antenna is included). It can be used to extend Bricks by the possibility to control remote mains switches that are based on the PT2262 and HX2262 ICs.

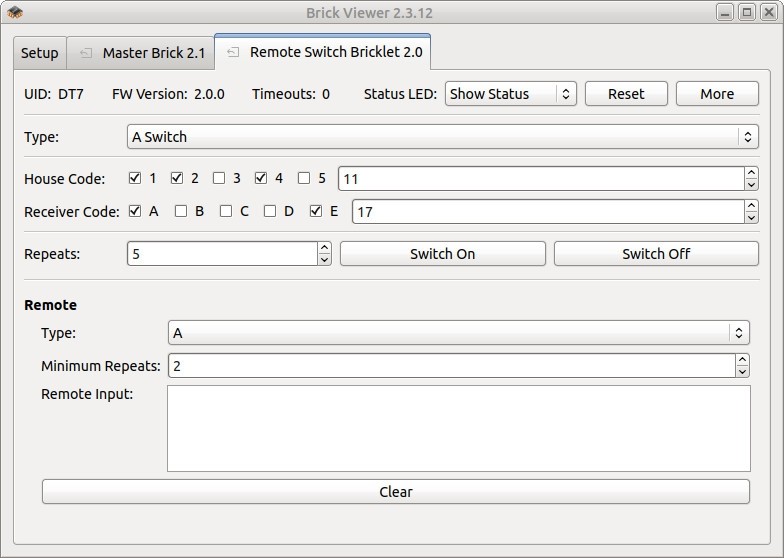

House code as well as receiver code can be configured with the API.

The Bricklet can also be used as a receiver for the remotes.

Technical Specifications

PropertyValue
Radio Module RFM69HW
Current Consumption 113mW (idle), 231mW (sending)

Radio Frequency 433MHz
Supported Remote Mains Switches All based on PT2262 and HX2262, (complete list)

Dimensions (W x D x H) 25 x 40 x 5mm (0.98 x 1.58 x 0.2")*
Weight 8g*

* without antenna

Comes Packaged With

  • Remote Switch Bricklet 2.0
  • 433MHz SMA Antenna
  • Chosen Bricklet Cable
  • Chosen Mounting Kit / Case
