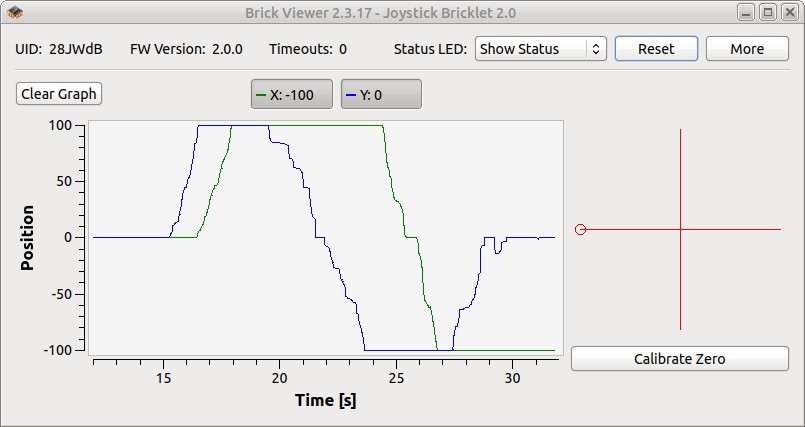

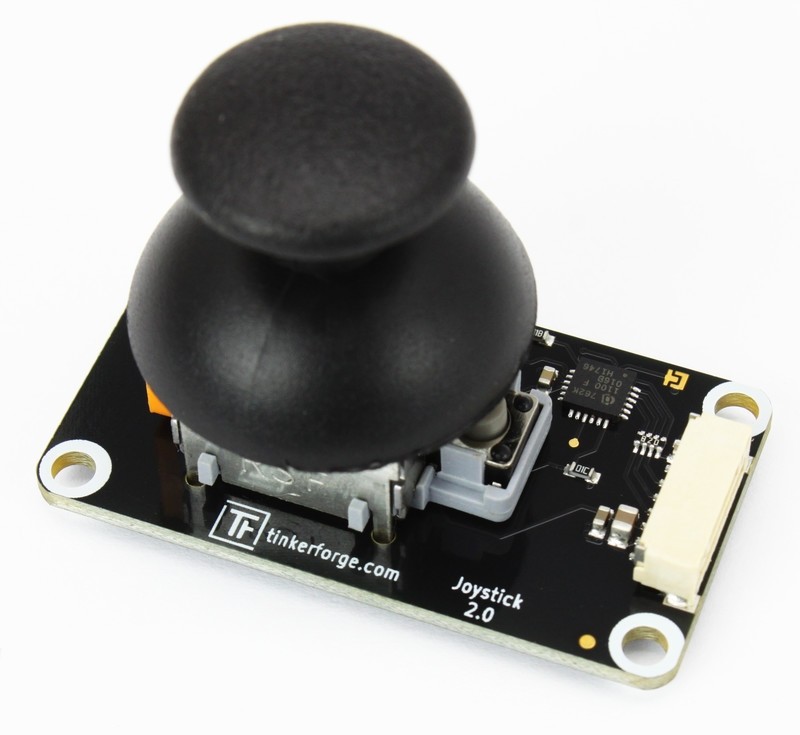

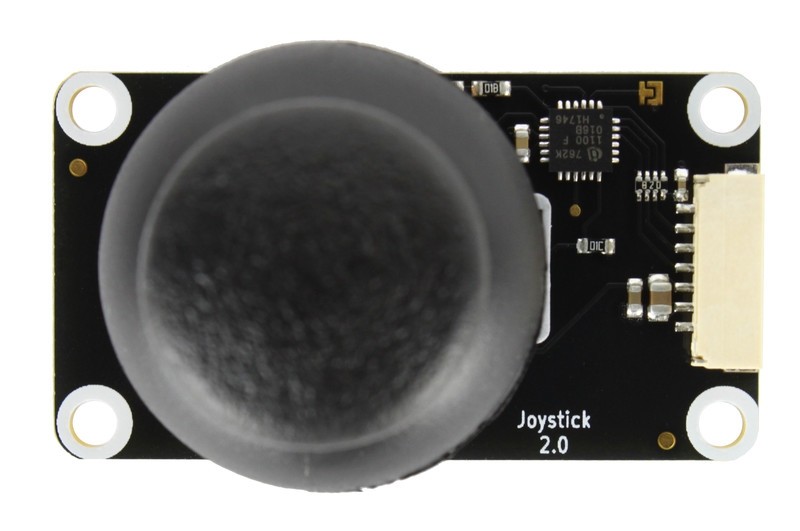

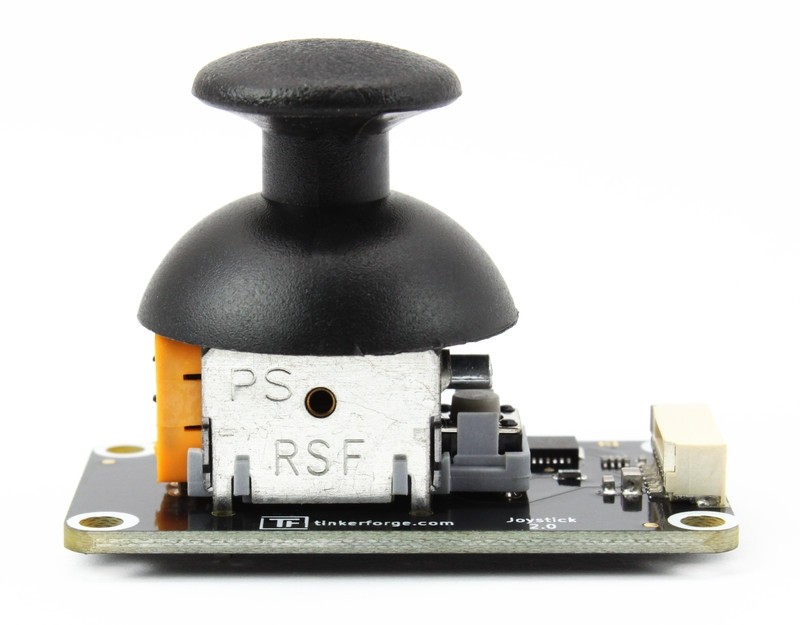

The Joystick is two directional and equipped with a push-button. You can read out the position of the stick (X/Y coordinates) and the state of the button.
With configurable events it is possible to react on changing positions and on button presses without polling.
The Joystick Bricklet 2.0 has a 7 pole Bricklet connector and is connected to a Brick with a 7p-10p Bricklet cable.
Property Value Joystick 2-axis with push-button Current Consumption 45mW (9mA at 5V) X/Y Position -100/100, 0=center Dimensions (W x D x H) 25 x 45 x 23mm (0.98 x 1.77 x 0.9")* Weight 15g
Comes Packaged With
