Line Bricklet

Line Bricklet

€0.00

Incl. 19% Tax, excl. Shipping Cost

Availability: In stock

  • Measures the reflectivity of a surface
  • Can be used to detect/follow lines
  • Can be used to measure distances of ca. 0-10mm
Line Bricklet   +€8.99

* Required Fields

Description

Details

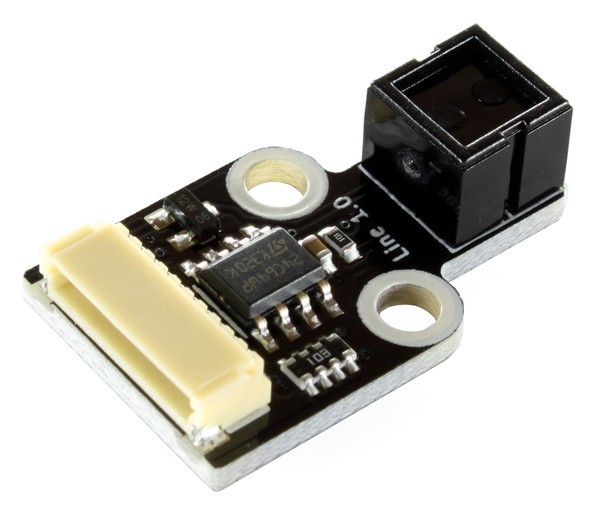

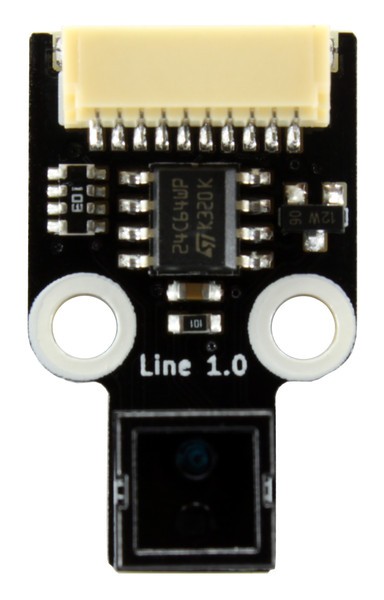

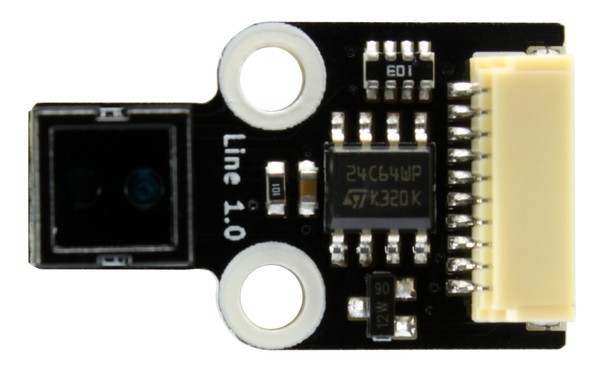

The Line Bricklet can extend Bricks by a reflective optical sensor. The sensor consists of an infrared emitter and a phototransistor. Output of the sensor is the reflectivity of a surface.

The reflectivity value can be used to detect and follow lines (e.g. a black line has a different reflectivity then a white background). The Line Bricklet can also be used to measure the distance to a surface, since the received light decreases with increased distance.

Technical Specifications

PropertyValue
Sensor CNY70
Current Consumption 33mA

Resolution 12bit
Emitter Wavelength 950nm

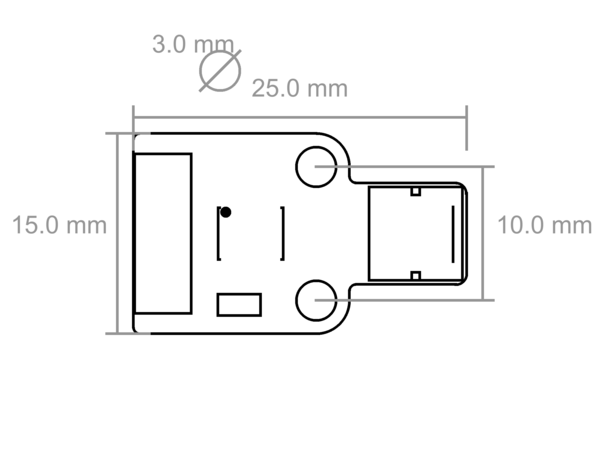

Dimensions (W x D x H) 25 x 15 x 9mm (0.98 x 0.59 x 0.35")
Weight 2g
