Color Bricklet 2.0


Incl. 19% Tax, excl. Shipping Cost

Availability: In stock

  • Measures color (RGB), color temperature and illuminance (16bit resolution each)
  • Equipped with switchable LED for defined illumination and color temperature
Color Bricklet 2.0   +€16.99

* Required Fields

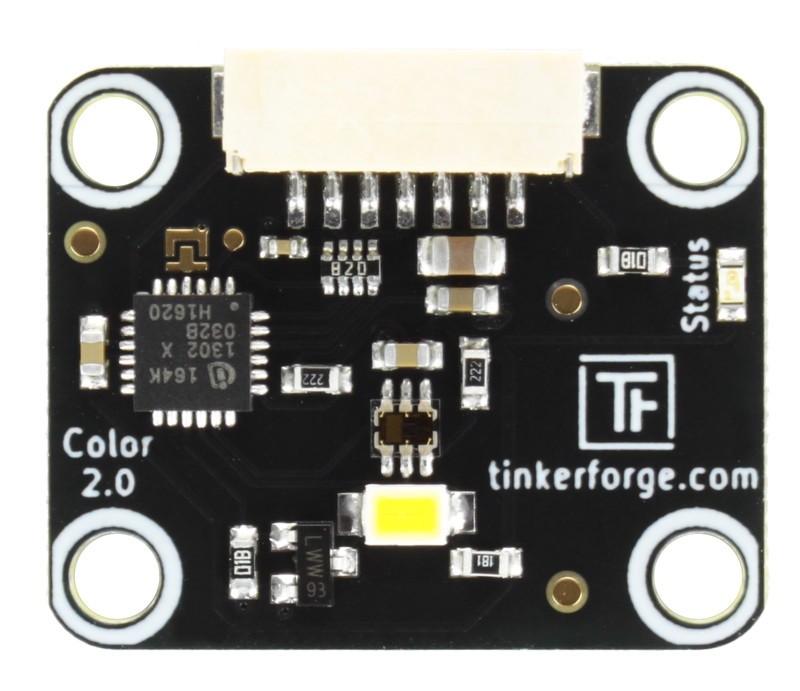

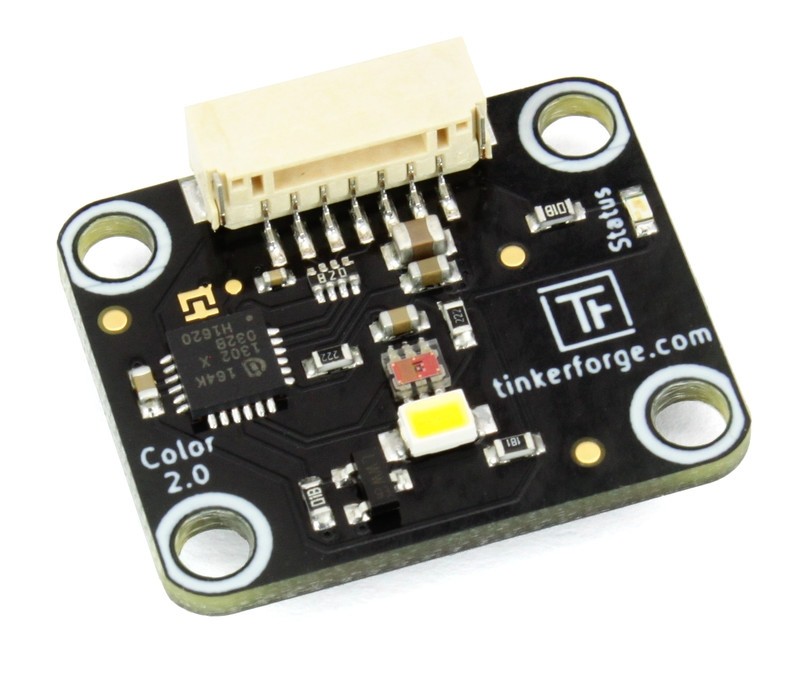

The Color Bricklet 2.0 can be used to extend the features of Bricks with the capability to measure color, color temperature and illuminance of a light source. Thus the Bricklet can measure the color of an object via its reflected light. To create a defined illumination and color temperature the Bricklet is equipped with an API switchable LED.

The Bricklet can be used for many purposes, e.g. sorting of objects by their color.

Chart Responsivity / Wavelength

The sensor is equipped with color filters for the colors red, green and blue (RGB). In the chart above the responsivity of the sensor in the given color range is shown. Additional to the color information (RGB) a fourth value called "clear value" (C) is measured. This is the sensors value without any color filter. Each value of RGB and C is measured as 16bit value. From these sensor values the Bricklet computes two additional values: illuminance and color temperature each with 16bit resolution.

Technical Specifications

Sensor TCS34725
Current Consumption LED off: 30mW (6mA at 5V), LED on: 50mW (10mA at 5V)
Dynamic Range 3800000:1
Color Resolution (R,G,B,C) 16bit each (0-65535)
Color Temperature Resolution 16bit (0-65535)
Illuminance Resolution 16bit (0-65535)
Dimensions (W x D x H) 25 x 20 x 5mm (0.98 x 0.79 x 0.19")
Weight 2g

Comes Packaged With

  • Color Bricklet 2.0
  • Chosen Bricklet Cable
  • Chosen Mounting Kit
