Outdoor Weather Bricklet

More Views

€0.00

Incl. 19% Tax, excl. Shipping Cost

Availability: In stock

Receives data from outdoor weather station and indoor sensors
Measures Temperature, Humidity, Wind/Gust speed, Wind direction and Rainfall
Can use up to 255 weather stations/sensors simultaneously

Bricklet*: Outdoor Weather Bricklet +€14.99
Qty:
Bricklet Cable 7p-7p
for Master Brick 3.1, HAT (Zero) Brick and Isolator Bricklet [help?]: Qty:
Mounting Kit / Case: Qty:
Sensors: Qty:

* Required Fields

Qty:

Description

Details

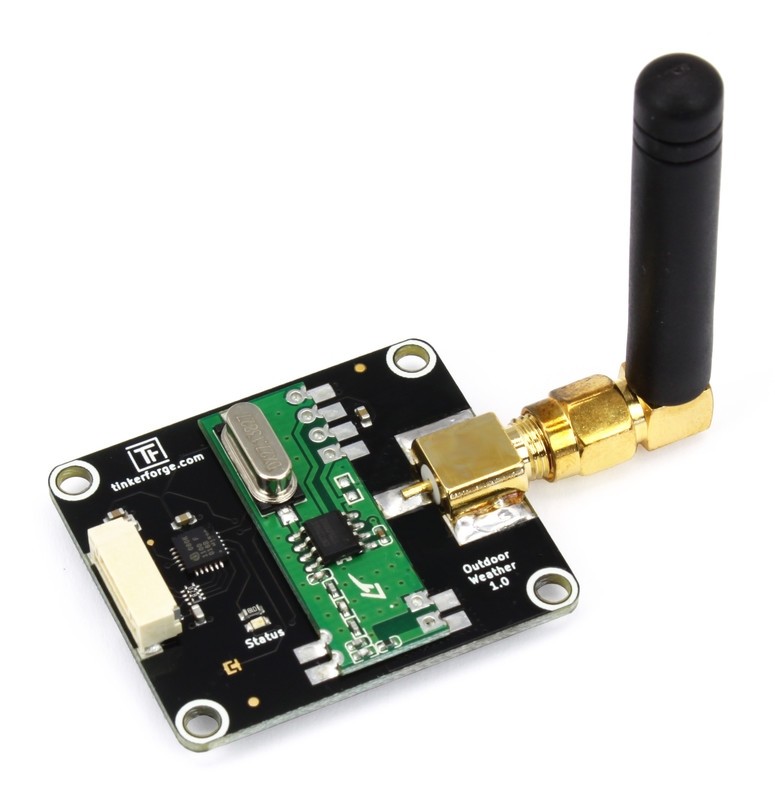

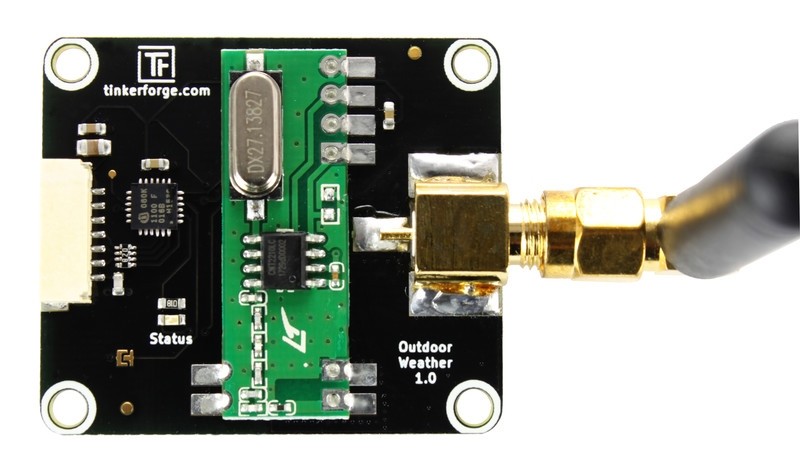

The Outdoor Weather Bricklet is equipped with a 433MHz receiver capable of receiving data from outdoor weather stations. It can be connected to a Brick.

It currently supports Outdoor Weather Station WS-6147 which measures

Temperature (°C)
Humidity (%RH)
Wind/Gust speed (m/s)
Wind direction (16 directions)
Rainfall (mm)

and Temperature/Humidity Sensor TH-6148 which measures

Temperature (°C)
Humidity (%RH)

The Outdoor Weather Station WS-6147 is meant to be put outside (somewhere where it can measure the rain/wind). The TH-6148 sensor can be used inside or outside. You can use up to 255 Outdoor Weather Stations and up to 255 Sensors simultaneously.
