This Bricklet is deprecated. Is has been replaced by the Joystick Bricklet 2.0. It is currently sold off with a large discount, but only as long as stock lasts.

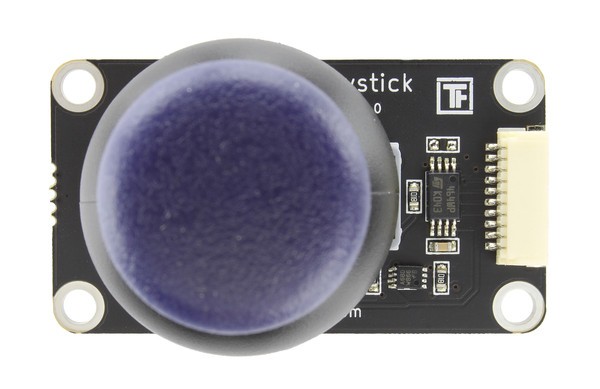

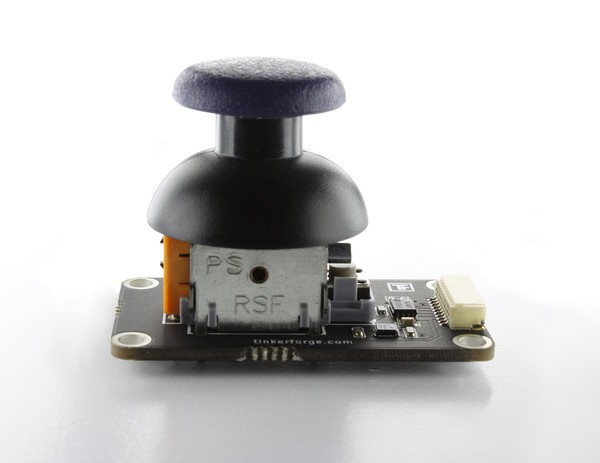

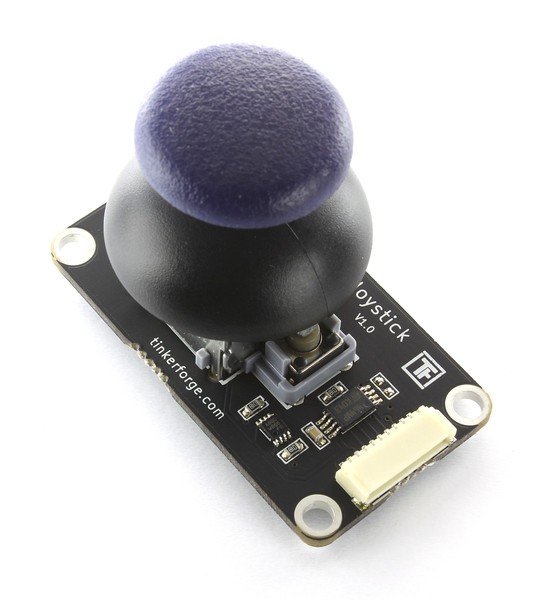

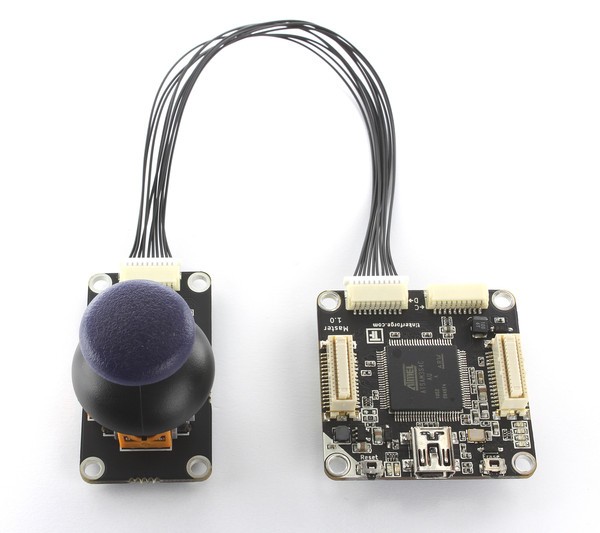

The Joystick Bricklet can be used to extend the features of Bricks by joystick functionality.

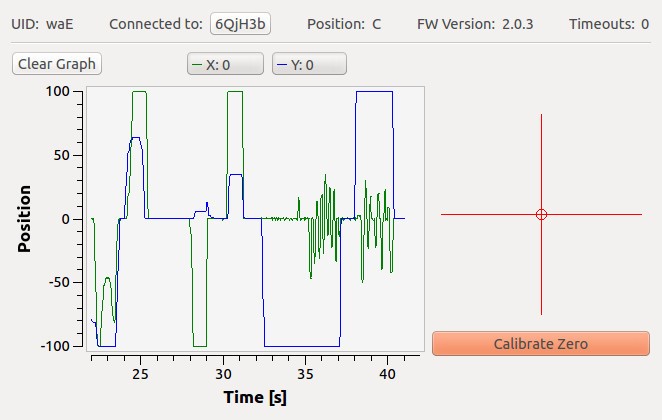

The Joystick is two directional and equipped with a push-button. You can read out the position of the stick (X/Y coordinates) and the state of the button. With configurable events it is possible to react on changing positions and an button presses without polling.
You can use this device to control robots, games etc.

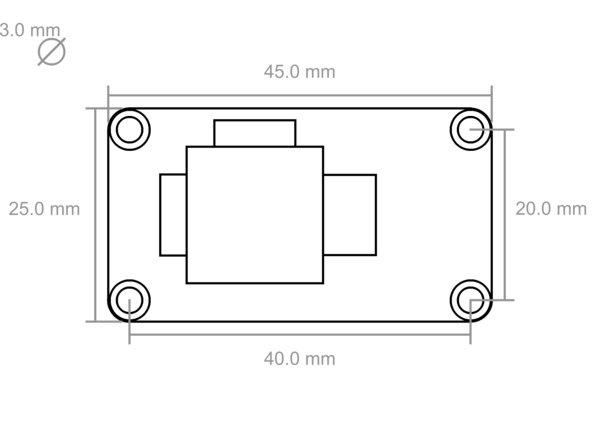

Property Value Joystick 2-axis with push-button Current Consumption 2mA X/Y Position -100/100, 0=center Dimensions (W x D x H) 25 x 45 x 23mm (0.98 x 1.77 x 0.9”)* Weight 12g*
* without knob
Comes Packaged With
- Joystick Bricklet
- Black Knob
- Chosen Bricklet Cable

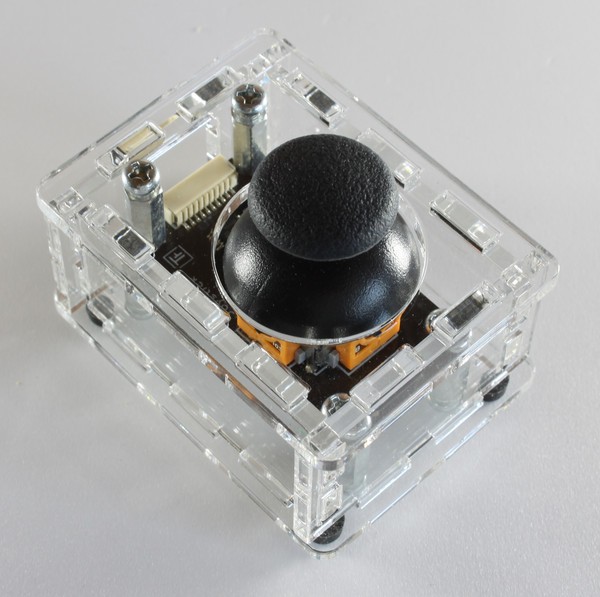

- Chosen Mounting Kit / Case
