RGB LED Matrix 8X32

More Views

RGB LED Matrix 8X32
€19.99
Incl. 19% Tax, excl. Shipping Cost

Availability: In stock

OR
Description

Details

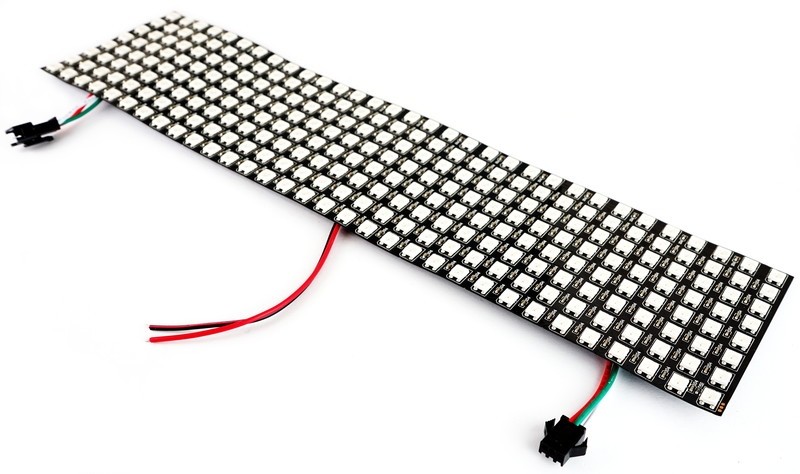

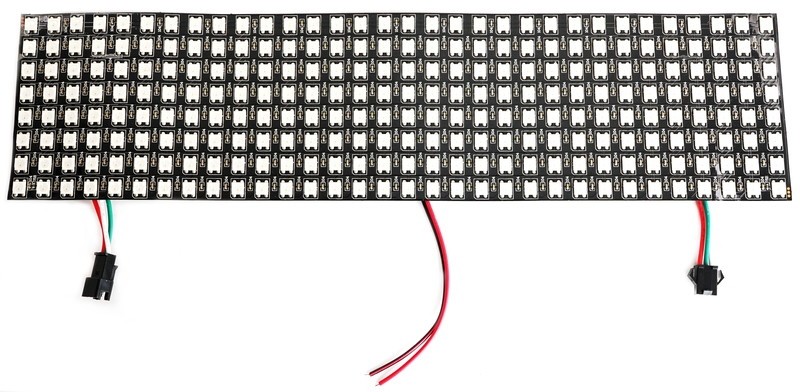

The RGB LEDs are mounted on a flexible panel with a size of 8X32. They can be controlled individually with the LED Strip Bricklet.

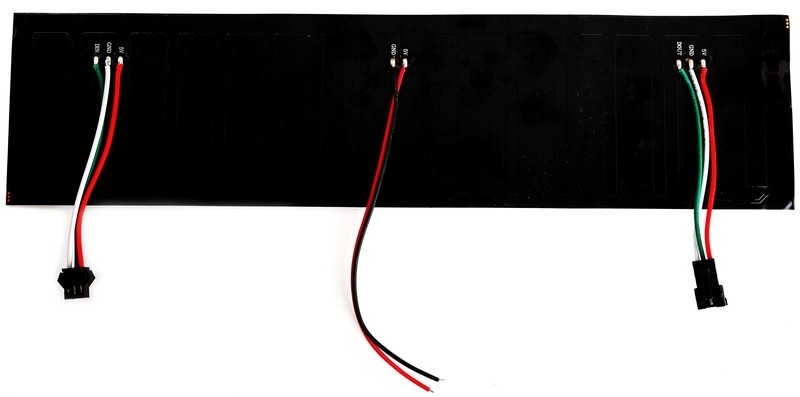

Each panel has two 3 pole connectors for the data bus and power wires that allow to connect multiple strips in a row. A matching adapter cable is included. The wiring is described here.

Technical Specifications

PropertyValue
Number of Pixels 256
Matrix Size 8x32
Driver IC WS2812B
Supply Voltage 5V
Current Consumption 60mA (per pixel at full brightness)
Dimensions (W x D) 80mm x 320mm (3.15 x 12.59")
