LED Strip Bricklet 2.0

More Views

LED Strip Bricklet 2.0


Incl. 19% Tax, excl. Shipping Cost

Availability: In stock

  • Controls up to 2048 RGB or 1536 RGBW LEDs
  • All LEDs can be switched independently
  • Update rate of up to 100Hz for each LED possible
LED Strip Bricklet 2.0   +€14.99

* Required Fields

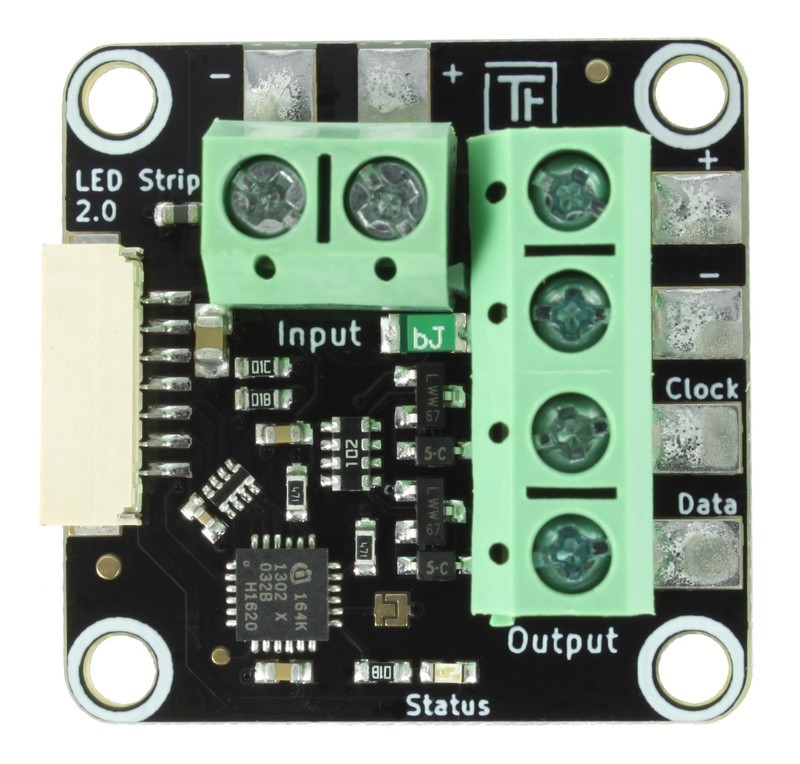

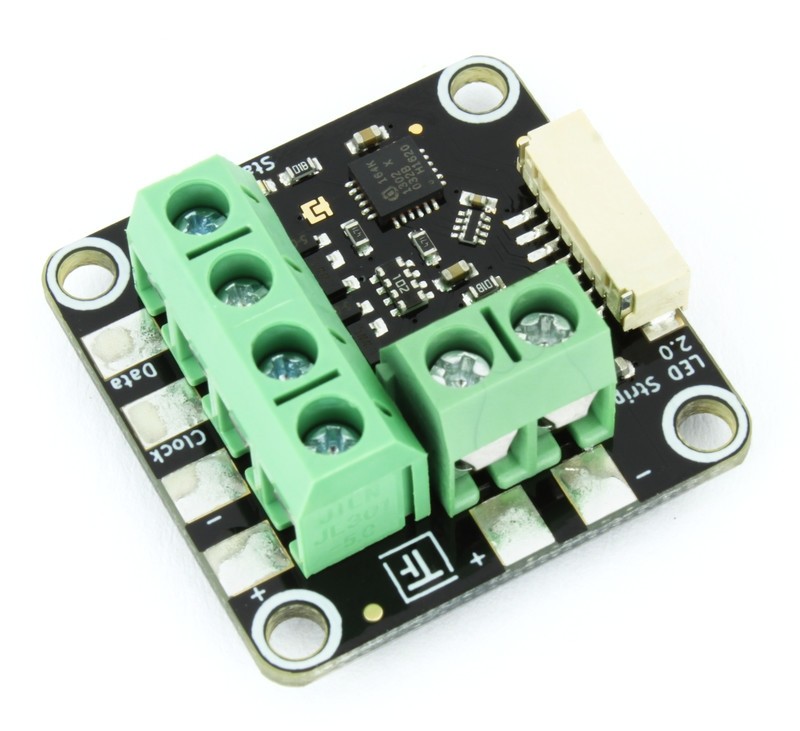

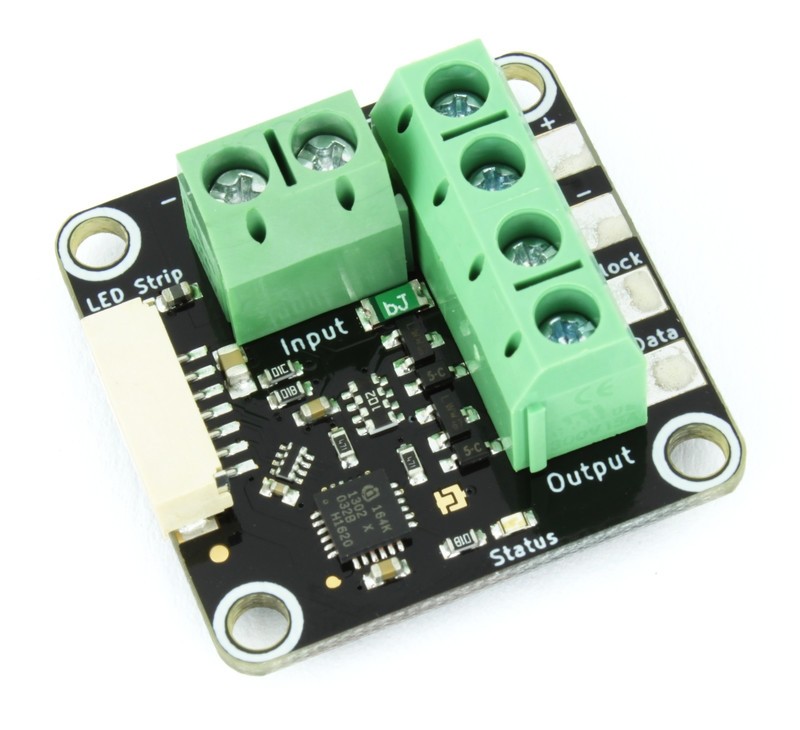

The LED Strip Bricklet 2.0 can be used to control LED strips and LED pixels that are equipped with the WS2801, WS2811, WS2812/SK6812 (NeoPixel RGB), SK6812RGBW (NeoPixel RGBW), LPD8806 or APA102 (DotStar) LED driver. It is possible to independently control 2048 RGB or 1536 RGBW LEDs (6144 individual LEDs) over the connected Brick.

The API allows to change all LEDs at the same time with a fixed update rate of up to 100Hz. A possible application can be found in the Starter Kit: Blinkenlights: Video

Note: The maximum update rate depends on type and number of attached LEDs (see here).

Technical Specifications

Supported LED Drivers
WS2801, WS2811, WS2812/SK6812 (NeoPixel RGB), WS2813, WS2815,
SK6812RGBW (NeoPixel RGBW), LPD8806 and APA102 (DotStar)
Current Consumption 64mW (12.8mA at 5V)
Resolution 8bit per LED
Maximum Number of LEDs 6144 (2048 RGB or 1536 RGBW LEDs)
Maximum Update Rate 100 updates per second

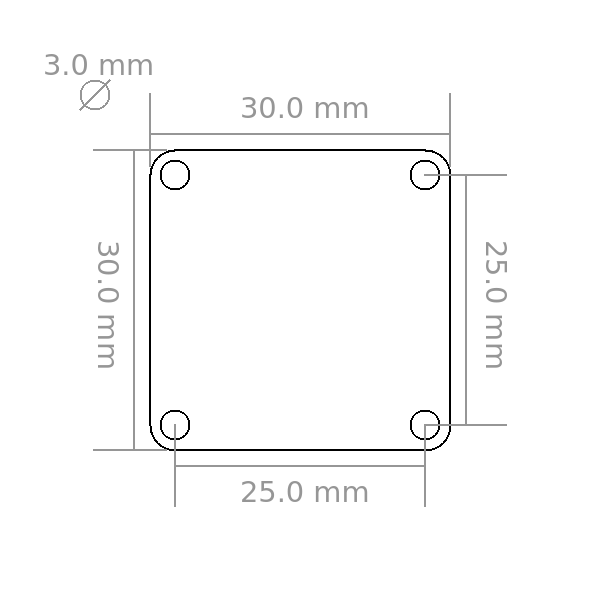

Dimensions (W x D x H) 30 x 30 x 12mm (1.18 x 1.18 x 0.47")
Weight 8.1g

Comes Packaged With
