Temperature IR Bricklet 2.0

More Views

Temperature IR Bricklet 2.0


Incl. 19% Tax, excl. Shipping Cost

Availability: In stock

  • Measures contactless object temperature from -70°C to 380°C
  • Configurable emissivity
  • Measures ambient temperature from -40°C to 85°C
  • Output in 0.1°C steps (16bit resolution)
Temperature IR Bricklet 2.0   +€27.99

* Required Fields

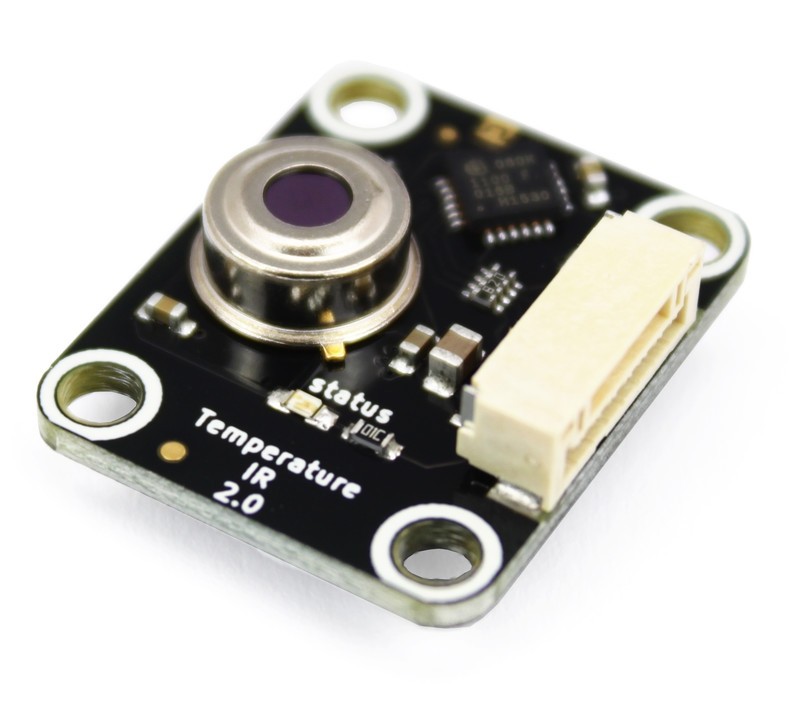

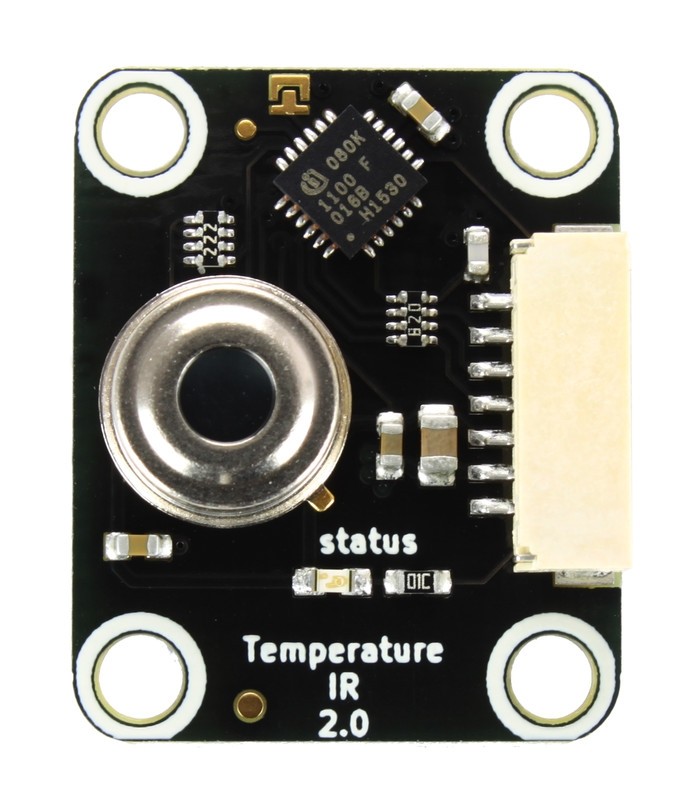

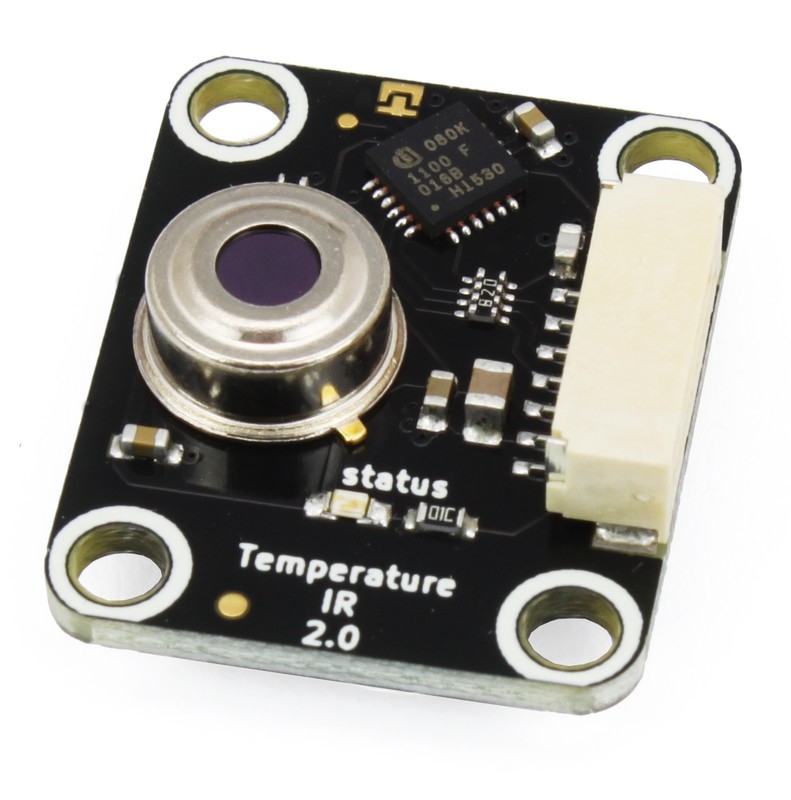

The Temperature IR Bricklet 2.0 is equipped with a infrared thermometer. It can extend the features of a Brick with the capability of contactless temperature measurement.

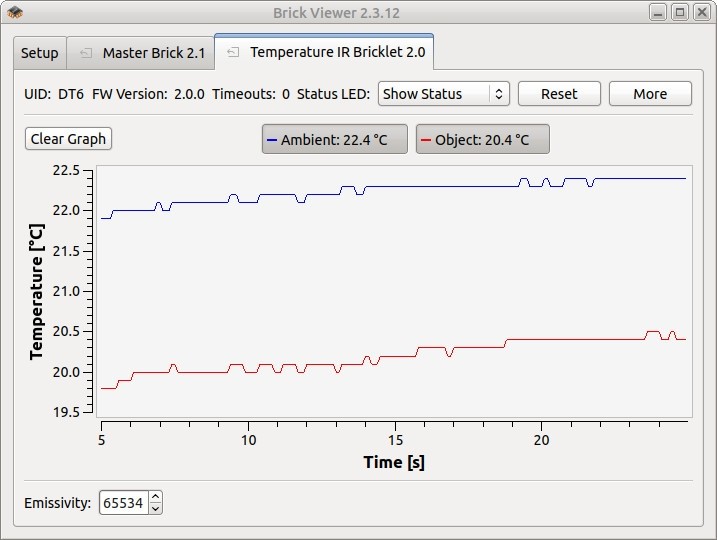

You can read out object temperature and ambient temperature in °C. It is possible to define the emissivity of the object you want to measure (most infrared thermometers can't do this) . With configurable events it is possible to react on changing temperatures without polling.

Technical Specifications

Sensor MLX90614ESF-BAA
Current Consumption 32mA
Object Temperature -70°C to 380°C in 0.1°C steps (16bit resolution)
Ambient Temperature -40°C to 85°C in 0.1°C steps (16bit resolution)
Accuracy 0.5°C over wide temperature range
Dimensions (W x D x H) 25 x 20 x 7mm (0.98 x 0.79 x 0.27")
Weight 3g

Comes Packaged With
