DC Bricklet 2.0

More Views

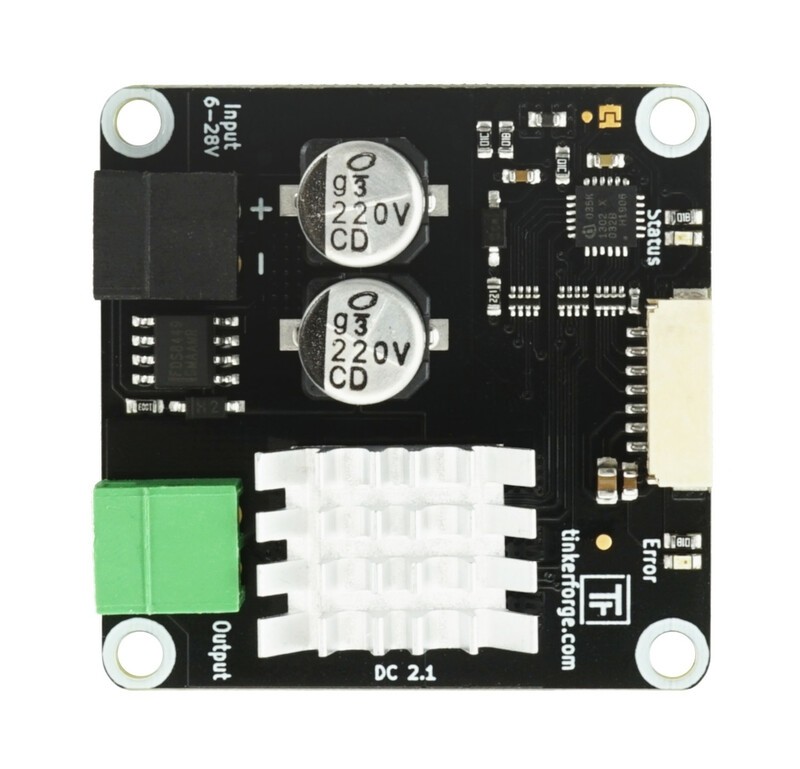

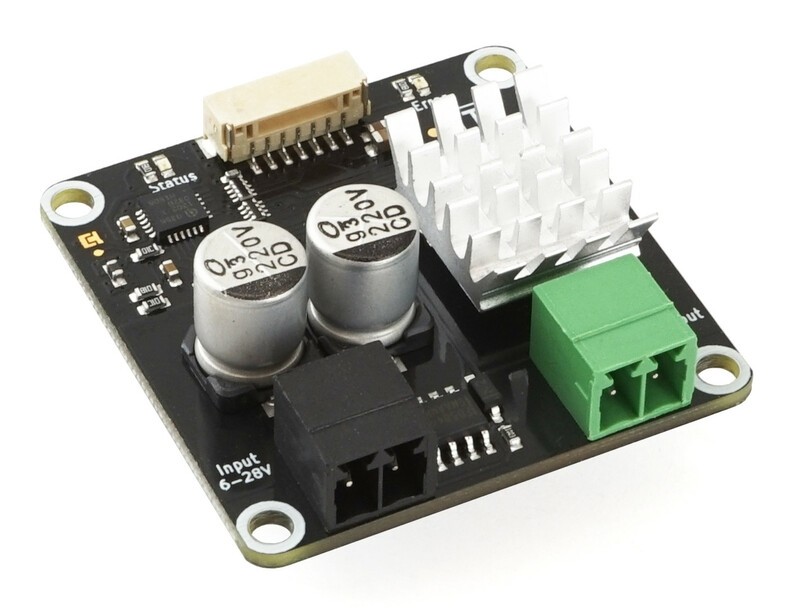

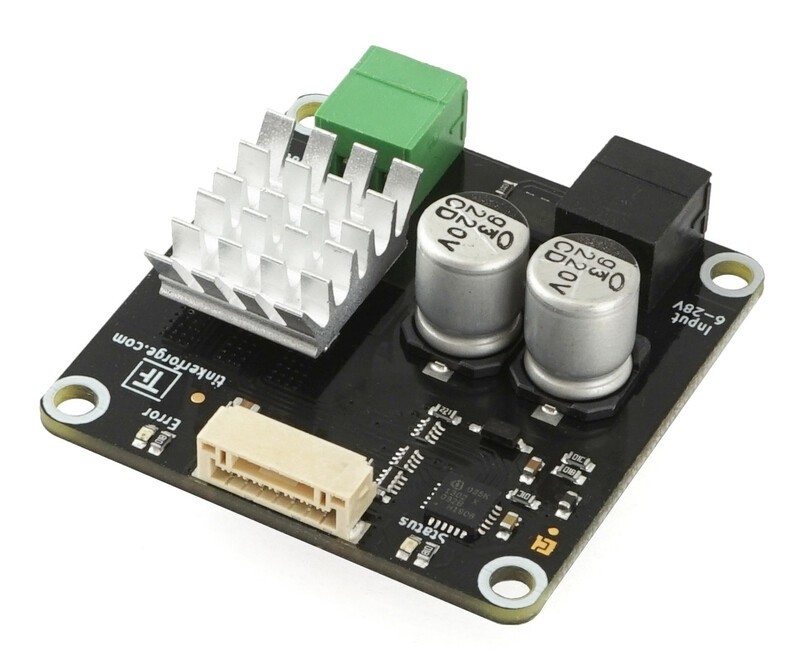

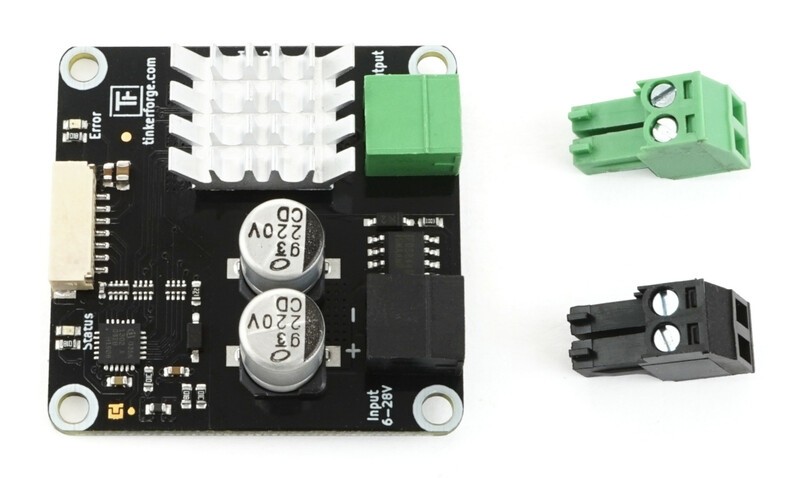

DC Bricklet 2.0

€0.00

Incl. 19% Tax, excl. Shipping Cost

Availability: In stock

Controls one brushed DC motor with max. 28V and 5A (peak) over USB
API for many programming languages available
Direction, velocity and acceleration controllable
Configurable overtemperature and overcurrent callbacks

Bricklet*: DC Bricklet 2.0 +€32.99
Qty:
Bricklet Cable 7p-7p
for Master Brick 3.1, HAT (Zero) Brick and Isolator Bricklet [help?]: Qty:
Mounting Kit: Qty:

* Required Fields

Qty:

Description

Details

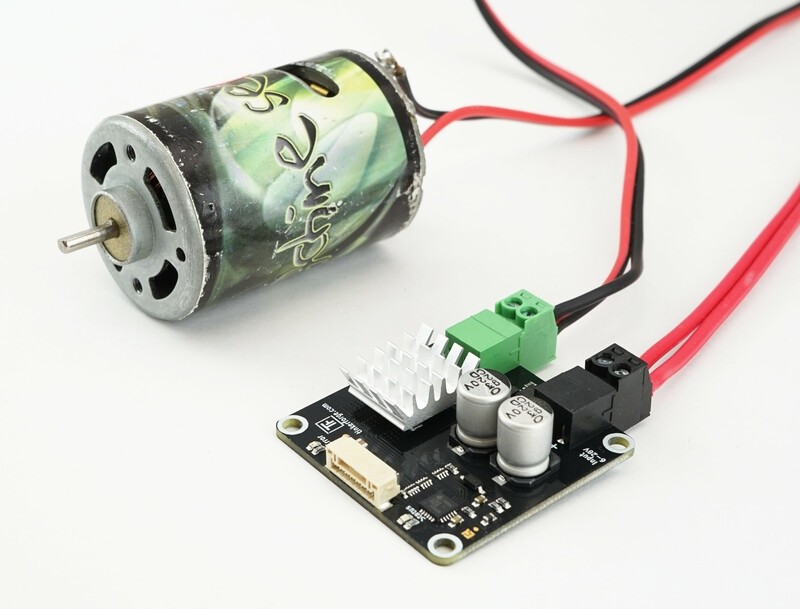

With the DC Bricklet 2.0 you are able to control one DC brushed motor (max. 28V and 5A (peak)) over USB. With the provided API for many programming languages you can control the direction, velocity and acceleration of the connected motor.

Besides methods to control the connected motor the API provide the possibility to measure current consumption and the voltage of the power supply. In case of overtemperature and overcurrent callbacks can be triggered. These can be used to react properly in your own program to these events.

The drive mode can be switched between Drive/Brake and Drive/Coast (see Drive Modes).

Technical Specifications

Property	Value
Current Consumption	50mW (10mA at 5V) without motor

Maximum Motor Current	Peak: 5A Continous: > 3A (depends on cooling)
Minimum/Maximum Input Voltage	6V/28V
PWM Frequency	Configurable, 1-20kHz, default 15kHz
Velocity	-32767 to 32767, full reverse to full forward, 0=stop
Acceleration	0 to 65535, velocity/s, increment for velocity/s

Dimensions (W x D x H)	40 x 40 x 15mm (1,57 x 1,57 x 0,59")
Weight	12g
