Dual Button Bricklet 2.0

Dual Button Bricklet 2.0

More Views

Dual Button Bricklet 2.0

€0.00

Incl. 19% Tax, excl. Shipping Cost

Availability: In stock

  • Two tactile buttons with built-in blue LEDs
  • LED auto-toggle possible
Dual Button Bricklet 2.0   +€9.99

* Required Fields

Description

Details

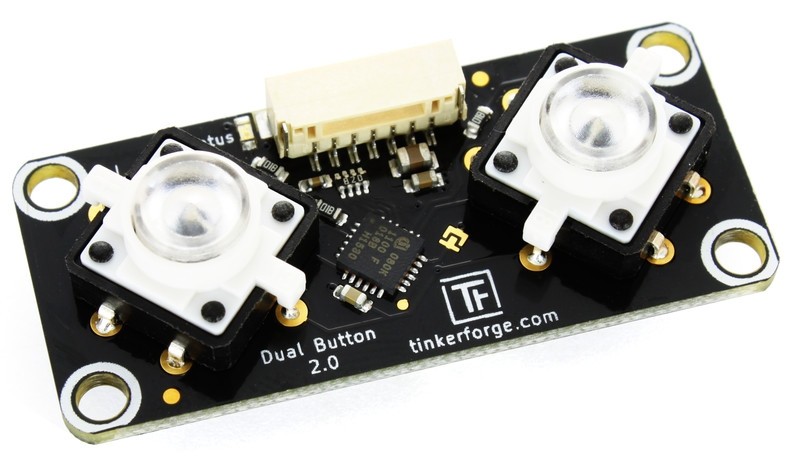

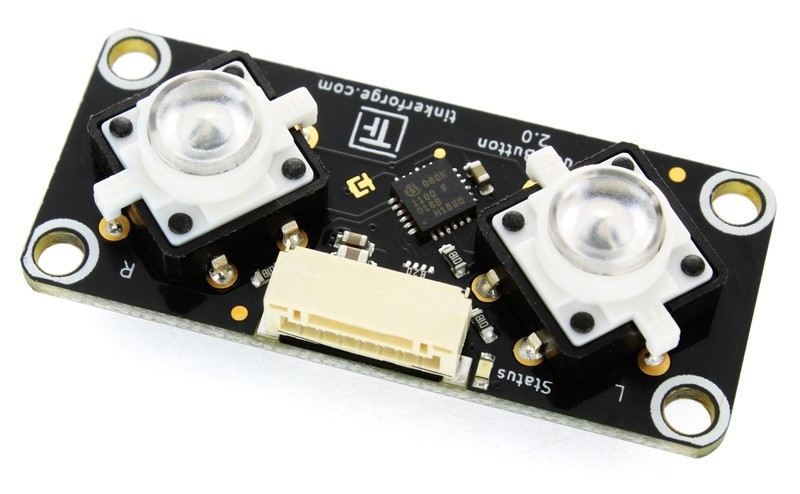

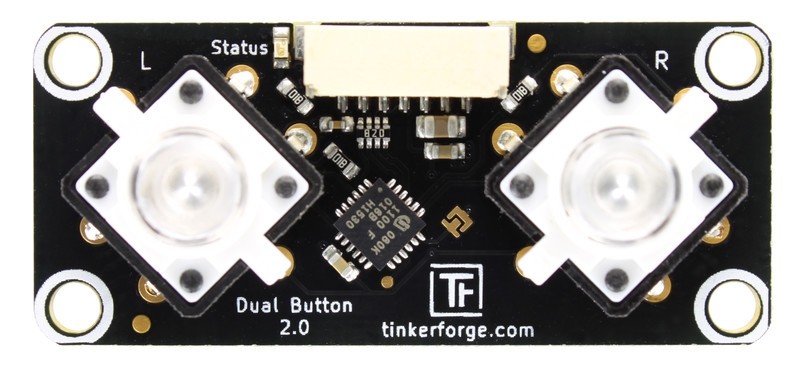

The Dual Button Bricklet 2.0 is equipped with two buttons and can extend Bricks. Both buttons have a built-in blue LED. You can read the current state of the button (pressed/released) and of the LED (on/off). You can turn the LED on/off yourself or enable auto-toggle. In auto-toggle mode the LEDs are toggled between on/off with each button press.

It is also possible to use events. This allows to react to button presses without polling.

The Dual Button Bricklet 2.0 has a 7 pole Bricklet connector and is connected to a Brick with a 7p-10p Bricklet cable.

Technical Specifications

PropertyValue
Current Consumption 27mW (5.4mA at 5V) + 3mW per active LED

Button Type Tactile Button with LED
Button Operating Force 150gf
Button Travel Distance 2.5mm
LED Color Blue

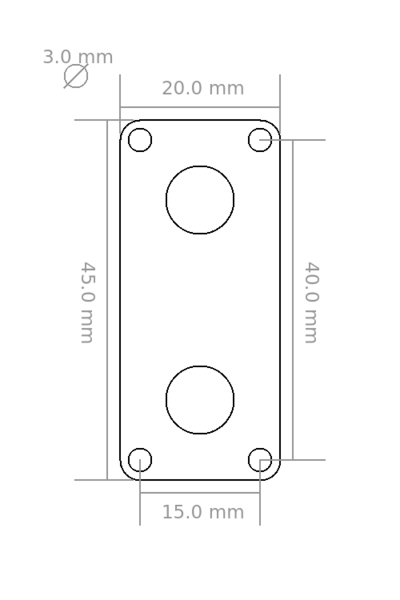

Dimensions (W x D x H) 45 x 20 x 10mm (1.77 x 0.79 x 0.39")
Weight 5.5g

Comes Packaged With
