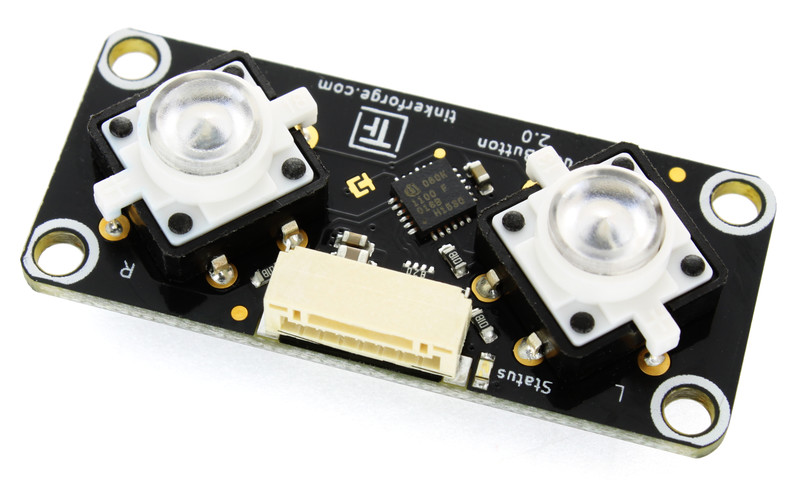

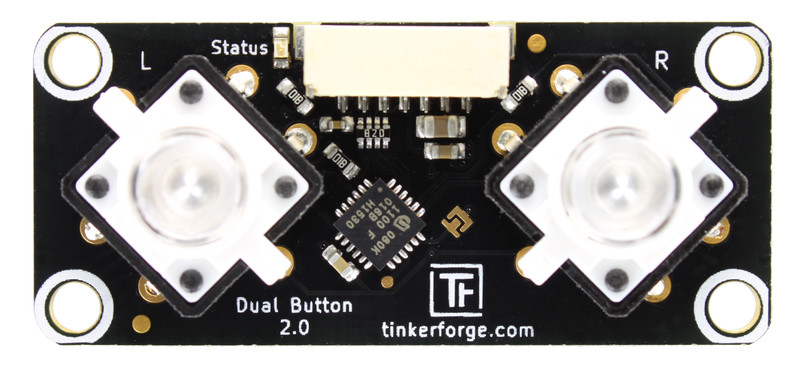

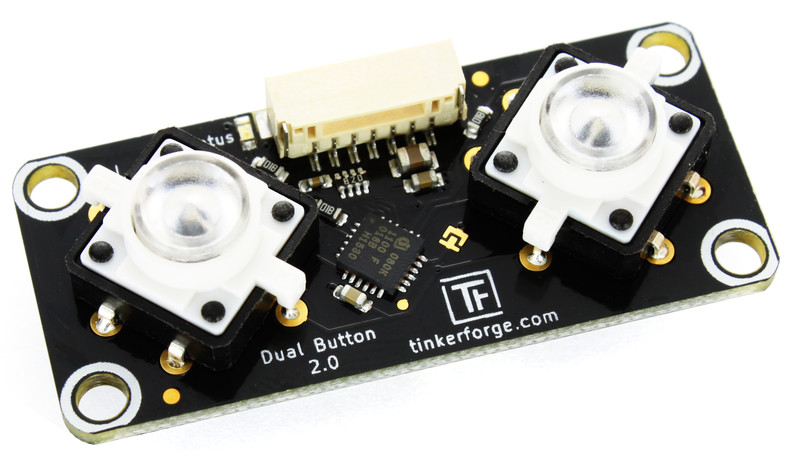

Dual Button Bricklet 2.0

Features

  • Two tactile buttons with built-in blue LEDs
  • LED auto-toggle possible

Description

The Dual Button Bricklet 2.0 is equipped with two buttons and can extend Bricks. Both buttons have a built-in blue LED. You can read the current state of the button (pressed/released) and of the LED (on/off). You can turn the LED on/off yourself or enable auto-toggle. In auto-toggle mode the LEDs are toggled between on/off with each button press.

It is also possible to use events. This allows to react to button presses without polling.

Technical Specifications

Property Value
Current Consumption 27mW (5.4mA at 5V) + 3mW per active LED

Button Type Tactile Button with LED
Button Operating Force 150gf
Button Travel Distance 2.5mm
LED Color Blue

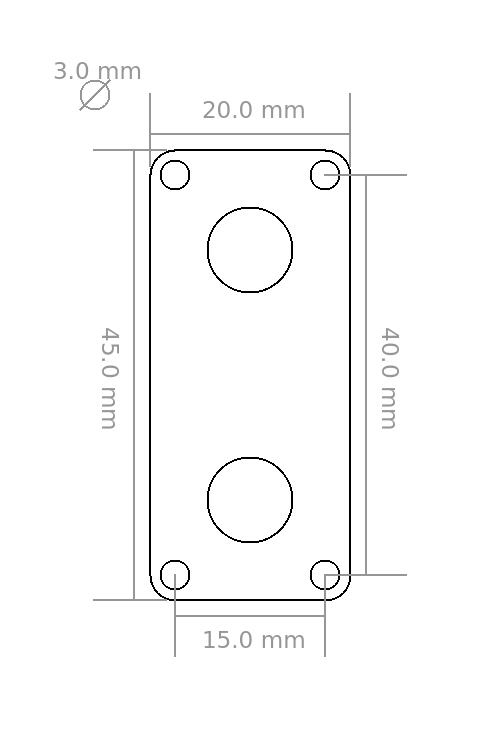

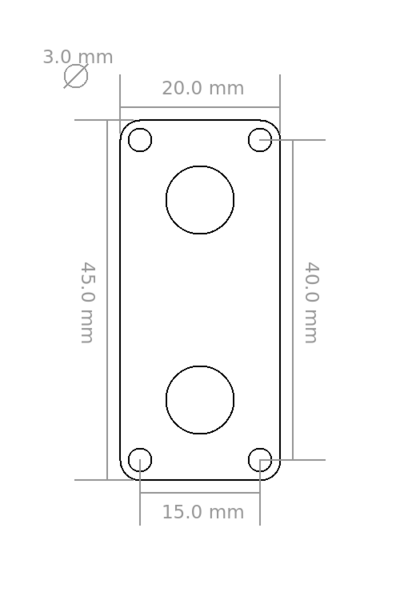

Dimensions (W x D x H) 45 x 20 x 10mm (1.77 x 0.79 x 0.39")
Weight 5.5g

Resources

Test your Dual Button Bricklet 2.0

To test a Dual Button Bricklet 2.0 you need to have Brick Daemon and Brick Viewer installed. Brick Daemon acts as a proxy between the USB interface of the Bricks and the API bindings. Brick Viewer connects to Brick Daemon. It helps to figure out basic information about the connected Bricks and Bricklets and allows to test them.

Connect the Dual Button Bricklet 2.0 to a Brick with a Bricklet Cable.

If you connect the Brick to the PC over USB, you should see a new tab named "Dual Button Bricklet 2.0" in the Brick Viewer after a moment. Select this tab. If everything went as expected you can now see button presses and change the state of the LED.

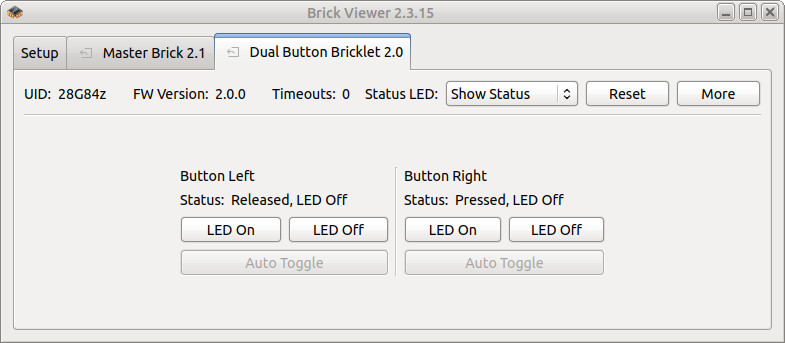

Dual Button Bricklet 2.0 in Brick Viewer

After this test you can go on with writing your own application. See the Programming Interface section for the API of the Dual Button Bricklet 2.0 and examples in different programming languages.

Case

A laser-cut case for the Dual Button Bricklet 2.0 is available.

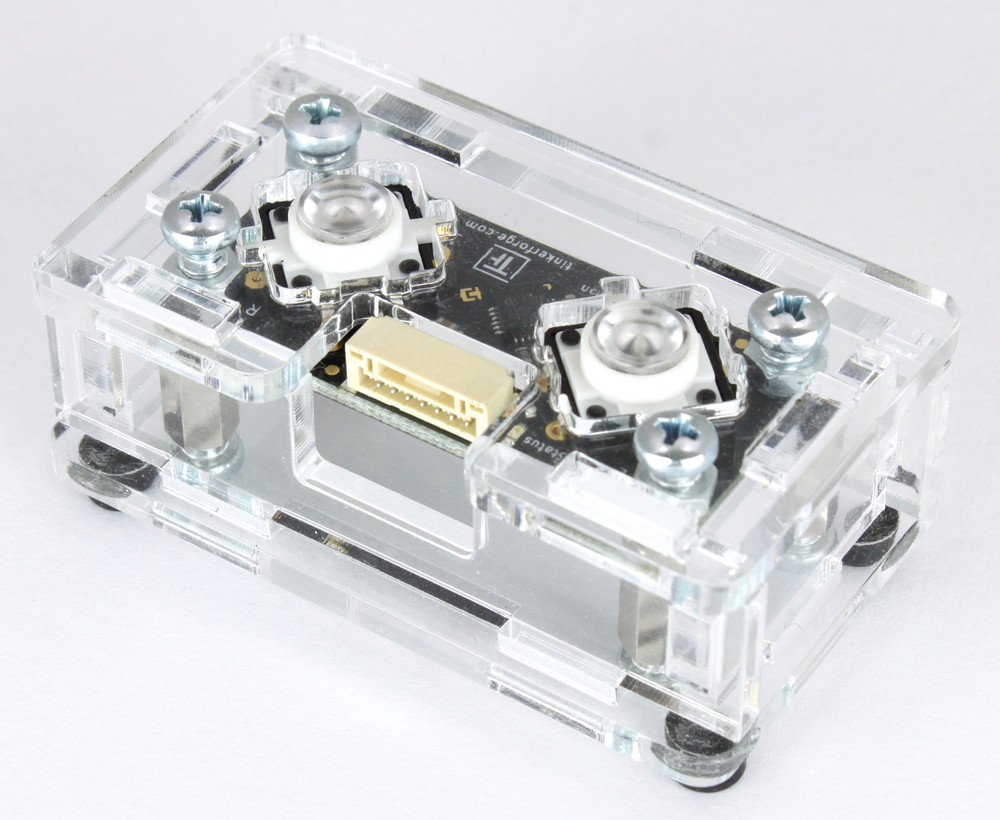

Case for Dual Button Bricklet 2.0

The assembly is easiest if you follow the following steps:

  • Screw spacers to the Bricklet,
  • screw bottom plate to bottom spacers,
  • build up side plates,
  • plug side plates into bottom plate and
  • screw top plate to top spacers.

Below you can see an exploded assembly drawing of the Dual Button Bricklet 2.0 case:

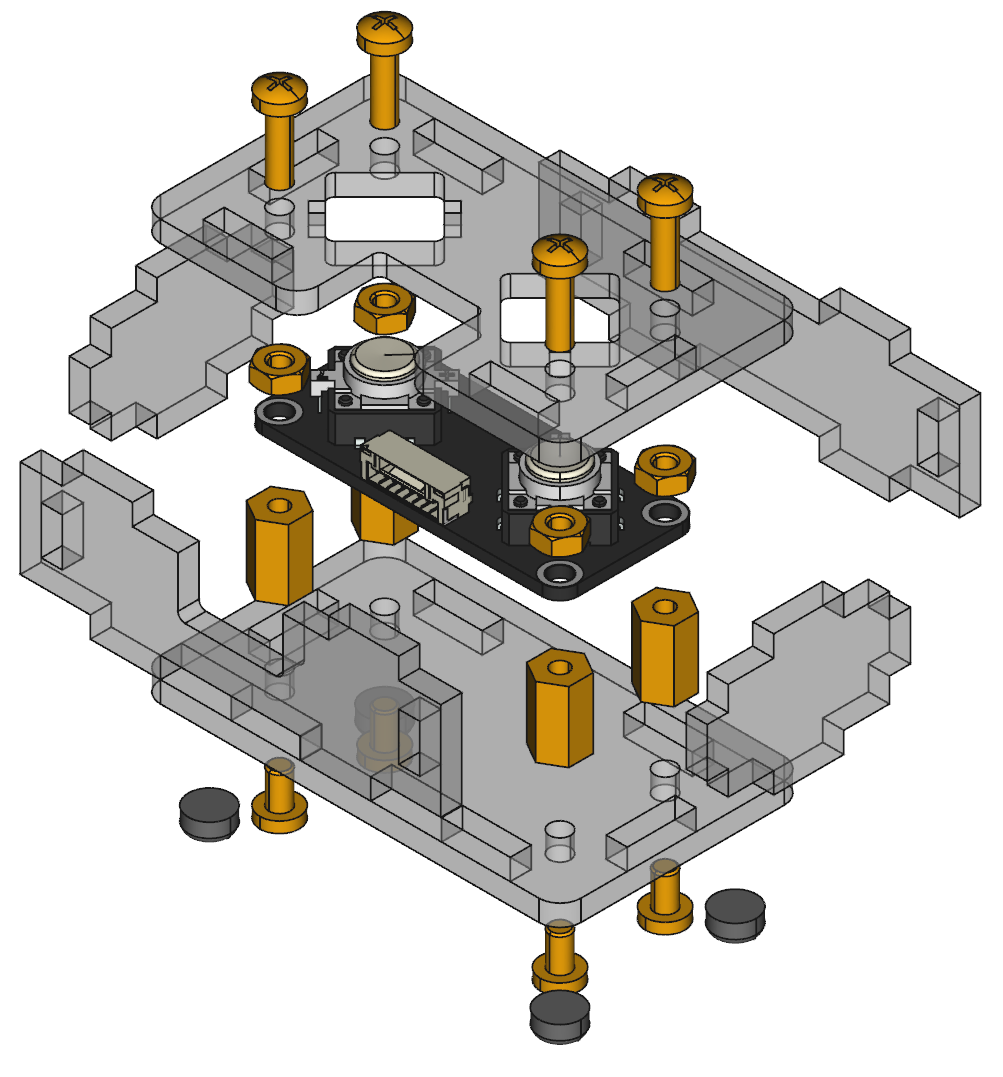

Exploded assembly drawing for Dual Button Bricklet 2.0

Hint: There is a protective film on both sides of the plates, you have to remove it before assembly.

Programming Interface

See Programming Interface for a detailed description.

Language API Examples Installation
C/C++ API Examples Installation
C/C++ for Microcontrollers API Examples Installation
C# API Examples Installation
Delphi/Lazarus API Examples Installation
Go API Examples Installation
Java API Examples Installation
JavaScript API Examples Installation
LabVIEW API Examples Installation
Mathematica API Examples Installation
MATLAB/Octave API Examples Installation
MQTT API Examples Installation
openHAB API Examples Installation
Perl API Examples Installation
PHP API Examples Installation
Python API Examples Installation
Ruby API Examples Installation
Rust API Examples Installation
Shell API Examples Installation
Visual Basic .NET API Examples Installation
TCP/IP API
Modbus API
