GPS Bricklet 3.0


Incl. 19% Tax, excl. Shipping Cost

Availability: In stock

  • Supports GPS, GLONASS and Galileo simultaneously
  • Receives movement-, position-, altitude, time data and PPS signal
  • Elevation, azimuth and SNR for each GPS/GLONASS/Galileo satellite accessible
  • 99 channels, 10Hz update rate
  • High sensitivity and accuracy, interference canceller
GPS Bricklet 3.0   +€44.99

* Required Fields

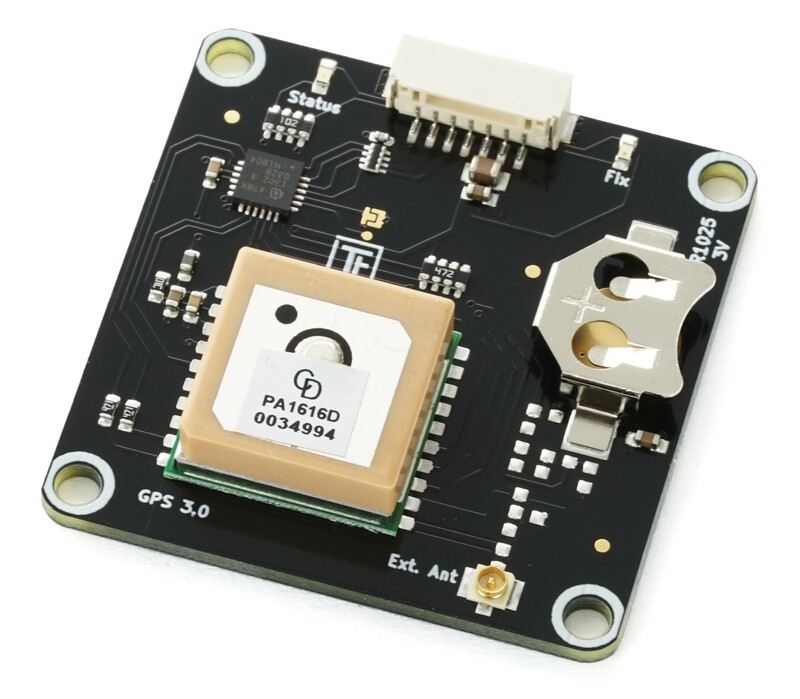

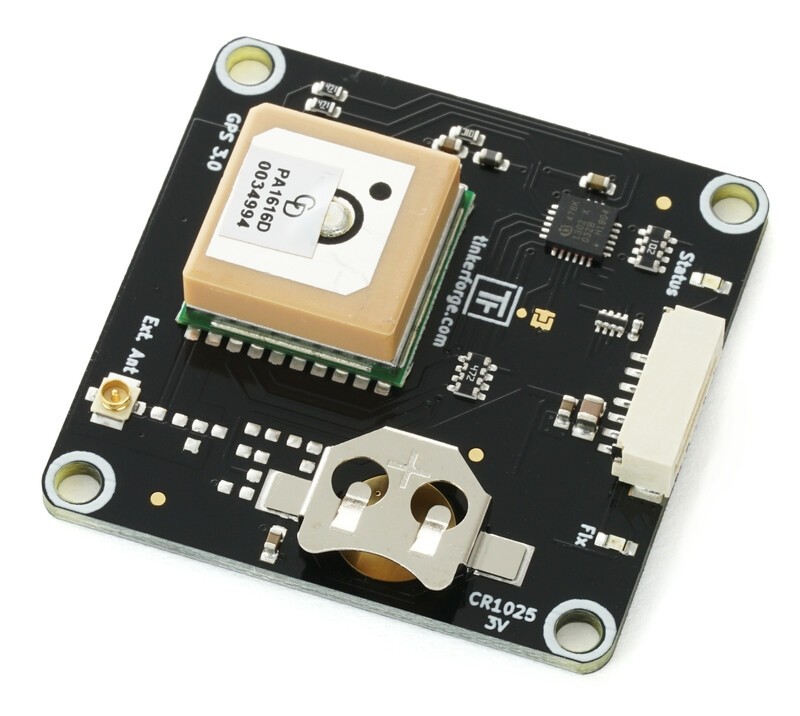

The GPS Bricklet 3.0 can be used to extend Bricks by the possibility to determine their position via GPS. Additionally it is possible to receive movement (direction and velocity), altitude (altitude and geodial separation), as well as high precise time/date information and PPS signal.

Current values for elevation, azimuth and SNR for each of the GPS, GLONASS and Galileo satellites can be read out.

The GPS module is optimized to get a fast fix, has a high input sensitivity (-165dBm) and a update rate of 10Hz suitable for drones or the like. Internal interference canceller rejects RF interference from other devices like Bluetooth or Wi-Fi.

The Bricklet hast an internal antenna. Through a U.FL connector you can also connect an external antenna.

A CR1025 coin cell battery is also included. It is used as a battery backup for the last satellite position data. With this information a fix can be obtained faster if the power was lost.

Technical Specifications

GPS Module Chipset CDTop PA1616D
Sensitivity -148dBm (Acquisition), -165dBm (Tracking)*
Position Accuracy 3.0m (50% CEP)*
Time to first Fix < 35s (without battery), < 1s (with battery)*
Update Rate 10Hz
Dimensions (W x D x H) 40 x 40 x 12mm (1.57 x 1.57 x 0.47”)
Weight 20g (with battery)
Current Consumption 73mA

* Datasheet values

Comes Packaged With

  • GPS Bricklet 3.0
  • CR1025 Coin Cell
  • Chosen Bricklet Cable
  • Chosen Mounting Kit
