Industrial Digital In 4 Bricklet 2.0

Industrial Digital In 4 Bricklet 2.0

€0.00

Incl. 19% Tax, excl. Shipping Cost

Availability: In stock

  • 4 channel digital input
  • Input voltages up to 36V (DC)
  • Galvanically isolated
Industrial Digital In 4 Bricklet 2.0   +€14.99

* Required Fields

Description

Details

The Industrial Digital In 4 Bricklet 2.0 can be used to extend Bricks by four galvanically isolated digital inputs. The input voltage can be up to 36 volts (DC).

Input isolation permits the usage without a direct electrical connection, such that ground loops can be prevented and an additional degree of safety is added.

Typical applications are the interfacing of industrial controllers, such as PLC's or frequency converters, or the usage in environments were electrical ground levels can not be connected.

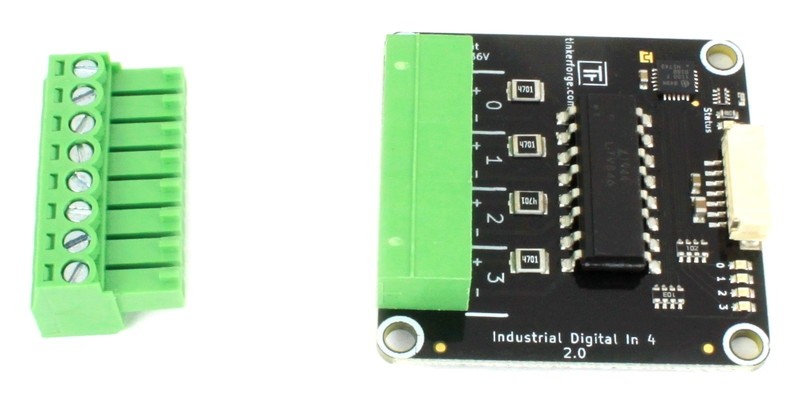

The Industrial Digital In 4 Bricklet 2.0 has a 7 pole Bricklet connector and is connected to a Brick with a 7p-10p Bricklet cable.

Technical Specifications

PropertyValue
Current Consumption 28mw (5.6mA at 5V)

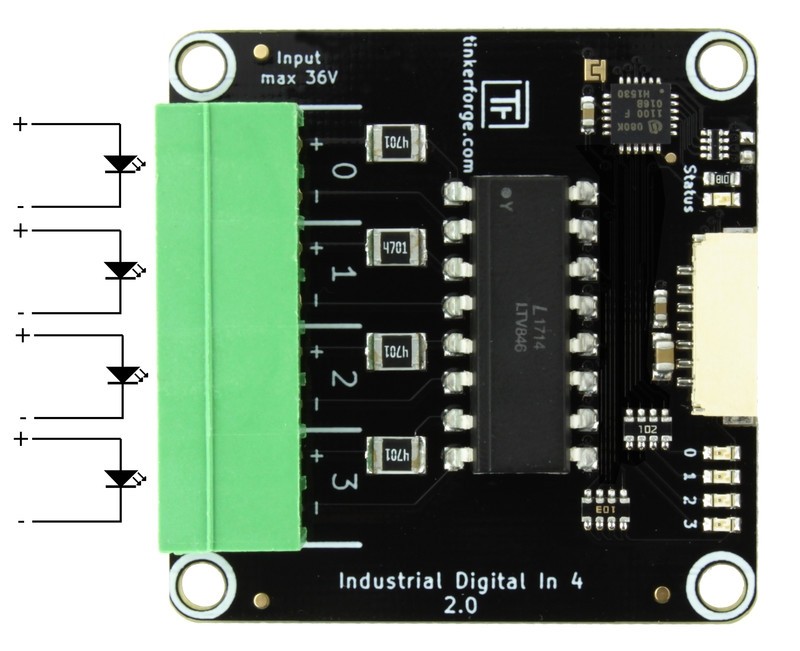

Input Type Four optocoupled inputs (including 4.7kΩ series resistor)
Input Current Depending on input voltage, ca. 1mA/5V, ca. 5mA/24V
Maximum Input Voltage 36V (DC)
Low Level Voltage 0-2V
High Level Voltage 3-36V
Isolation 5000Vrms (optocoupler value)

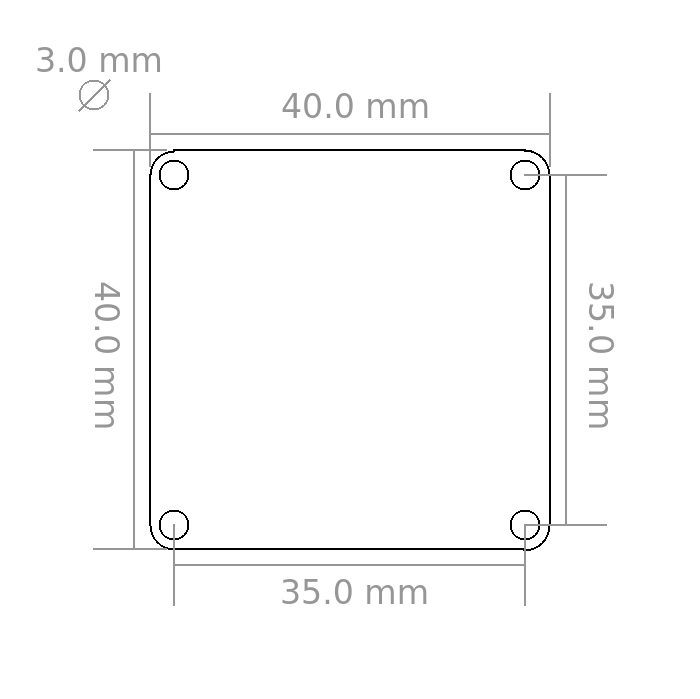

Dimensions (W x D x H) 40 x 40 x 11mm (1.57 x 1.57 x 0.43")
Weight 8.6g

Comes Packaged With
