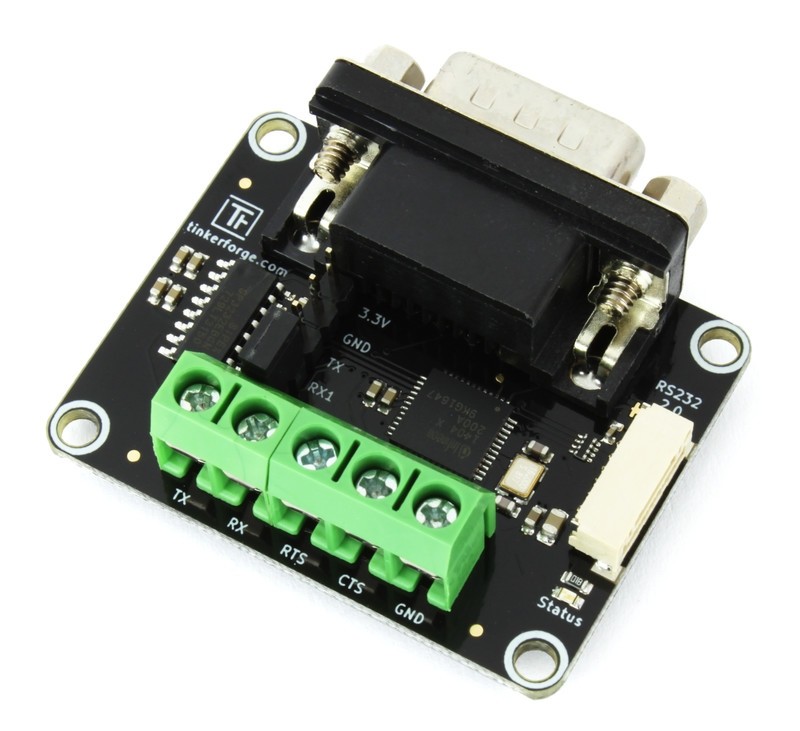

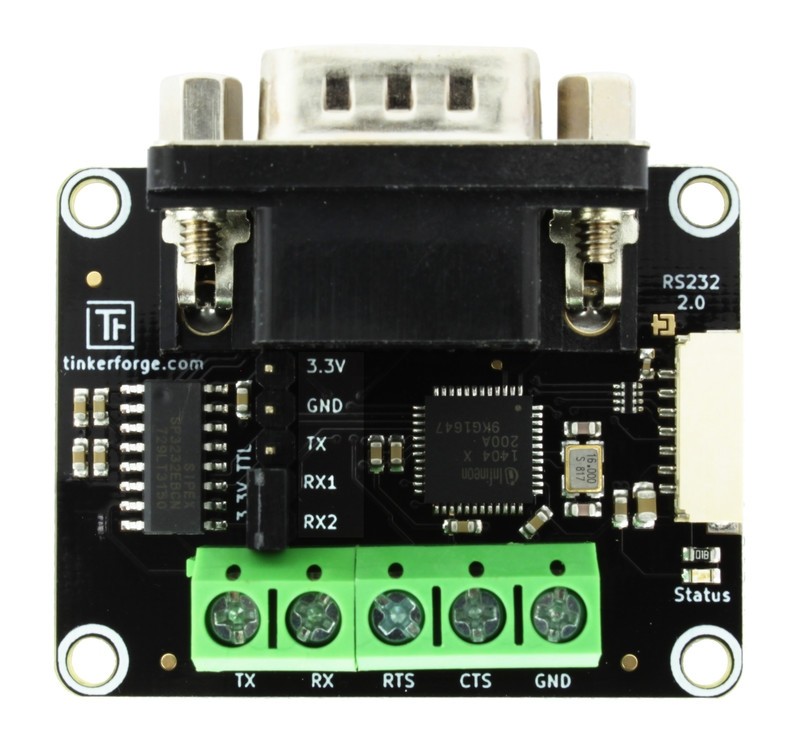

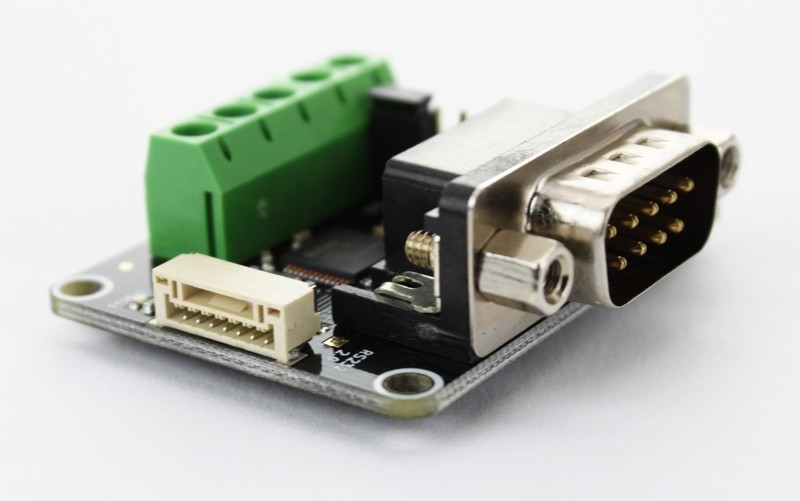

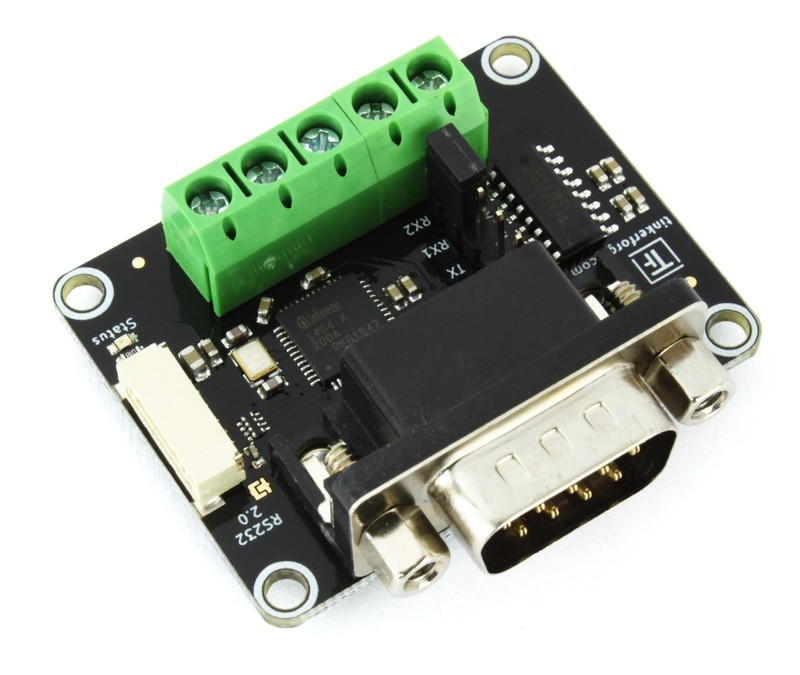

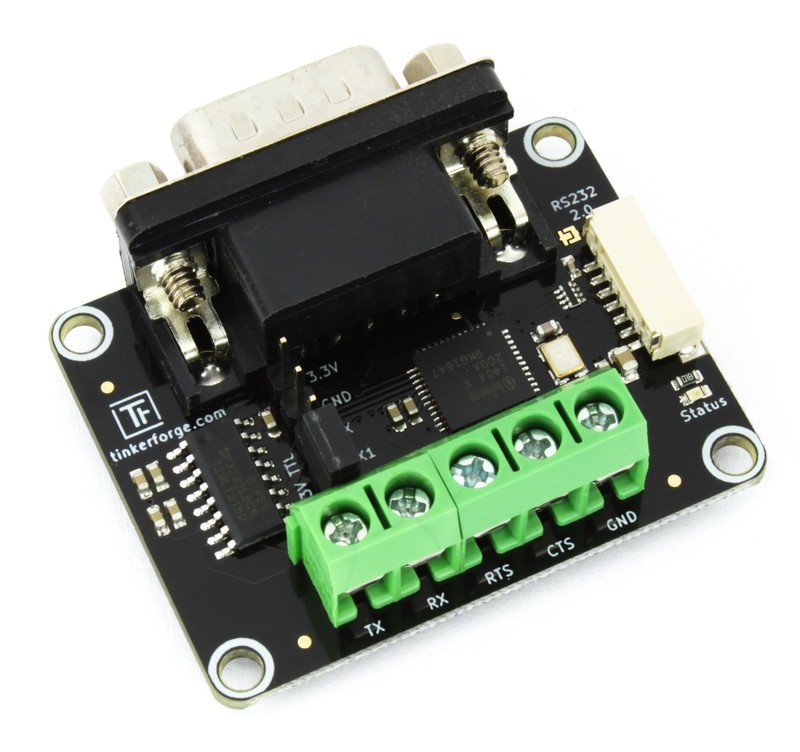

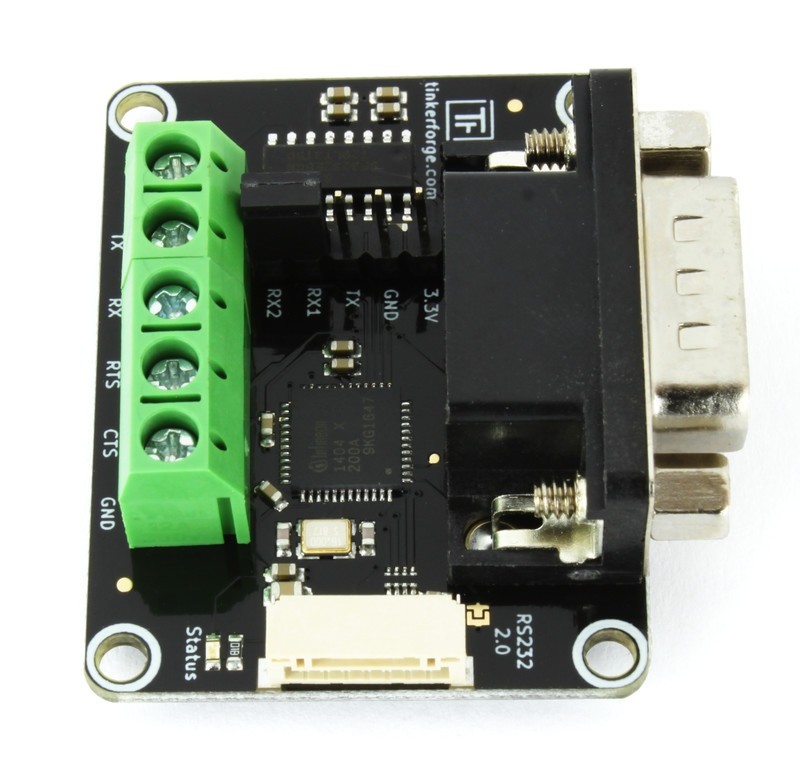

RS232 Bricklet 2.0

RS232 Bricklet 2.0

€0.00

Incl. 19% Tax, excl. Shipping Cost

Availability: Out of stock

  • Sends and receives serial data
  • Provides RS-232 and UART-TTL interface
  • Configurable baudrate, parity, stop bits, word length and flow control
RS232 Bricklet 2.0   +€19.99

* Required Fields

Description

Details

The RS232 Bricklet 2.0 can be used to extend the features of Bricks by the capability to send and receive serial data with RS-232 3.3V TTL signal level to communicate with other serial devices.

This Bricklet ist not galvanically isolated to the Tinkerforge system. This means that there is a direct electrical connection between the terminals of the Bricklet and the rest of the system. Dependent of the application this can lead to undesired connections, ground loops or short circuits. These problems can be prevented by using the Bricklet together with a Isolator Bricklet.

The RS232 Bricklet 2.0 has a 7 pole Bricklet connector and is connected to a Brick with a 7p-10p Bricklet cable.

Technical Specifications

PropertyValue
Current Consumption 47mW (9.4mA at 5V, idle)

Baudrate 100 - 2000000baud
Parity none / odd / even
Stop bits 1 / 2
Word length 5 / 6 / 7 / 8
Flow control Software / Hardware / none

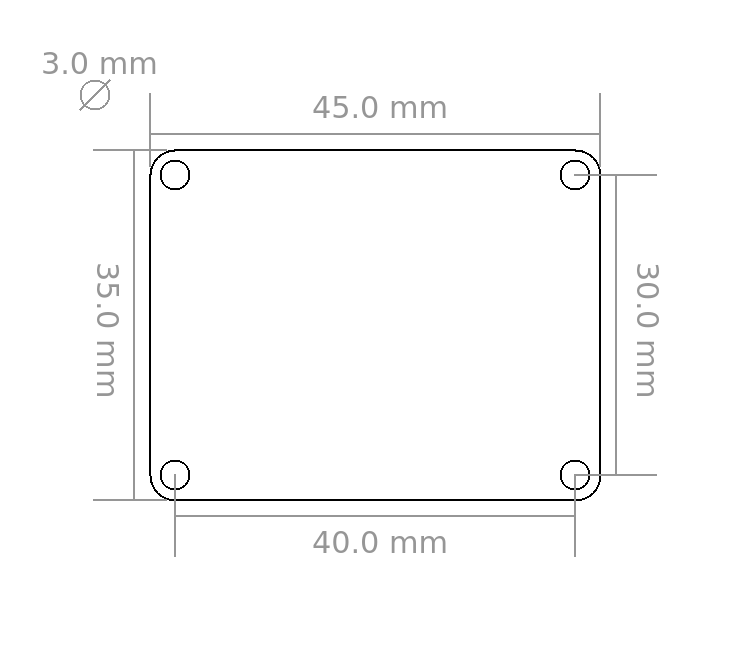

Dimensions (W x D x H) 45 x 35 x 17mm (1.77 x 1.38 x 0.67")
Weight 20g
