Isolator Bricklet

More Views

Isolator Bricklet

€0.00

Incl. 19% Tax, excl. Shipping Cost

Availability: In stock

  • Galvanically isolates the power and data lines
  • Can be used between any Brick and any Bricklet with a 7 pole connector
Isolator Bricklet   +€19.99

* Required Fields

Description

Details

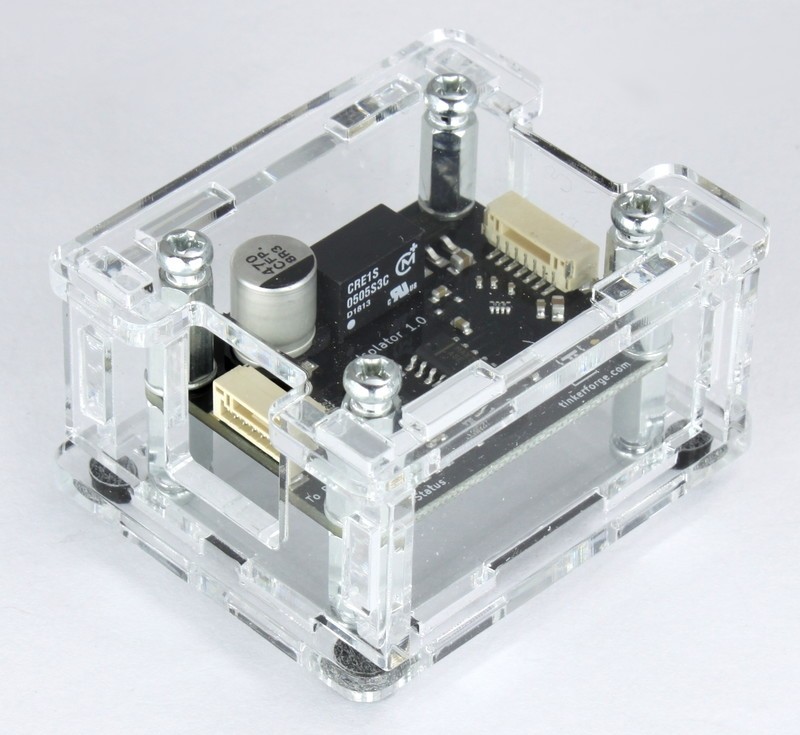

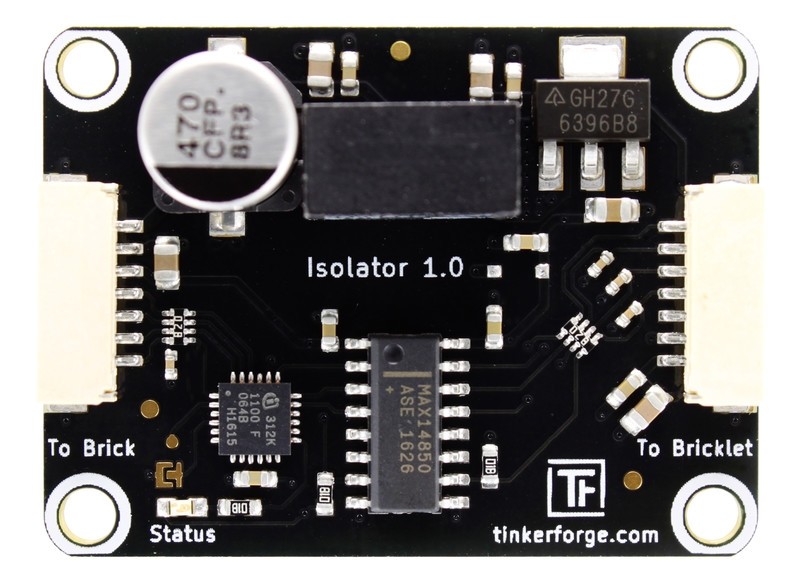

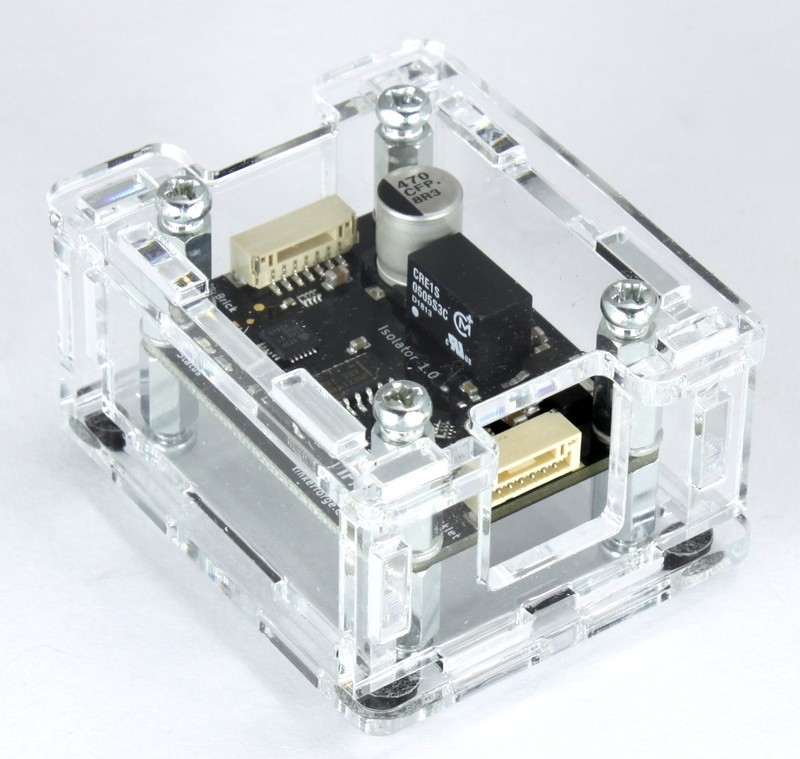

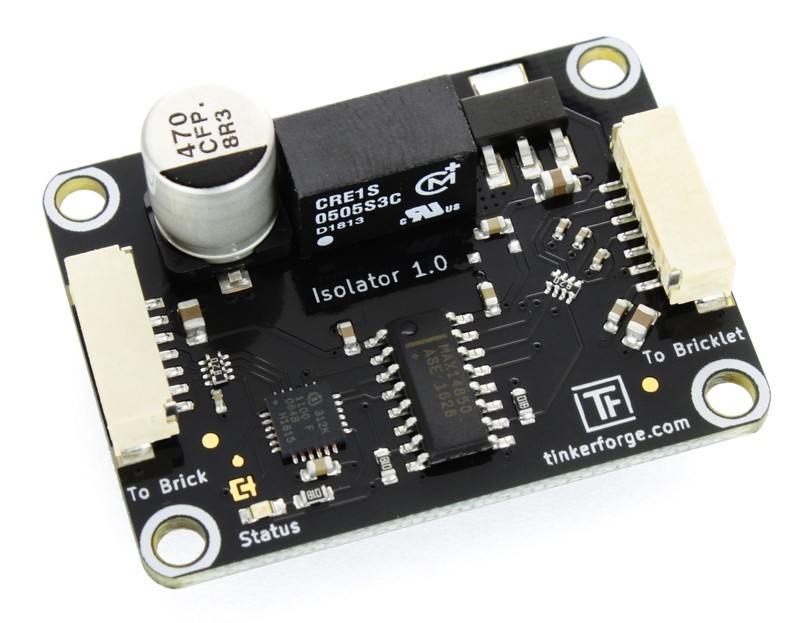

The Isolator Bricklet can galvanically isolate the power and data lines between any Brick and any Bricklet with a 7 pole connector.

Any Bricklet that does analog/digital input/output may benefit from galvanic isolation, for example:

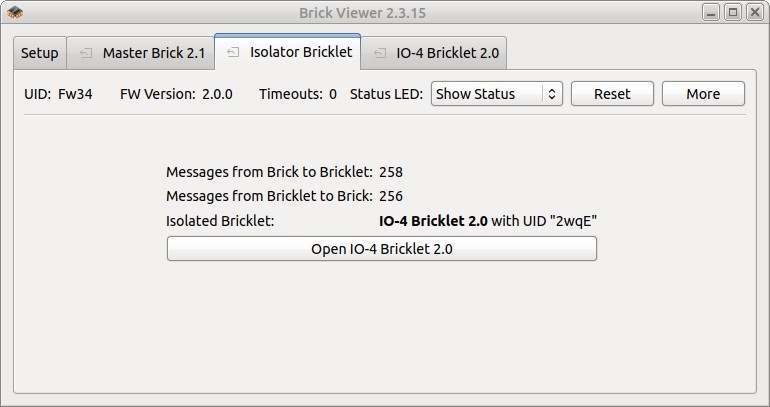

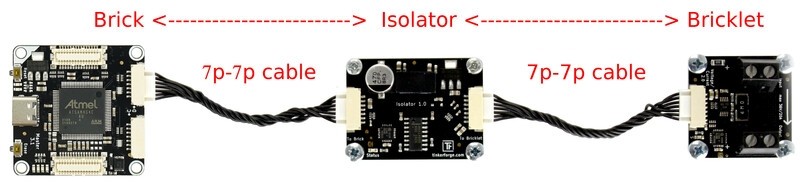

The Isolator Bricklet has two 7 pole Bricklet connectors. It is connected to a Brick with a 7p-10p Bricklet cable on one side and to a Bricklet with a 7p-7p Bricklet cable on the other side.

Technical Specifications

PropertyValue
Current Consumption 280mW (56mA at 5V)

Isolation Voltage Power Supply 3kV (1s), 60V (continuous)*
Isolation Voltage Data 2.5kV (ESD), 600V (60s), 200V (continuous)*

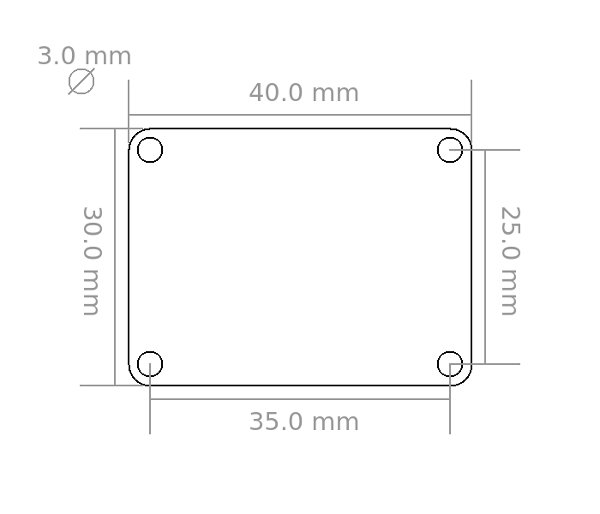

Dimensions (W x D x H) 30 x 40 x 15 (1.18 x 1.58 x 0.59")
Weight 7.1g

* See datasheet of MAX14850 for details of data isolation and of CRE1S0505S3C for details of power isolation.
