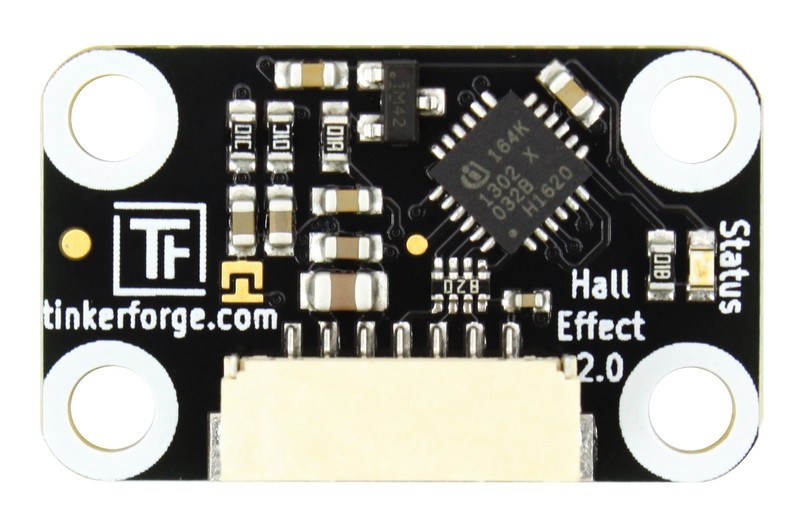

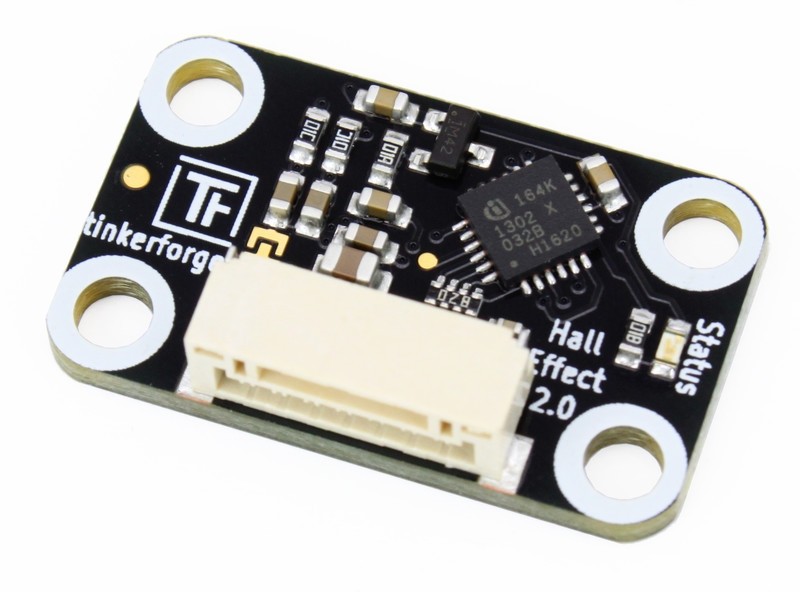

The Hall Effect Bricklet extends Bricks and can magnetic flux density (magnetic induction) from -7mT to 7mT (milli Tesla). It can count the (dis-)appearances of magnetic fields and can for example be used to measure the speed of a wheel with attached magnet with a frequency of up to 10kHz.

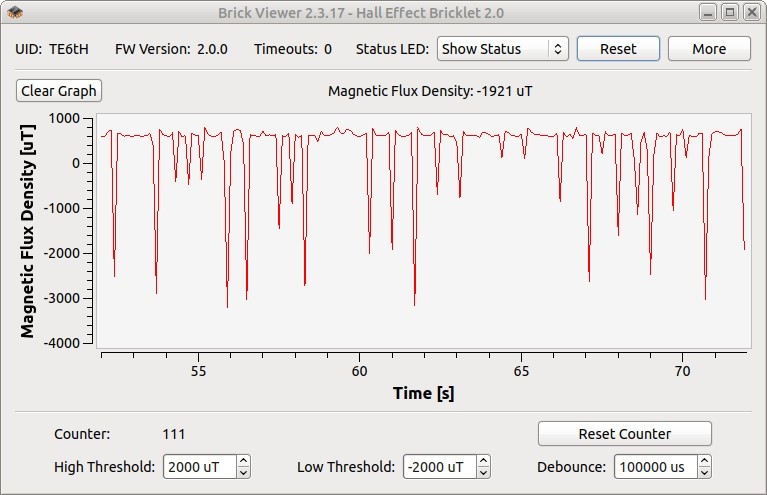

The low/high threshold for the counter as well as a debounce time can be configured and adjusted to a specific application.
Example applications are:
- Detect if a door is open or closed
- Reading out water/electricity meters
- Counting RPM of motors
Property Value Sensor DRV5053 Current Consumption 59mW (11.8mA at 5V) Operation Omnipolar (North and South pole is detected) Detection Range -7mT to 7mT Counter Trigger Point Configurable (unipolar and bipolar) Counter Sampling Rate 10kHz Dimensions (W x D x H) 25 x 15 x 5mm (0.98 x 0.59 x 0.19") Weight 2g
Comes Packaged With
- Hall Effect Bricklet 2.0
- Chosen Bricklet Cable
- Chosen Mounting Kit
