RGB LED Bricklet 2.0

More Views

RGB LED Bricklet 2.0

€0.00

Incl. 19% Tax, excl. Shipping Cost

Availability: In stock

  • 1x RGB LED
  • 24 bit color resolution
  • Luminance output is corrected for human light perception (CIE 1931)
RGB LED Bricklet 2.0   +€7.99

* Required Fields

Description

Details

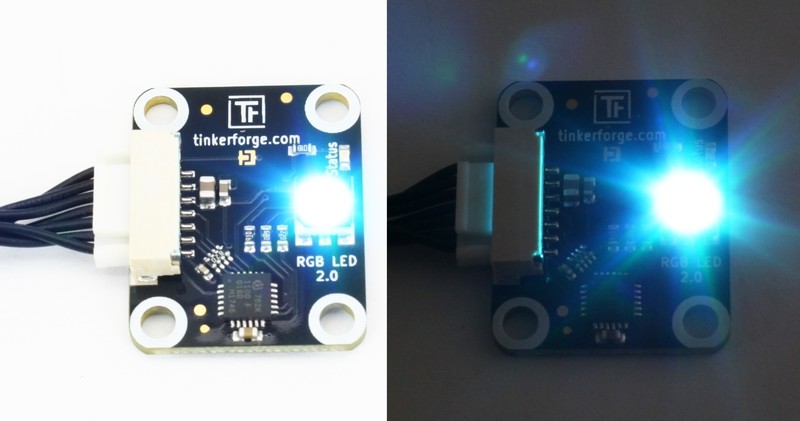

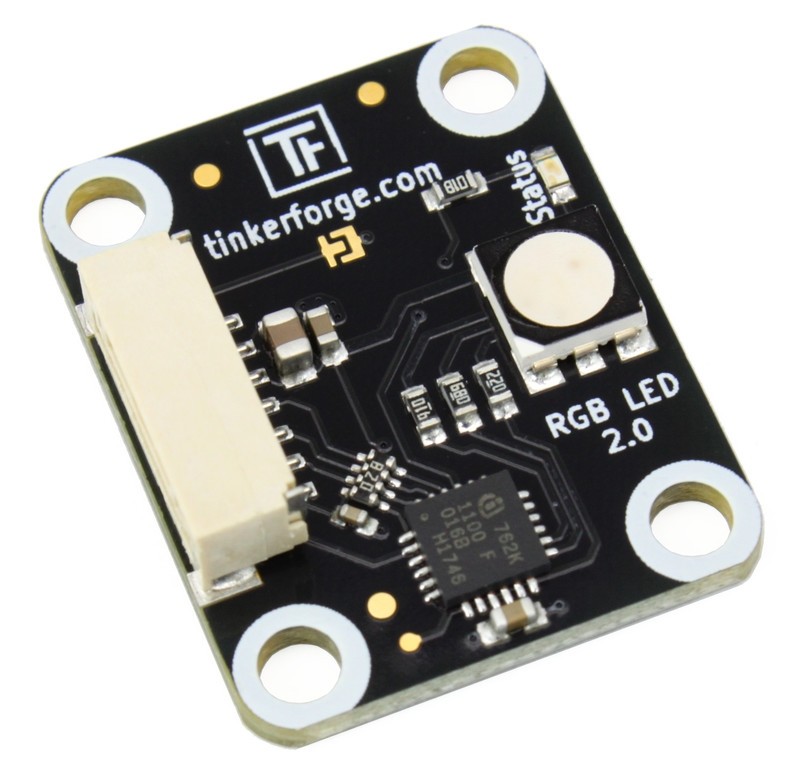

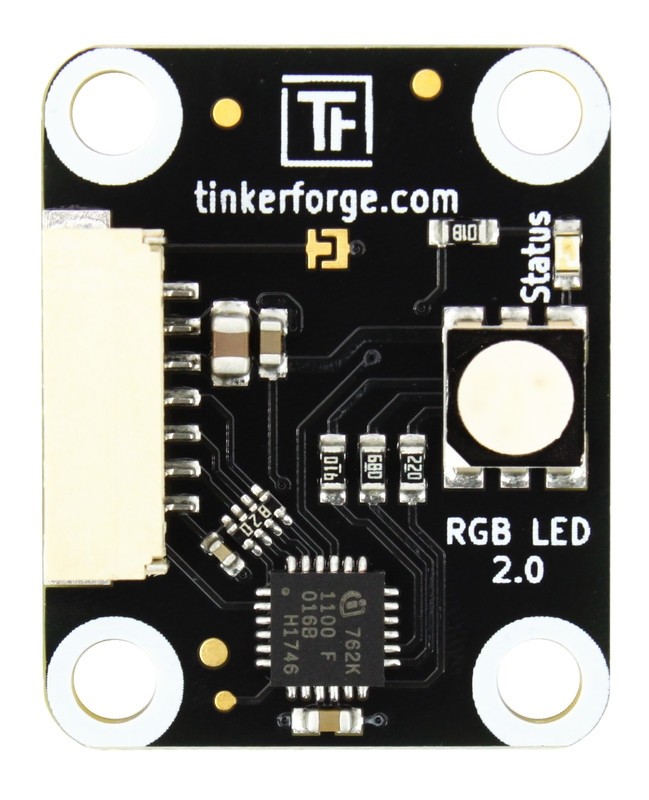

The RGB LED Bricklet 2.0 can be used to extend the features of Bricks with the capability to control a RGB LED. Each of the three channels (red, green, blue) can be controlled individually with 8 bit resolution.

The luminance output of the LED is corrected for human light perception with accordance to CIE 1931. This means that for every color a fade from off to full brightness (value 0 to 255) will appear to be a smooth color gradient to the human eye.

The RGB LED Bricklet 2.0 has a 7 pole Bricklet connector and is connected to a Brick with a 7p-10p Bricklet cable.

Technical Specifications

PropertyValue
LED QBLP679E-RGB
Current Consumption
Off: 35mW (7mA at 5V)
White: 180mW (36mA at 5V)

Luminous intensity (R, G, B) 400-630mcd, 1000-1500mcd, 200-285mcd

Dimensions (W x D x H) 25 x 20 x 5mm (0.98 x 0.79 x 0.19")
Weight 3g

Comes Packaged With

  • RGB LED Bricklet 2.0
  • Chosen Bricklet Cable
  • Chosen Mounting Kit
