This Bricklet is deprecated. Is has been replaced by the Industrial Dual 0-20mA Bricklet 2.0. It is currently sold off with a large discount, but only as long as stock lasts.

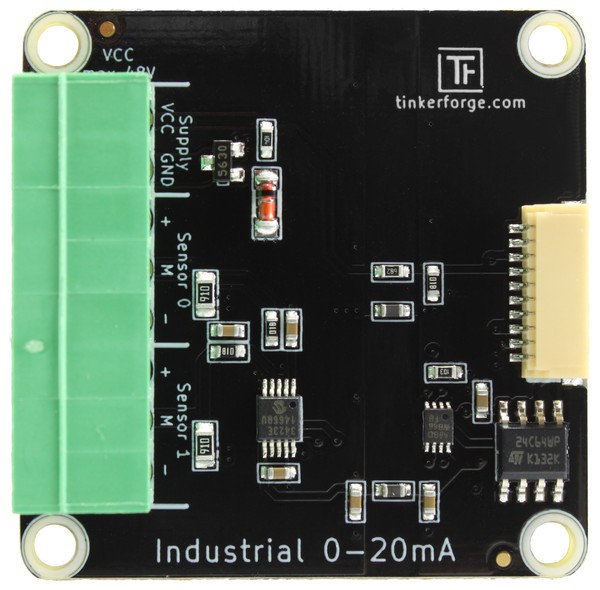

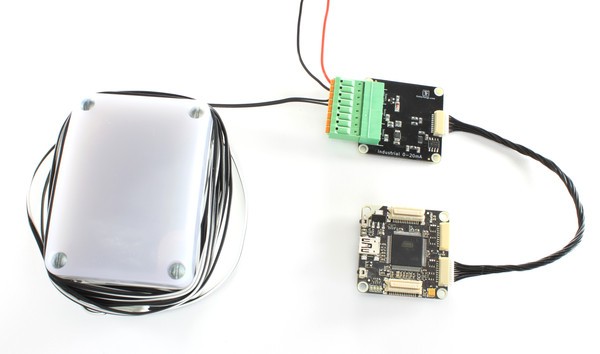

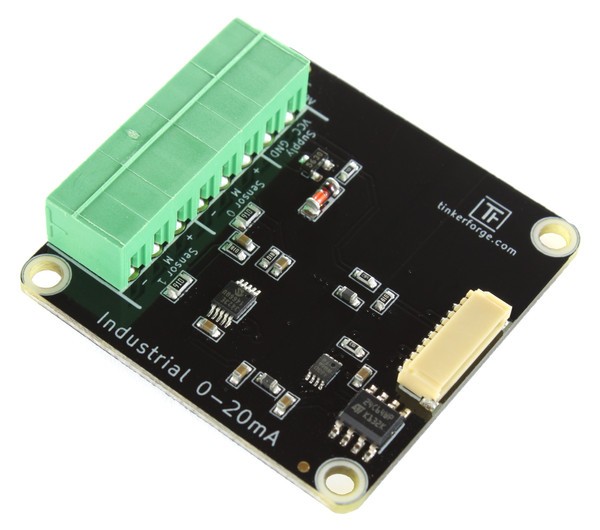

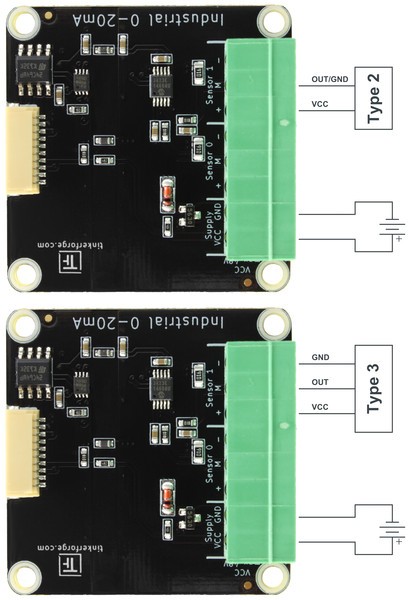

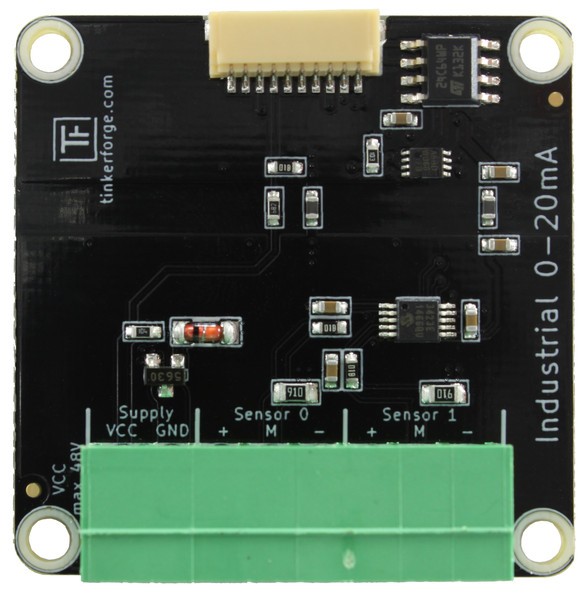

This Bricklet can be used to read out up to two IEC 60381-1 type 2 and type 3 sensor.
The measured current can be read out in nA. With configurable events it is possible to react on changing currents without polling.
Property Value Sensor MCP3423 Current Consumption 1mA Measurement Range 0mA - 22.5mA Supported Sensors IEC 60381-1 type 2 and type 3 Accuracy 0.15% with 40ppm/°C Resolution up to 0.172µA (18bit) Sample Rate up to 240 samples per second Dimensions (W x D x H) 40 x 40 x 11mm (1.57 x 1.57 x 0.43”) Weight 8g
Comes Packaged With
