This Bricklet is deprecated. Is has been replaced by the IO-16 Bricklet 2.0. It is currently sold off with a large discount, but only as long as stock lasts.

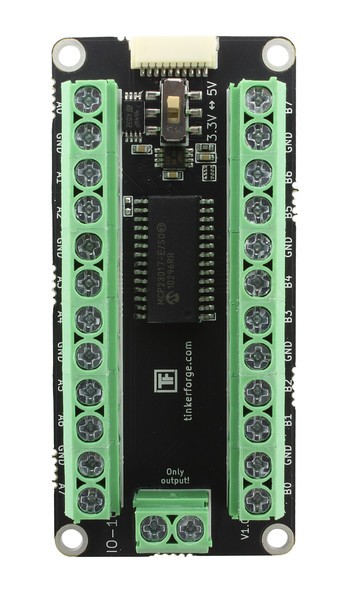

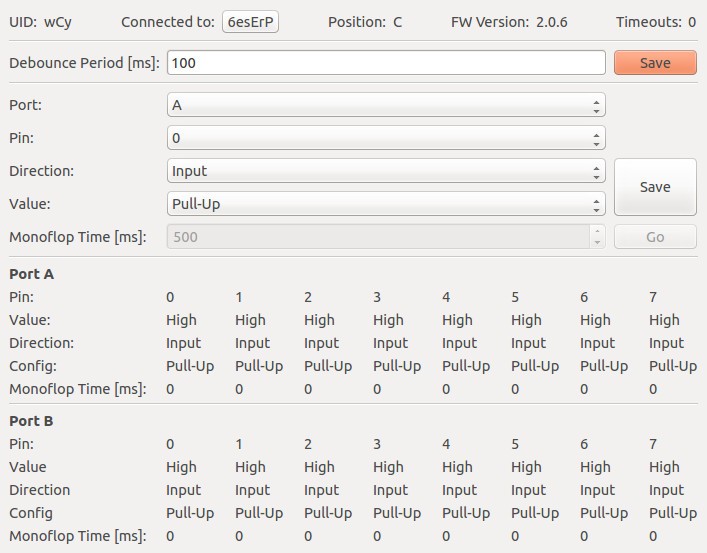

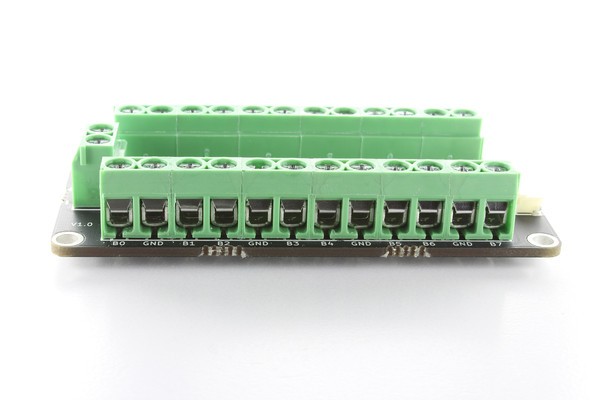

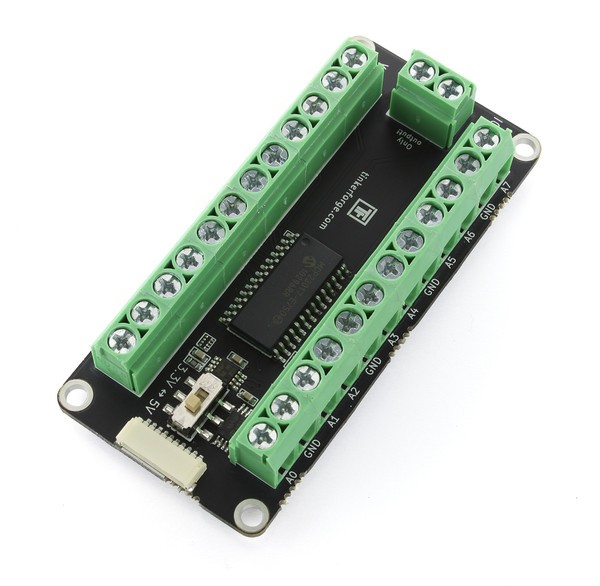

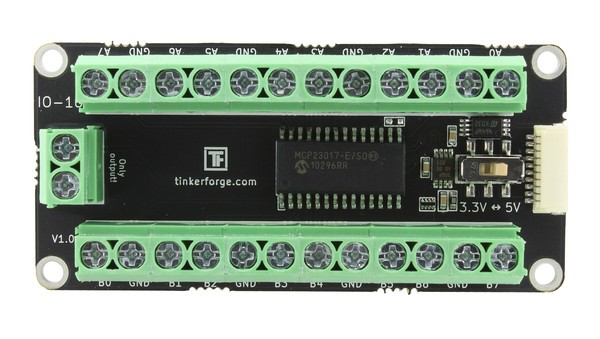

The Bricklet features 2x 8 I/O pins that can be independently configured as digital inputs or outputs. Each input pin can additionally be configured with a pull-up or as interrupt source. The input/output voltages can be switched manually between 3.3V and 5V*. Via terminal blocks all signals and GND can be accessed. An additional terminal block delivers the switched output voltage.

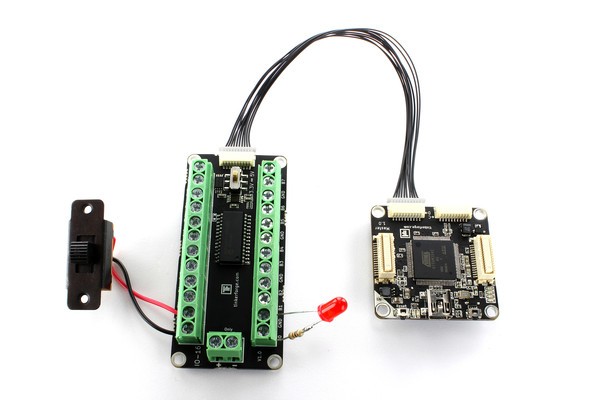

Human interfaces, such as switches, push-buttons and LEDs are typical applications of this Bricklet.

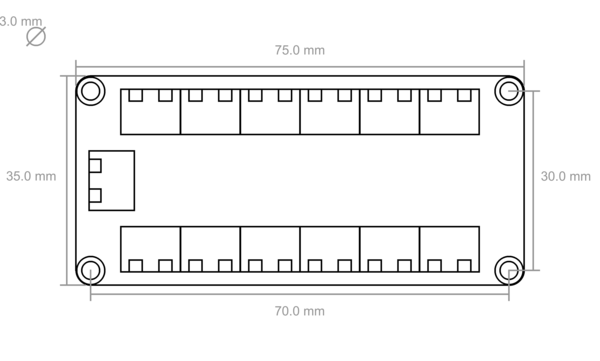

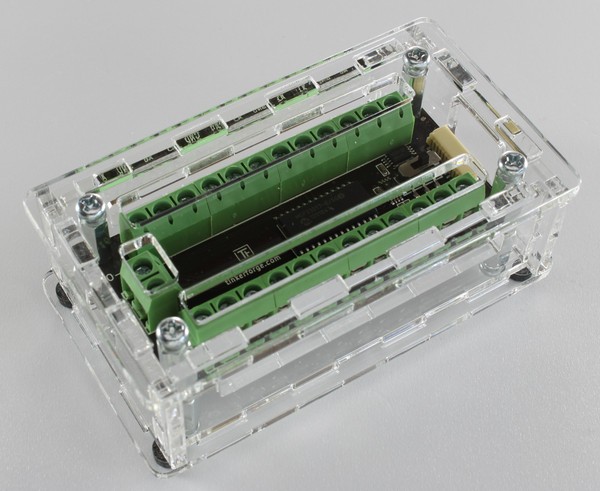

Property Value I/O Pins 16 Current Consumption 1mA I/O Voltages Switchable between 3.3V and 5V* Maximum Output Current 20mA (per output pin), 125mA (total) Maximum API Calls** set-port (1kHz), get-port (> 0.25kHz), callbacks (1kHz) Dimensions (W x D x H) 35 x 75 x 14mm (1.38 x 2.95 x 0.55”) Weight 30g
* The maximum output voltage depends on the supply voltage. If the connected Brick is powered over USB, 5V may not be reached. The reason for this is a voltage drop about 0.5V caused by protection diodes on our products. If you need to reach 5V, you have to use a stack supply, e.g. the Step-Down Power Supply.
** depends on your system (OS, CPU etc.)
