The XMC1400 Breakout Bricklet is a breakout board for the XMC1400 microcontroller from Infineon in the Bricklet form factor.
It can be used as a basis for prototypes of new Bricklets.

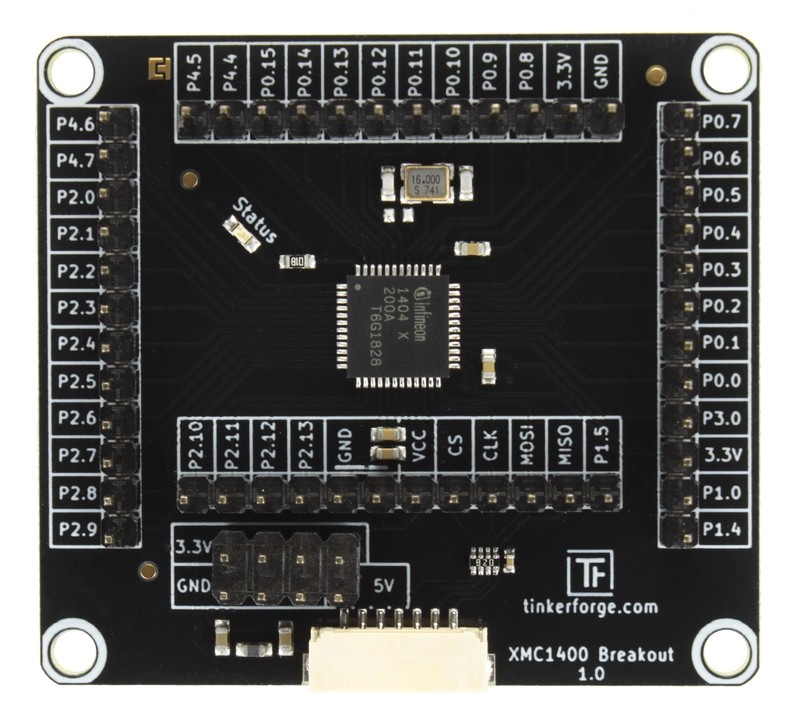

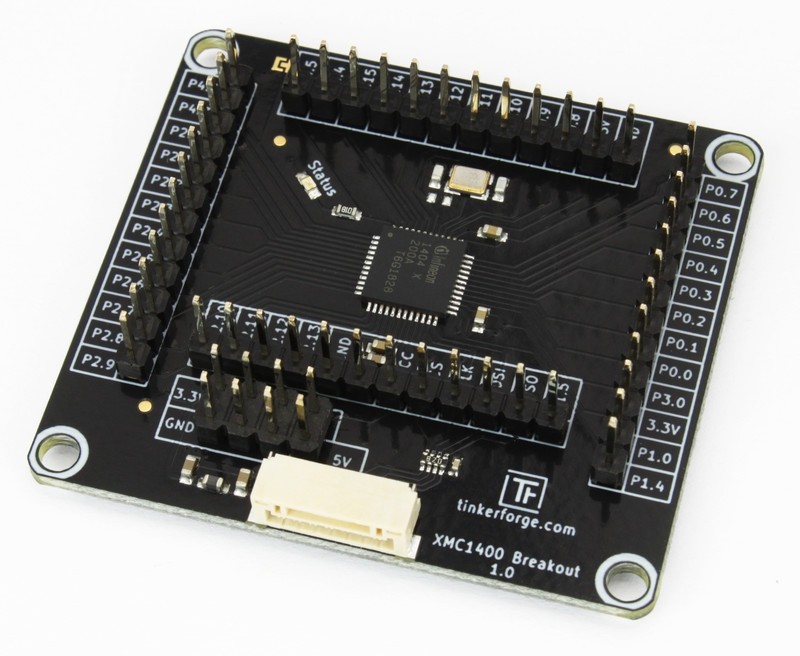

It has the standard Bricklet connector, a status LED, a 16Mhz crystal and a boot pad. The bootloader as well as an example firmware is already flashed. All available pins are routed out and can be accessed through a pin header.
If you want to develop your own Bricklet, you can use the XMC1400 Breakout Bricklet to get started without having to develop your own custom hardware first.
Property Value Current Consumption 55mW (11mA at 5V) Number of available IOs 42 Dimensions (W x D x H) 50 x 45 x 15mm (1.97 x 1.77 x 0.59") Weight 12g
Comes Packaged With
- Breakout Bricklet
- Chosen Bricklet Cable
- Chosen Mounting Kit
