XMC1400 Breakout Bricklet

Features

  • Bricklet development board
  • Usable for development of own Bricklets

Description

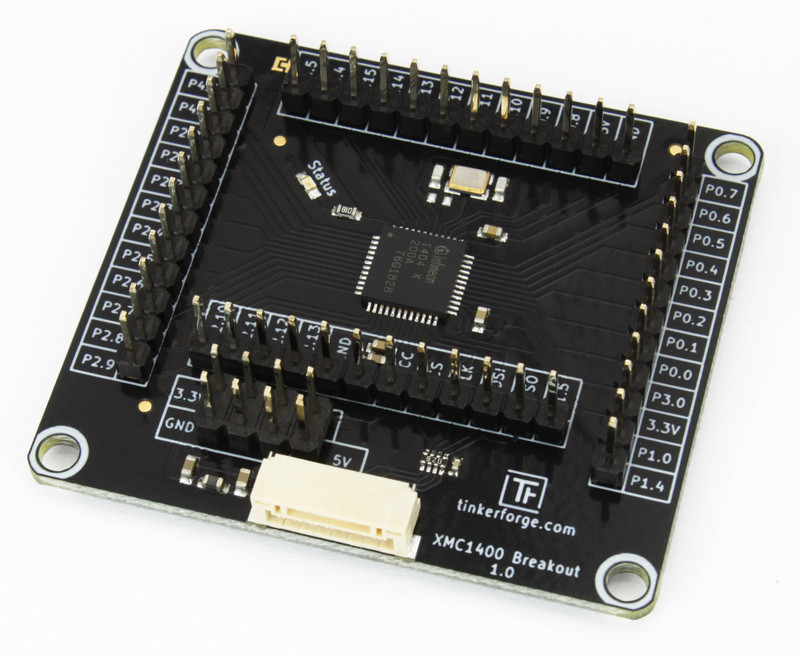

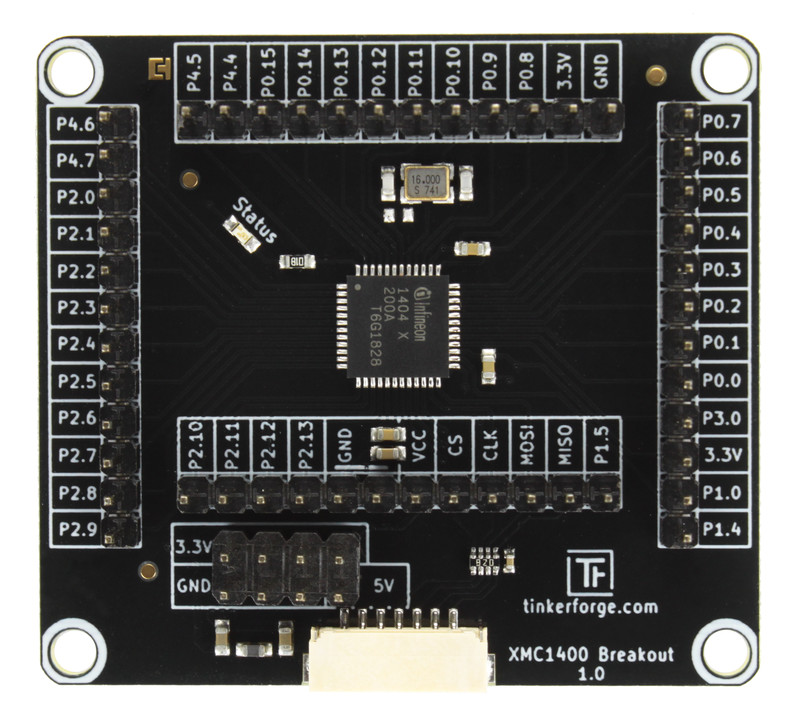

The XMC1400 Breakout Bricklet is a breakout board for the XMC1400 microcontroller from Infineon in the Bricklet form factor.

It can be used as a basis for prototypes of new Bricklets.

It has the standard Bricklet connector, a status LED, a 16Mhz crystal and a boot pad. The bootloader as well as an example firmware is already flashed. All available pins are routed out and can be accessed through a pin header.

If you want to develop your own Bricklet, you can use the XMC1400 Breakout Bricklet to get started without having to develop your own custom hardware first.

The XMC1400 Breakout Bricklet has a 7 pole Bricklet connector and is connected to a Brick with a 7p-10p Bricklet cable.

Technical Specifications

Property Value
Current Consumption 55mW (11mA at 5V)

Number of available IOs 42

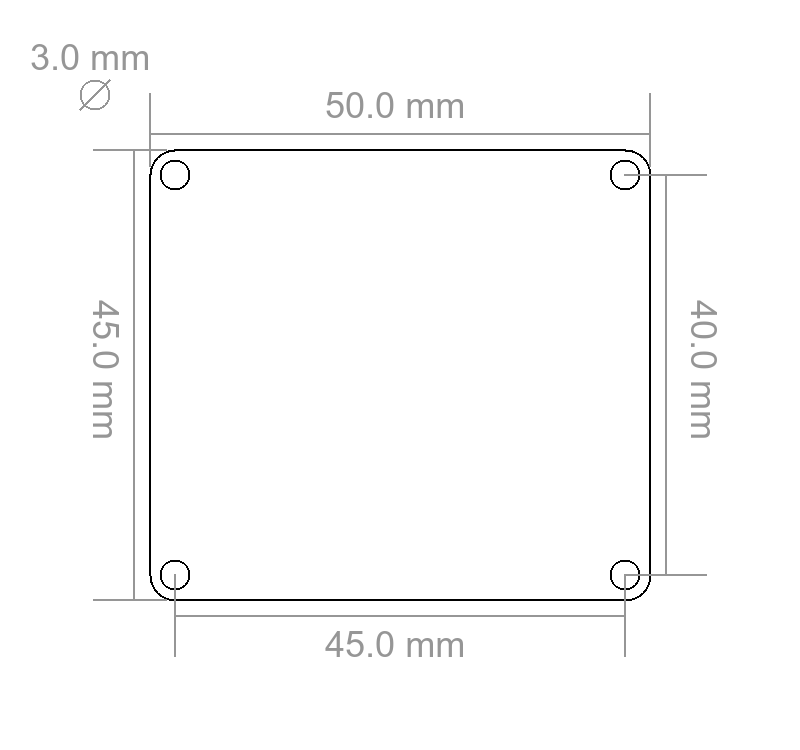

Dimensions (W x D x H) 50 x 45 x 15mm (1.97 x 1.77 x 0.59")
Weight 12g

Resources

Test your XMC1400 Breakout Bricklet

To test a XMC1400 Breakout Bricklet you need to have Brick Daemon and Brick Viewer installed. Brick Daemon acts as a proxy between the USB interface of the Bricks and the API bindings. Brick Viewer connects to Brick Daemon. It helps to figure out basic information about the connected Bricks and Bricklets and allows to test them.

Connect the XMC1400 Breakout Bricklet to a Brick with a Bricklet Cable.

If you connect the Brick to the PC over USB, you should see a new tab named "XMC1400 Breakout Bricklet" in the Brick Viewer after a moment. Select this tab. If everything went as expected you can now see the example brickviewer plugin.

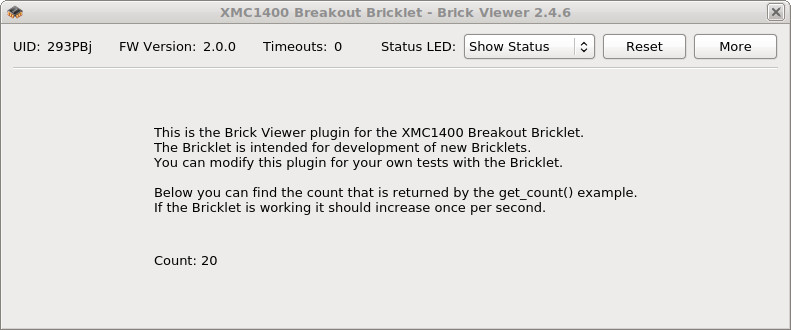

XMC1400 Breakout Bricklet in Brick Viewer

After this test you can go on with writing your own application. See the Programming Interface section for the API of the XMC1400 Breakout Bricklet and examples in different programming languages.

Tutorial: Add Getter Function

Note

This tutorial is unfortunately not yet ready. It is on our TODO list. If you are interested in it write us an email to info@tinkerforge.com, so we know that there is a demand for it.

We plan to write a tutorial that goes through the whole process of adding functions to the API, implementing them in the firmware and adding a GUI element for it in Brick Viewer through the following steps:

  • Add getter function to generator
  • Generate/copy stubs
  • Implement functionality of stub in firmware
  • Generate bindings
  • Write program with new bindings that uses new getter
  • Add GUI element to Brick Viewer that uses new getter

Programming Interface

See Programming Interface for a detailed description.

Language API Examples Installation
C/C++ API Examples Installation
C# API Examples Installation
Delphi/Lazarus API Examples Installation
Go API Examples Installation
Java API Examples Installation
JavaScript API Examples Installation
LabVIEW API Examples Installation
Mathematica API Examples Installation
MATLAB/Octave API Examples Installation
MQTT API Examples Installation
Perl API Examples Installation
PHP API Examples Installation
Python API Examples Installation
Ruby API Examples Installation
Rust API Examples Installation
Shell API Examples Installation
Visual Basic .NET API Examples Installation
TCP/IP API
Modbus API
