Hall Effect Bricklet

More Views

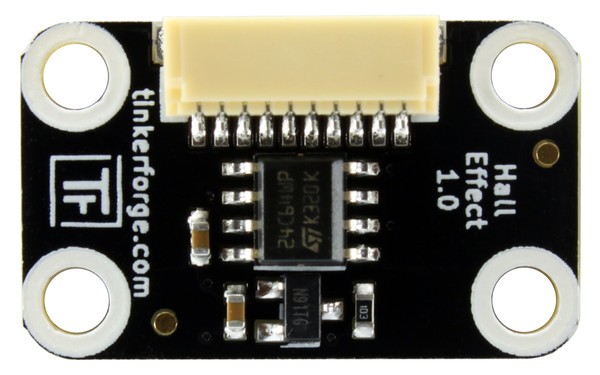

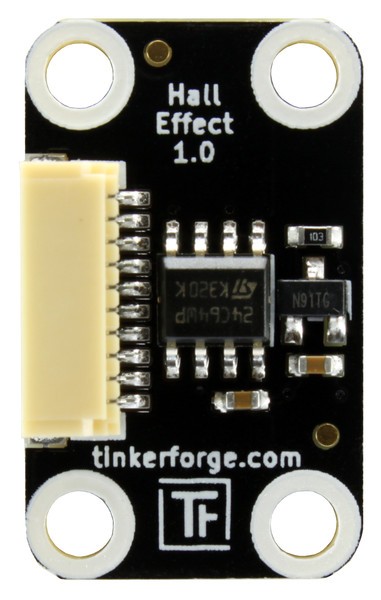

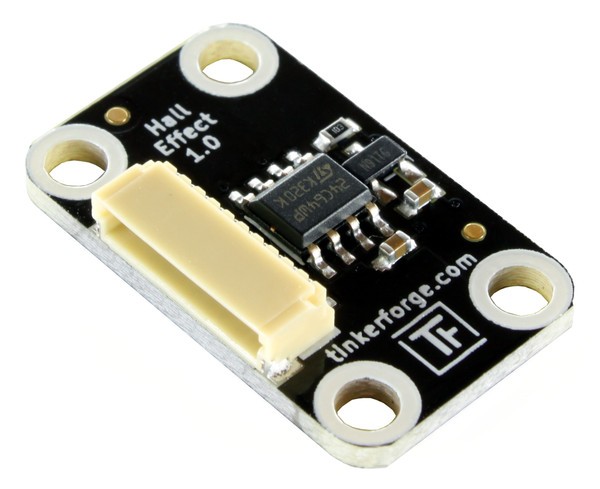

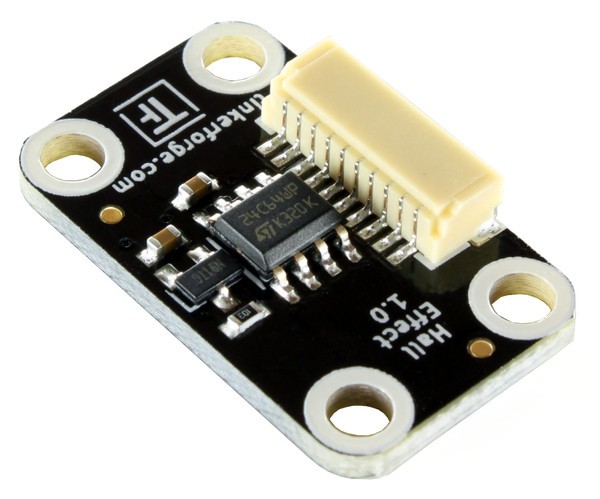

Hall Effect Bricklet

€0.00

Incl. 19% Tax, excl. Shipping Cost

Availability: In stock

  • Detects presence of magnetic field
  • Counts (dis-)appearances of magnetic fields
  • Can be used to read out water/electricity meter
Hall Effect Bricklet   +€7.99

* Required Fields

Description

Details

The Hall Effect Bricklet extends Bricks and can detect the presence of magnetic fields. It counts the (dis-)appearances of magnetic fields and can for example be used to measure the speed of a wheel with attached magnet with up to 13Hz.

Example applications are:

  • Detect if a door is open or closed
  • Reading out water/electricity meters

Technical Specifications

PropertyValue
Sensor AH180N
Current Consumption 1mA

Operation Omnipolar (North and South pole is detected)
Trigger Point -35/35 Gauss
Release Point -25/25 Gauss
Sampling Rate 8Hz

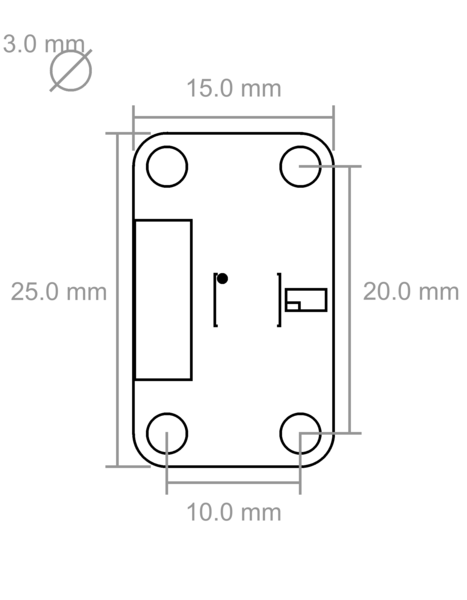

Dimensions (W x D x H) 25 x 15 x 5mm (0.98 x 0.59 x 0.19")
Weight 2g

Comes Packaged With

  • Hall Effect Bricklet
  • Chosen Bricklet Cable
  • Chosen Mounting Kit
